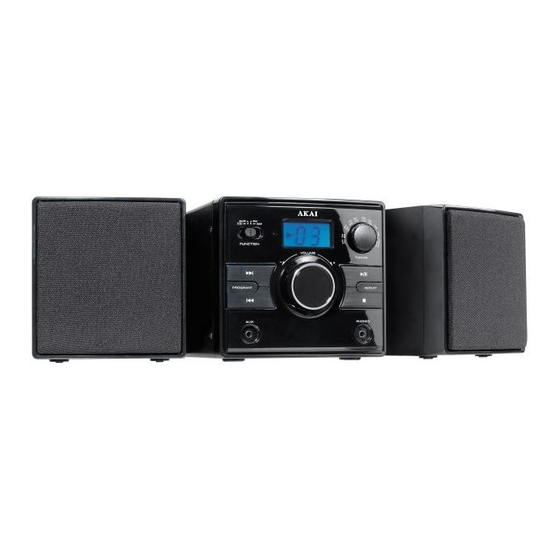

- Page 1 Microset: Radio/CD player ALD1915H QXA6630 User manual Gebruiksaanwijzing NL 15 Manuel de l’utilisateur FR 28 Manual de instrucciones ES 41 Gebrauchsanleitung DE 54 Οδηγίες χρήσεως EL 67 Brugsanvisning DA 80...
-
Page 2: Table Of Contents
Table of contents Safety ................3 Intended use ..............3 Labels in this manual ............3 General safety instructions ..........3 Preparations for use ........... 4 Unpacking ................4 Package contents ............4 Installation ..............4 Installing the speakers .............5 Remote control..............6 Functions ..............7 Front panel ...............7 Remote control..............8 Operation .............. -
Page 3: Safety
QXA6630 Safety Intended use The Micro Music System plays music from CD and radio. Read the manual carefully before first use. Labels in this manual WARNING A warning means that injury or death is possible if the instructions are not obeyed. -
Page 4: Preparations For Use
Preparations for use Unpacking ● Unpack the appliance carefully. ● Check the package contents as described below. If any item is missing, please contact your reseller. ● Remove the labels from the front panel carefully if present. We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. -
Page 5: Installing The Speakers
QXA6630 CAUTION ● Do not put the appliance near a heat source. ● Do not expose the appliance to direct sunlight. This appliance is equipped with rubber feet to prevent it from moving. The feet are made from non-migrating material specially formulated to avoid leaving any marks or stains on furniture. -
Page 6: Remote Control
Remote control Install batteries ● Remove the battery cover. ● Insert the batteries matching the (+) and (-) polarity markings. ● Re-install the battery cover. CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will... -
Page 7: Functions
QXA6630 Functions Front panel FUNCTION switch NEXT button PROGRAM button PREV button AUX IN jack VOLUME dial Headphone jack �/� STOP button PROGRAM REP E A T REPEAT button 10 PLAY/PAUSE button 11 TUNING dial 12 Display 13 Remote control sensor... -
Page 8: Remote Control
Remote control 17 PROGRAM button 18 PLAY/PAUSE button 19 PREV button 20 REPEAT button 21 STOP button 22 NEXT button Operation Master power switch The appliance is equipped with a master power switch (16) located at the back panel. ● Set the switch into the ON position prior to taking the appliance into operation. -
Page 9: General Functions
QXA6630 General functions ● To switch on the appliance, slide the switch (16) to the ON position. To switch off the appliance, slide the switch (16) to the OFF position. ● To select the source mode (CD, AUX IN, AM, FM), slide the FUNCTION switch (1) to the desired position. -
Page 10: Using The Program Function
● To pause playback, press the PLAY/PAUSE button (10) once. To resume playback, press the PLAY/PAUSE button (10) again. ● To stop playback, press the STOP button (8). The CD functions can also be operated with the remote control. Using the REPEAT function ●... -
Page 11: Cleaning And Maintenance
QXA6630 Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. ● Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. -
Page 12: Troubleshooting
Troubleshooting Trouble Action No display Switch on the appliance. Connect the appliance properly. Select the correct function with the FUNCTION switch (1). No sound Connect the appliance properly. Adjust the volume. Adjust tuning control. Check if the CD is inserted with the label upwards. Clean the lens. -
Page 13: Technical Data
QXA6630 Technical data Parameter Value Voltage 230 V ~ 50 Hz Power consumption 15 W Max power output 2 x 1.0 W RMS Headphones output impedance 32 Ω Disc size 5"/3" Radio bands AM/FM Dimensions (W x H x D) -
Page 14: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu...
