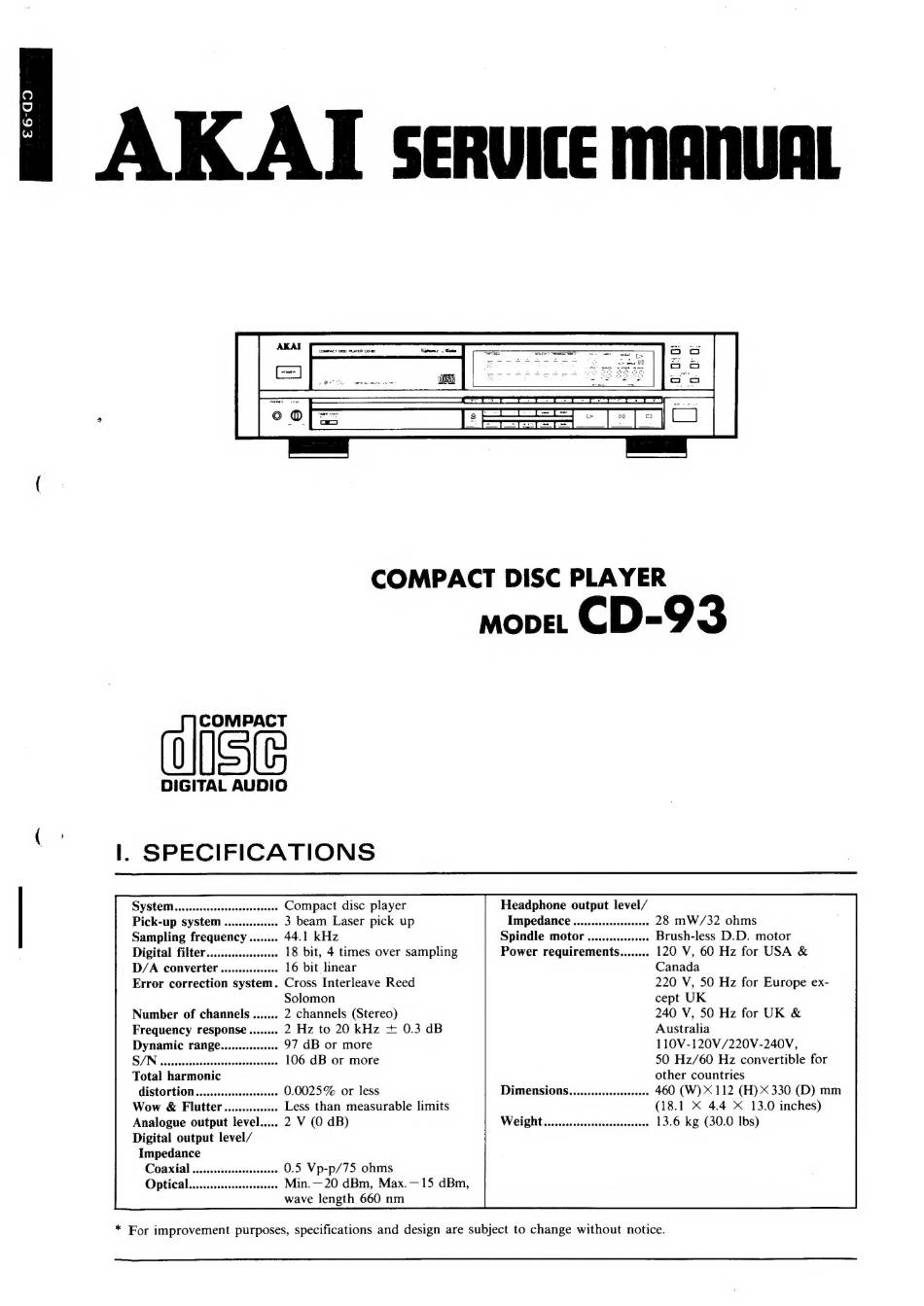

Akai CD-93 Service Manual

AKAT Servite manuat
2 SS
IT TID 2 a
COMPACT DISC PLAYER
MODEL CD-93
GIS
DIGITAL AUDIO
I. SPECIFICATIONS
Compact disc player Headphone output level/
3 beam Laser pick up Impedance 28 mW/32 ohms
44.1 kHz Spindle motor Brush-less D.D. motor
Digital filter 18 bit, 4 times over sampling Power requirements 120 V, 60 Hz for USA &
D/A converter 16 bit linear Canada
Error correction system. Cross Interleave Reed 220 V, 50 Hz for Europe ex-
Solomon cept UK
Number of channels 2 channels (Stereo) 240 V, 50 Hz for UK &
Frequency response 2 Hz to 20 kHz + 0.3 dB Australia
Dynamic range 97 dB or more 110V-120V/220V-240V,
106 dB or more 50 Hz/60 Hz convertible for
Total harmonic other countries
distortion 0.0025% or less 460 (W) x 112 (H) X 330 (D) mm
Wow & Flutter Less than measurable limits (18.1 X 4.4 * 13.0 inches)
Analogue output level..... 2 V (0 dB) i 13.6 kg (30.0 Ibs)
Digital output level/
Impedance
Coaxial 0.5 Vp-p/75 ohms
Optical Min.— 20 dBm, Max.—15 dBm,
wave length 660 nm
* For improvement purposes, specifications and design are subject to change without notice.
