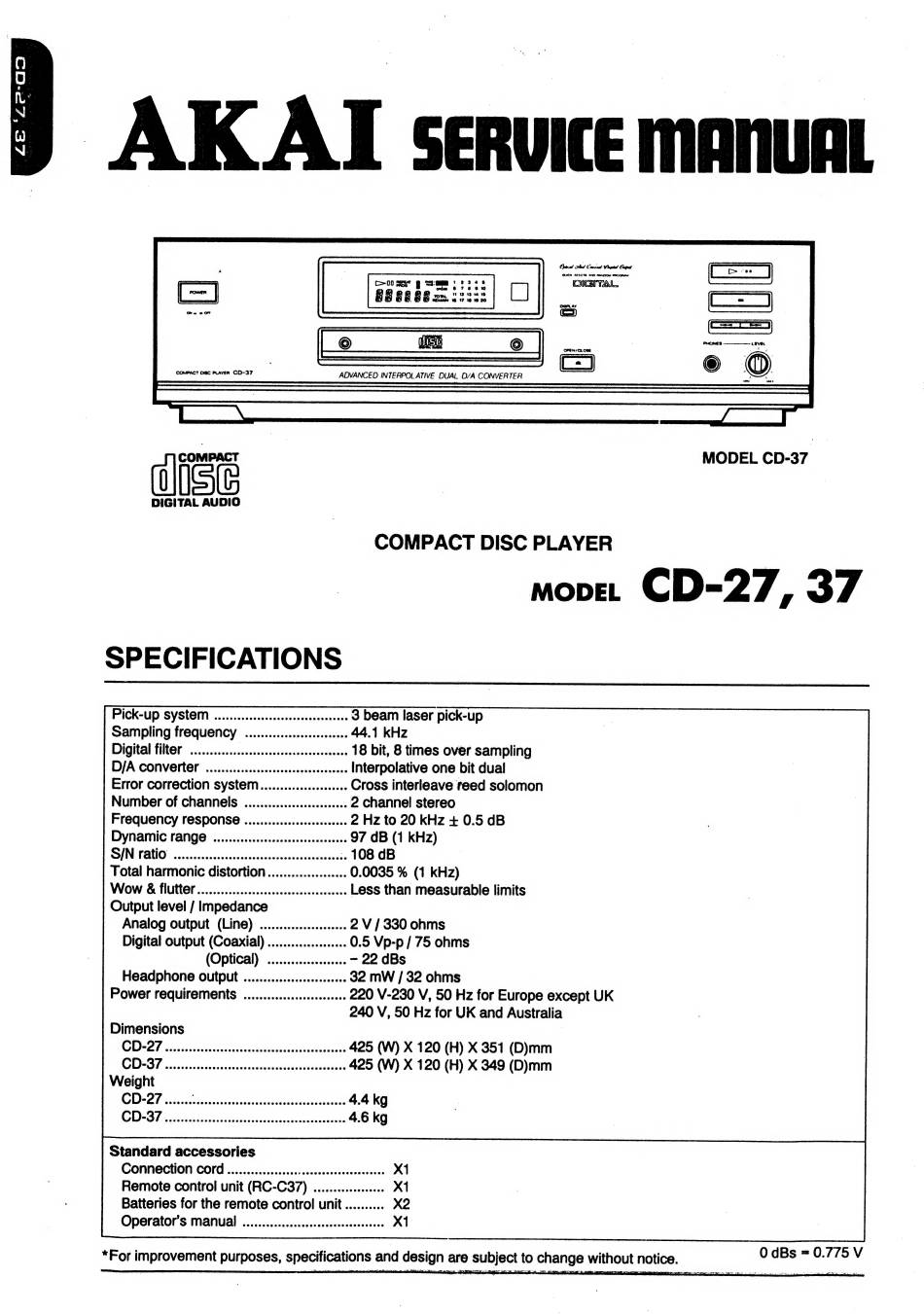

Akai CD-27 Service Manual

AKAT service manuat
- eses
Cee 8 ee ate
row. bd
88 88 88s. 2223:
. MEAN 1G 87 18 18 20
COMPACT O8C PLAYER CD-37
a | ee
COMPACT MODEL CD-37
DIGITAL AUDIO
COMPACT DISC PLAYER
move. CD-27, 37
SPECIFICATIONS
PICK-UP SYStOM .........ccccccsccccccccsseseevens 3 beam laser pick-up
Sampling frequency ...............cssssse008 44.1 kHz
Digital filter 0.0... ee seeeececessssseeeens 18 bit, 8 times over sampling
D/A CONVESTED ..........cceeececccecccseeceseees Interpolative one bit dual
Error correction SyStOm.............ssecceees Cross interleave reed solomon
Number of channels ................ssseseeees 2 channel stereo
FreQUeNCy FESPONSE .............cceceeeeeeees 2 Hz to 20 kHz + 0.5 dB
Dynamic range ...........:ccsscccssssrecessenes 97 dB (1 kHz)
SIN ratio occ ececcceceeccesseseecerseeeese 108 dB
Total harmonic distortion ................000. 0.0035 % (1 kHz)
Wow & flutter... ceessssssssceeeeeeees Less than measurable limits
Output level / Impedance
Analog output (Line) ..................... 2 V / 330 ohms
Digital output (Coaxial) .................0 0.5 Vp-p / 75 ohms
(Optical) .............scccce - 22 dBs
Headphone output ..............ssssecceeees 32 mW / 32 ohms
Power requirement .............sssescessees 220 V-230 V, 50 Hz for Europe except UK
240 V, 50 Hz for UK and Australia
Dimensions
CID 27 Aesaessteceteessecteasanevascccutiiewnesseset 425 (W) X 120 (H) X 351 (D)mm
OST solos Spetesucetsides tienen maces densataseness 425 (W) X 120 (H) X 349 (D)mm
Weight
D2 esses as oded pace cxcawseoeasetaaseabieens 4.4kg
CST cstwsarnsiniscneceh sauces obdeedeauseceaesncs 4.6 kg
Standard accessories
CONNECTION COM ............sscsccressssececcssseseeees x1
Remote control unit (RC-C37) ..............008 x1
Batteries for the remote control unit .......... X2
Operator's Manual .............cccesesessessssenee X1
0 dBs = 0.775 V
