- Page 1 100 Mbps PoE Switch Quick Start Guide UD35134B...
-
Page 2: Applicable Models
Preface Applicable Models This manual is applicable to 0100MP series 100 Mbps PoE switches. Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. -
Page 3: Product Introduction

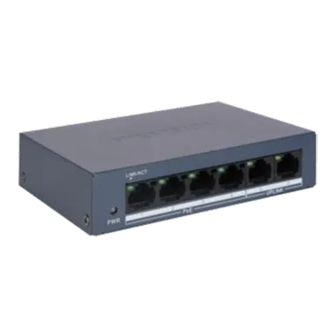

Device appearances vary with different models. The actual device prevails. Front Panel The 0106MP switch features four 10/100 Mbps PoE RJ45 ports and two 10/100 Mbps RJ45 ports. 0106MP Switch The 0110MP switch features eight 10/100 Mbps PoE RJ45 ports and two 10/100 Mbps RJ45 ports. -
Page 4: Rear Panel
Rear Panel 0106MP Switch 0110MP Switch Table 1-2 Port/Indicator Description Indicator/Port Description ● Solid on: The switch is powered on normally. ● Unlit: No power supply is ① PWR Indicator connected or power supply is abnormal. ● Solid on: The port is connected. -
Page 5: Wall Mounting
Wall Mounting Steps 1. Check the distance between the two hanging holes on the rear cover of the device. 2. Insert two self-prepared M4 screws into the wall. Note The load-bearing capacity of the wall should be three times more ●... - Page 6 Steps 1. Bury an angle steel or steel pipe (≥ 0.5 m) into the earth. 2. Weld one end of the grounding cable to the angle steel or steel pipe and embalm the welding point via electroplating or coating. 3. Connect the other end of the grounding cable to the grounding terminal.
