- Page 1 Industrial Hi-PoE Switch Quick Start Guide UD36781B...
-
Page 2: Applicable Models
Preface Applicable Models This manual is applicable to the models listed in the following table. Model Description DS-3T0306HP Industrial 10/100 Mbps Hi-PoE switch DS-3T0310HP DS-3T0506HP Industrial gigabit Hi-PoE switch DS-3T0510HP Symbol Conventions The symbols that may be found in this document are defined as follows. -
Page 3: Product Introduction

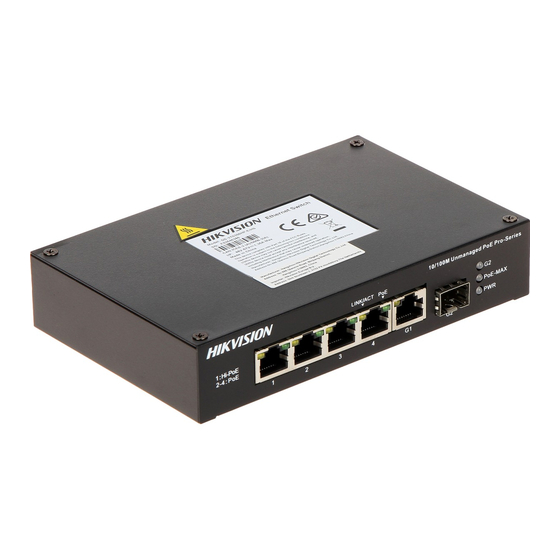

1 Introduction 1.1 Product Introduction 0300HP and 0500HP series switches are industrial 10/100 Mbps and gigabit Hi-PoE switches respectively, providing PoE power supply technology and wider temperature range design on the basis of network access to ensure stable data upload. In addition, 0300HP series switches support long-range transmission, port isolation, and PoE watchdog functions. -
Page 4: Side Panel
0506HP Series 0510HP series switches feature two gigabit Hi-PoE RJ45 ports, six gigabit PoE RJ45 ports, and two gigabit SFP fiber optical ports. 0510HP Series Side Panel 0306HP Series 0310HP Series 0506HP Series 0510HP Series Table 1-2 Port/Indicator Description Port/Indicator Description ●... - Page 5 Port/Indicator Description ● Unlit: The port is disconnected or connection is abnormal. ● Solid on: The switch supplies power to a powered device (PD) normally. ② PoE Indicator ● Unlit: The switch is disconnected from a PD or power supply is abnormal. 10/100 Mbps PoE RJ45 Port *0306HP&0310HP Series...
-
Page 6: Installation
Port/Indicator Description Use a self-prepared AC power cord or power adapter to ⑩ Power Supply connect the switch to a socket. Used for connection to the Grounding grounding cable to protect the ⑪ Terminal switch from lightning. Note Port 1 of 0306HP and 0506HP series switches as well as ports 1 and 2 of 0310HP and 0510HP series switches are Hi-PoE RJ45 ports, which can be connected to high-power devices. - Page 7 3 Wiring 3.1 Connect Grounding Cable Grounding is used to quickly release overvoltage and overcurrent induced by lightening on the device, and to protect personal safety. Select an appropriate grounding method according to the installation conditions. Note The following figures are for your reference only. The actual device prevails.
- Page 8 3.2 Connect RJ45 Port Use a network cable to connect the device to the RJ45 port of a peer device such as network camera (IPC), network video recorder (NVR), switch, etc. RJ45 Port Connection 3.3 Connect SFP Optical Module Connecting an SFP optical module is supported when the device has a fiber optical port.
