Texas Instruments TMP110 User Manual

www.ti.com
EVM User's Guide: TMP110EVM

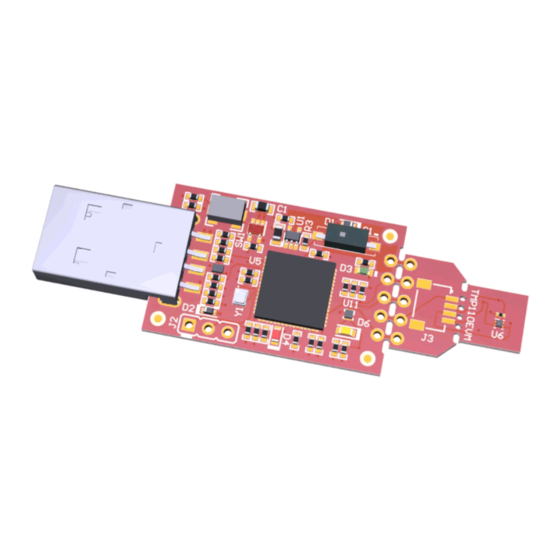

TMP110 Evaluation Module
Description
The TMP110 is TI's first X2SON packaged digital
temperature sensor with I2C communication and
alert/address options. The TMP110EVM allows users
to evaluate the performance of the TMP110 digital
temperature sensor. The TMP110EVM is designed
to be used as is; using the evaluation module GUI.
Alternatively, the sensor can be detached to be
evaluated in the user's system. For this purpose,
there are multiple alternatives to interface with the
sensor for best user experience.
Get Started
1. Order the TMP110EVM
2. Detach the sensor breakable PCB section
(optional)
3. Connect the EVM to computer or user system
4. Go to the TMP110EVM gallery page
to either download the GUI or run on the web
5. Refer to the TMP110 data sheet
6. Visit our E2E forums
SNIU052 – NOVEMBER 2023
Submit Document Feedback
on dev.ti.com
for IC details
for support or questions
TMP110EVM
Copyright © 2023 Texas Instruments Incorporated
Features
• Easy to use cloud-based GUI is available on the
web or can be downloaded for offline use
• Showcasing the ultra-small, leadless X2SON
package digital temperature sensor with alert
functionality
• Breakable sensor board with 0.1'' pitch header
footprint and 4-pin JST connector footprint to
interface with the TMP110
• Data logging with GUI
Applications
• Building automation
– Occupancy detection
– Video doorbell
– HVAC: Wireless environmental sensor
• Factory automation & control
– Machine vision camera
– Industrial PC: Single board computer
– CPU (PLC controller)
• Cold chain
• Data center & enterprise computing
– Solid State Drive (SSD)
– Rack Server Motherboard
• Personal electronics
– PC & notebooks, tablets
– Digital still & video camera
– Augmented reality glasses
– Smart speakers
Description
TMP110 Evaluation Module 1
