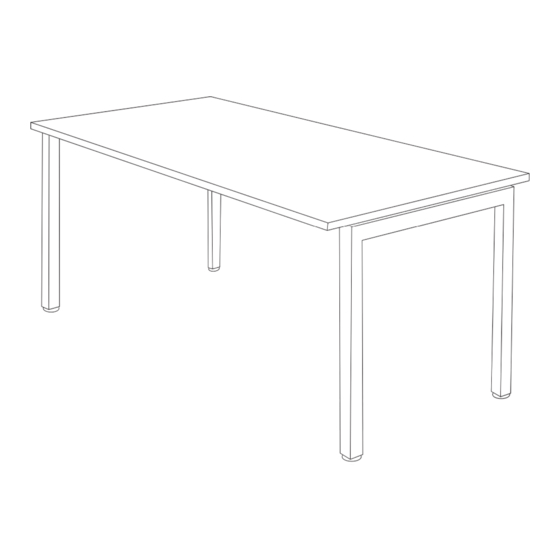

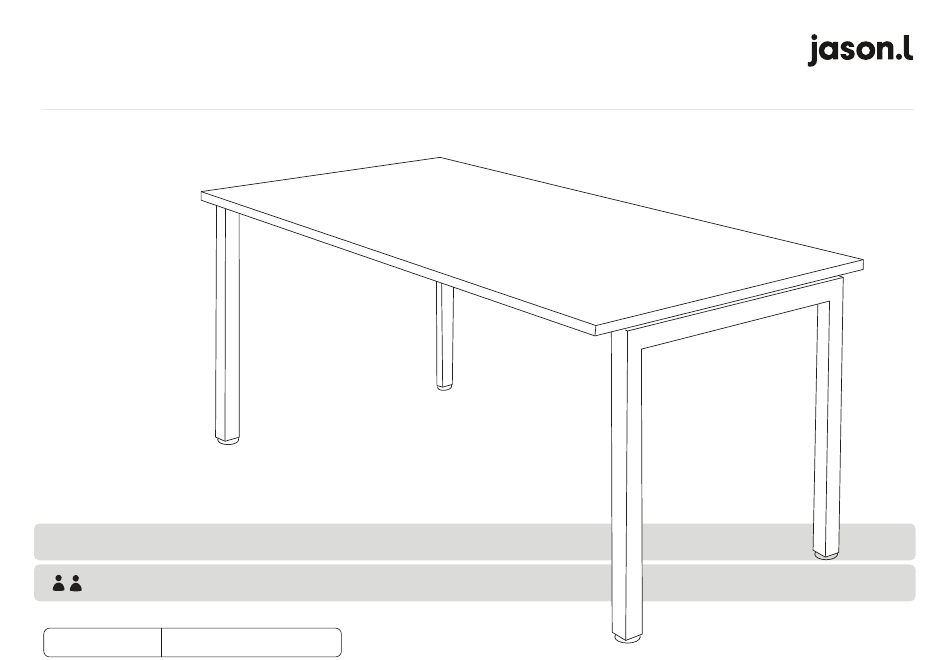

- Page 1 ASSEMBLY INSTRUCTIONS Quadro Square Desk SIZES: 1200X700 1800X700 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation www.jasonl.com.au Need help! 1 of 5 1300 527 665 Call us on...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro Square Desk COMPONENTS Table top x1 Legs Quadro Square x2 Beam x1 Plastic bracket x4 SCREWS M8x20MM CSK x2 M8x20MM Socket head x2 M6x20MM Socket head x4 M6x30MM Socket head x4 Allen key x2 Colour of the beam is always black, regardless desk frame colour. www.jasonl.com.au Need help! 2 of 5...
-
Page 3: Need Help
ASSEMBLY INSTRUCTIONS Quadro Square Desk STEP 01 STEP 02 STEP 03 Using Allen Key provided, attach 2 plastic Using Allen Key provided, attach M8x20MM Use fixed beam (C) and secure beam using brackets per leg (D) (as per picture above) Socket head (F)- screw socket half way screws provided to fit the desk using M6x20MM (G) Socket head screw... -
Page 4: Top View
ASSEMBLY INSTRUCTIONS Quadro Square Desk STEP 05 STEP 04 TOP VIEW Attach beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (C) with Socket (E) See point attached www.jasonl.com.au Need help! 4 of 5 1300 527 665 Call us on... -
Page 5: Bottom View
ASSEMBLY INSTRUCTIONS Quadro Square Desk STEP 06 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktop ontop of frame. Nut inserts in top will align with plastic joiner brackets using M6x30MM (H) sockets attach top to frame. www.jasonl.com.au Need help! 5 of 5 1300 527 665 Call us on...
