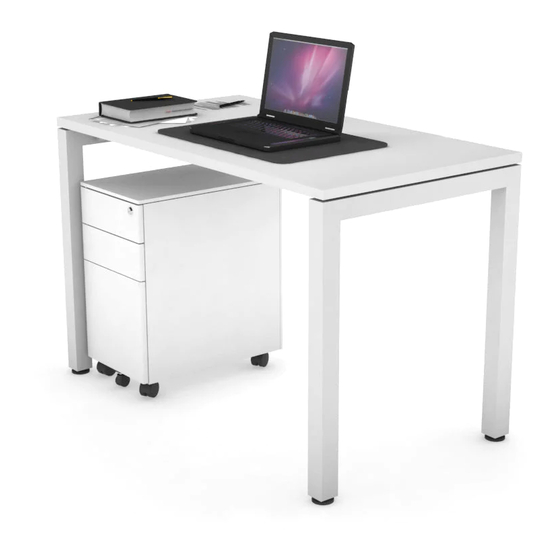

- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 6...
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm COMPONENTS Table top x1 Legs Quadro Square x2 Beam x1 Plastic bracket x4 SCREWS M8x20MM CSK x2 M8x20MM Socket head x2 M6x20MM Socket head x4 M6x30MM Socket head x4 Allen key x2...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 01 STEP 02 Using Allen Key provided, attach 2 plastic brackets per leg (D) Using Allen Key provided, attach M8x20MM Socket head (F)- (as per picture above) using M6x20MM (G) Socket head screw screw socket half way into leg for both legs (B) Page 3 of 6...
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 03 Adjust extendable beam (C) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800...
- Page 5 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 04 TOP VIEW STEP 05 Attach beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (C) with Socket (E) See point attached Page 5 of 6...
- Page 6 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Square Need help! Desk Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 06 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktop ontop of frame. Nut inserts in top will align with plastic joiner brackets using M6x30MM (H) sockets attach top to frame.
