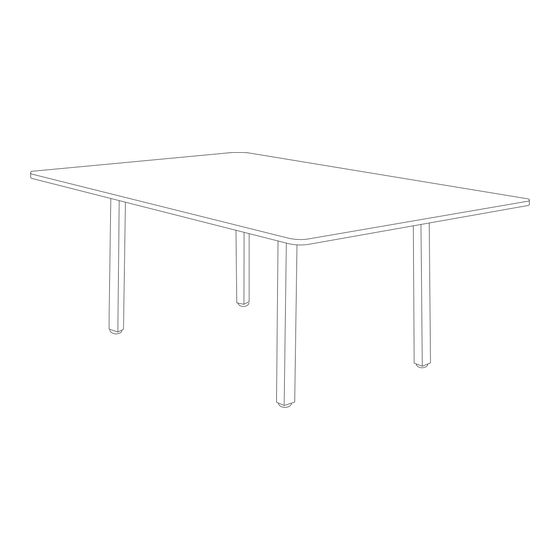

- Page 1 ASSEMBLY INSTRUCTIONS Quadro Square Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 6...
- Page 2 Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm COMPONENTS Table top x1 Leg Quadro Square x2 Beam x1 Plastic bracket x4 SCREWS M8x20MM CSK x2 M8x20MM Socket head x2 M6x20MM Socket head x4 M6x30mm Socket head x 4...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro Square Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm STEP 01 STEP 02 Using Allen Key provided, attach 2 plastic brackets per leg (D) Using Allen Key provided, attach M8x20MM Socket head (F)-...
- Page 4 ASSEMBLY INSTRUCTIONS Quadro Square Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm STEP 03 Secure 1200mm beam (C) Adjust extendable beam to desired length using markers and secure beam at that length using screws provided...
- Page 5 ASSEMBLY INSTRUCTIONS Quadro Square Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm STEP 04 TOP VIEW STEP 05 Attach beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (C) with Socket (E)
- Page 6 ASSEMBLY INSTRUCTIONS Quadro Square Need help! Boardroom table Call us on 1300 527 665 Size: 1800mm x 1100mm STEP 06 STEP 07 Please drill M6x30MM Socket head (H) through the plastic Place the desktop on top of the frame. Please place the legs ideally indented around 300mm from each end left and right of the Tops, brackets into the underneath of the tops.
