Pediatric 4-Bar Knee – manual lock
Product Code
P313AP – 4-Bar Knee Pyramid Adapter Version
P313AL – 4-Bar Knee Knee Disarticulation Version

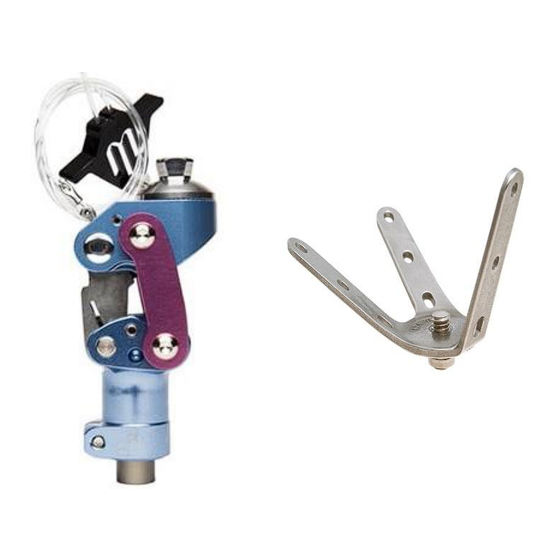

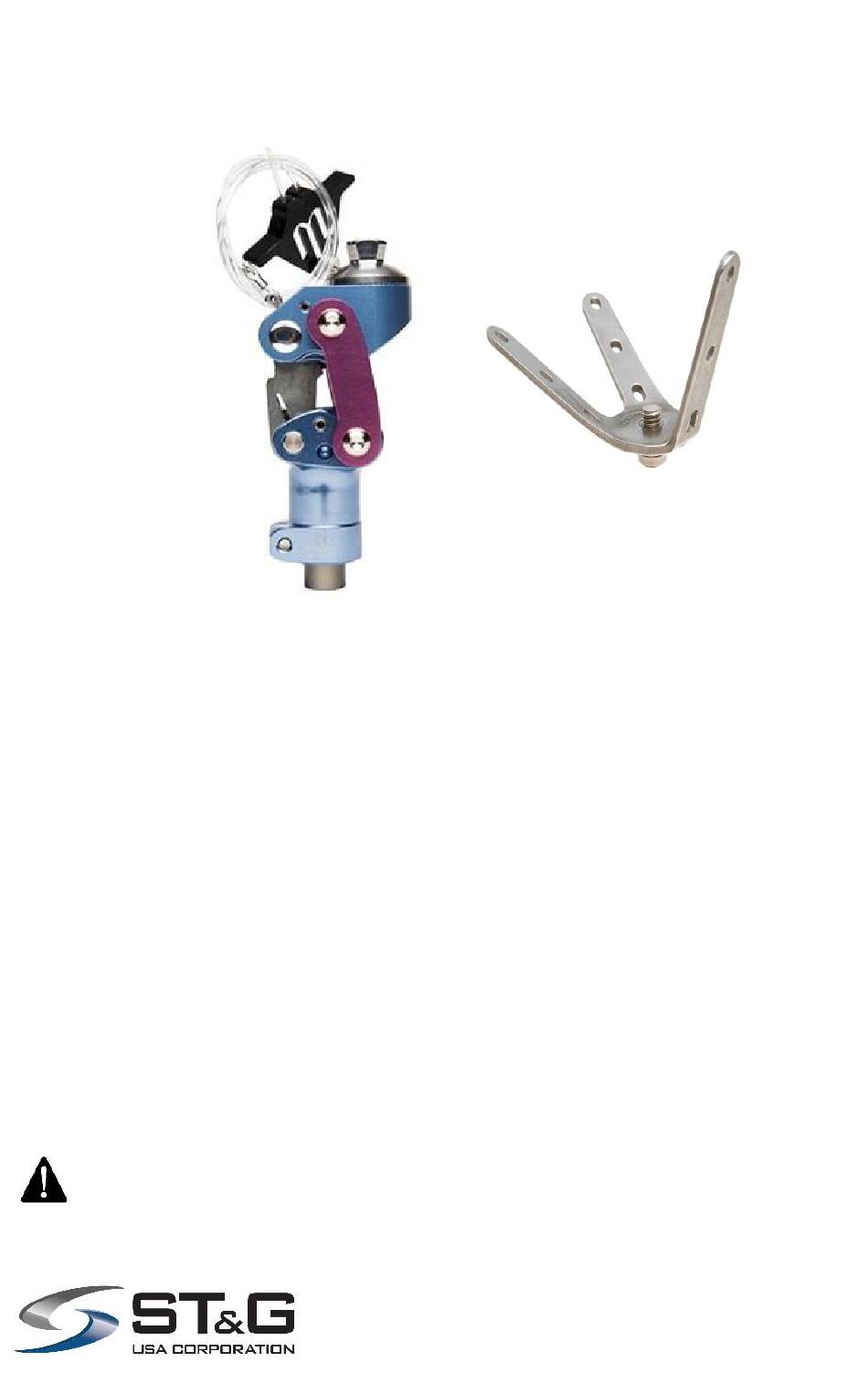

4-Bar Mechanical Knee Unit (Aluminum) with Adjustable Extension Assist
Description and purpose
These instructions are for use by the practitioner.
∙
The P313 knee is to be used exclusively as part of a lower limb prosthesis
∙
Recommended for pediatric wearers only, not intended for small adults.
∙
Weight limit for a user is up to 55 kg / 121 lbs
∙
Use of this component limited to patients up to 145cm / 57" and foot lengths up to 21cm
Contra-indications
∙
Residual muscular weakness, contractures or proprioceptive dysfunction including
poor balance.
∙
Contra lateral joint instabilities or pathology
∙
Complicated conditions involving multiple disabilities
∙
Non-Pediatric user
Ensure the end user has understood any Instructions for use, especially
the safety information, and inspection interval every 3 months!
Instructions for P313
KA31 KD Adapter
ST&G USA Corp.
2691 Saturn St.
Brea, CA 92821
Phone: (714) 524-0663
Fax: (714) 364-8113
www.stngco.com
Advertisement
Table of Contents
Related Manuals for ST&G P313
Summary of Contents for ST&G P313
- Page 1 4-Bar Mechanical Knee Unit (Aluminum) with Adjustable Extension Assist Description and purpose These instructions are for use by the practitioner. ∙ The P313 knee is to be used exclusively as part of a lower limb prosthesis ∙ Recommended for pediatric wearers only, not intended for small adults. ∙...
-
Page 2: Safety Information
Be sure to apply Loctite and torque mounting bolt to 21.5 Nm using a torque wrench. P313 adjustment locations Safety Information The Caution symbol highlights safety information which must be followed carefully. Be aware of finger trap hazard at all times... -
Page 3: Maintenance
Any changes in performance of the knee e.g. instability or lag in transition from full stance flexion moment to full knee extension moment in the knee should be immediately reported to the Clinician / Practitioner Any excessive changes in heel height may adversely affect the stability of the knee. The user should be advised to contact their Clinician / Practitioner if their condition changes. - Page 4 To eliminate noise in the cosmetic foam cover, use Silicone Spray. Do not use talcum powder! Talcum powder reduces the lubrication of the mechanical parts, which may lead to a malfunction and thus increase the risk of falling. Using this medical product after application of talcum powder will render all claims against ST&G null and void.
- Page 5 Initial Flexion Stability Check: a) Observe patient standing in parallel bars holding on, loading prosthesis, and assess alignment. b) Have patient initiate knee flexion. c) If more stability is needed, first plantarflex foot slightly. d) If more stability is needed, shift socket more anterior. Friction Adjustment: a) Set Friction adjustment to have smooth symmetrical heel rise and reduced terminal impact.
-
Page 6: Technical Specification
IX of the guidelines. Please keep this manual in safe place for future use. Useful Life Service life of the product is covered by the warranty period. Disposal The device and its packaging must be disposed of in accordance with respective national/local environmental regulations. P313 IFU REV. A (07-12-24)
