Endurance – 1116

Instructions for Use

The Endurance is designed for active users that have enough Build Height.

This foot is intended for lower extremity and to be single prosthesis use only, not to be reused

on another prosthesis.

Assembly

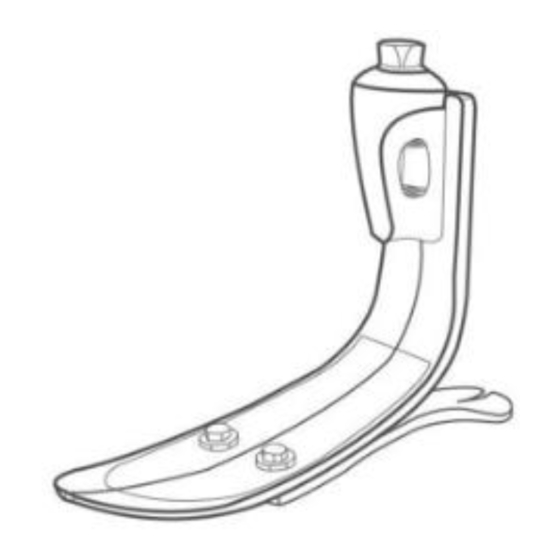

The Endurance foot module is pre-assembled consisting of a inner keel,

Spectra™ sock, and foot shell. Rubber stiffening bumpers for increasing heel stiffness

are provided. After dynamic alignment, torque pyramid adjustment screws to the

manufacturer's specifications. Secure pyramid adjustment screws with a thread locker

(i.e., Loctite 242).

NOTE:

The Prosthetist is responsible to inform the patient on any relevant information related to use or

safety of this device.

Patient should be instructed to return to their prosthetist immediately if they notice any unusal

noise, motion, or change in performance that may occur from what could be a damaged

module.

Warranty can be void due to: Unusual usage or abuse (ex. excessive dusty environmental

usage), Tampering with any fasteners, Modification to the module such as sanding or damaging

the finish, patient weight too close to weight limit of foot module (we recommend a 20-25 lb.

buffer).

Page 1 Endurance – 1116 Instructions for Use The Endurance is designed for active users that have enough Build Height. This foot is intended for lower extremity and to be single prosthesis use only, not to be reused on another prosthesis. Assembly The Endurance foot module is pre-assembled consisting of a inner keel, Spectra™...
Page 2 Inspection: Biannual interval of the Endurance is recommended: Check for corrosion, sign of wear, or damage of the bolts, spectra sock, and of the foot module or associated parts. BENCH ALIGNMENT (Diagram B) • Fit foot with selected cover. • Be sure pyramid protector is utilized for pre-delivery visits. * •...
Page 3 Permanent wedge placement: Cut the wedge to the same width of the carbon foot. Place the Wedge between the forefoot module and heel module, and apply glue only to the upper part of the wedge, then insert to apply to the forefoot module. The wedge will need to be cut in half so that the split toe can move freely.
Page 4 will void warranty. Foot shell and Spectra sock should not be exposed to extreme and continuous UV exposure, as it will prematurely fade and break down the material. Always use a covering such as a clean sock and shoes, and be sure to routinely change the sock so as to keep the enclosed environment clean and debris free.
