ST&G P313A Instructions

e-01

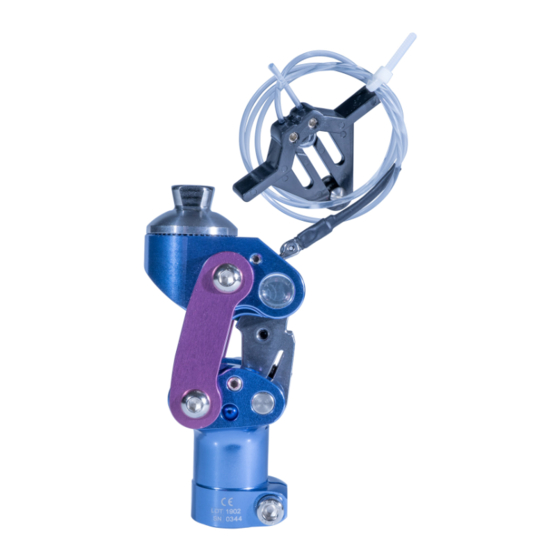

Instructions for P313A Pediatric 4 Bar Knee
With Manual Lock for AK and KD

1. Assembling:

Please assemble from socket to foot according to the illustration on "Appearance & Specifications",
where B, D, E and F can be swapped to other components with same or similar functions. Since all
components can be assembled by screws and nuts, please arrange and position the matching
components and fixed with screws and nuts to complete the assembling.

2. Joint Adjustment:

According to patient's weight and movement, please modify the friction adj. screw on the
connecting bar (#13) to increase/reduce the friction on the joint; modify the stability screw (#15) on
the linkage to increase/reduce the sensitivity of the joint; or to modify the adj. screw for extension
assistance (#1) on the piston tube to increase/reduce the elasticity of the spring. Pull up the fixed
bar (#24)○ 1 , the knee will flexible, release the fixed bar (#24)○ 2 the knee will fixed. Pull up the fixed
bar (#24)○ 1 then fasten the fixing screw (#25), the knee will keep flexible condition.
