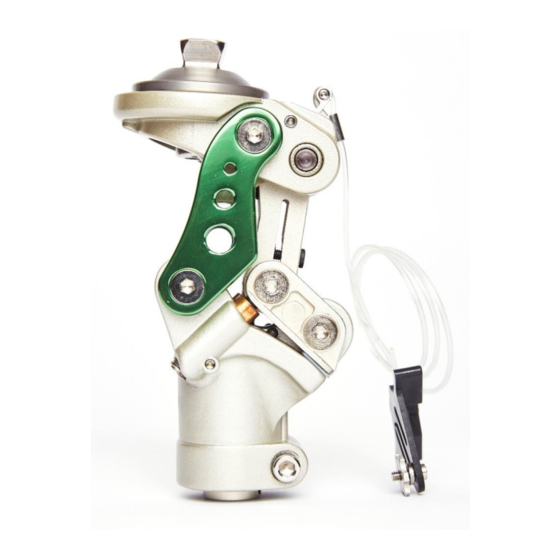

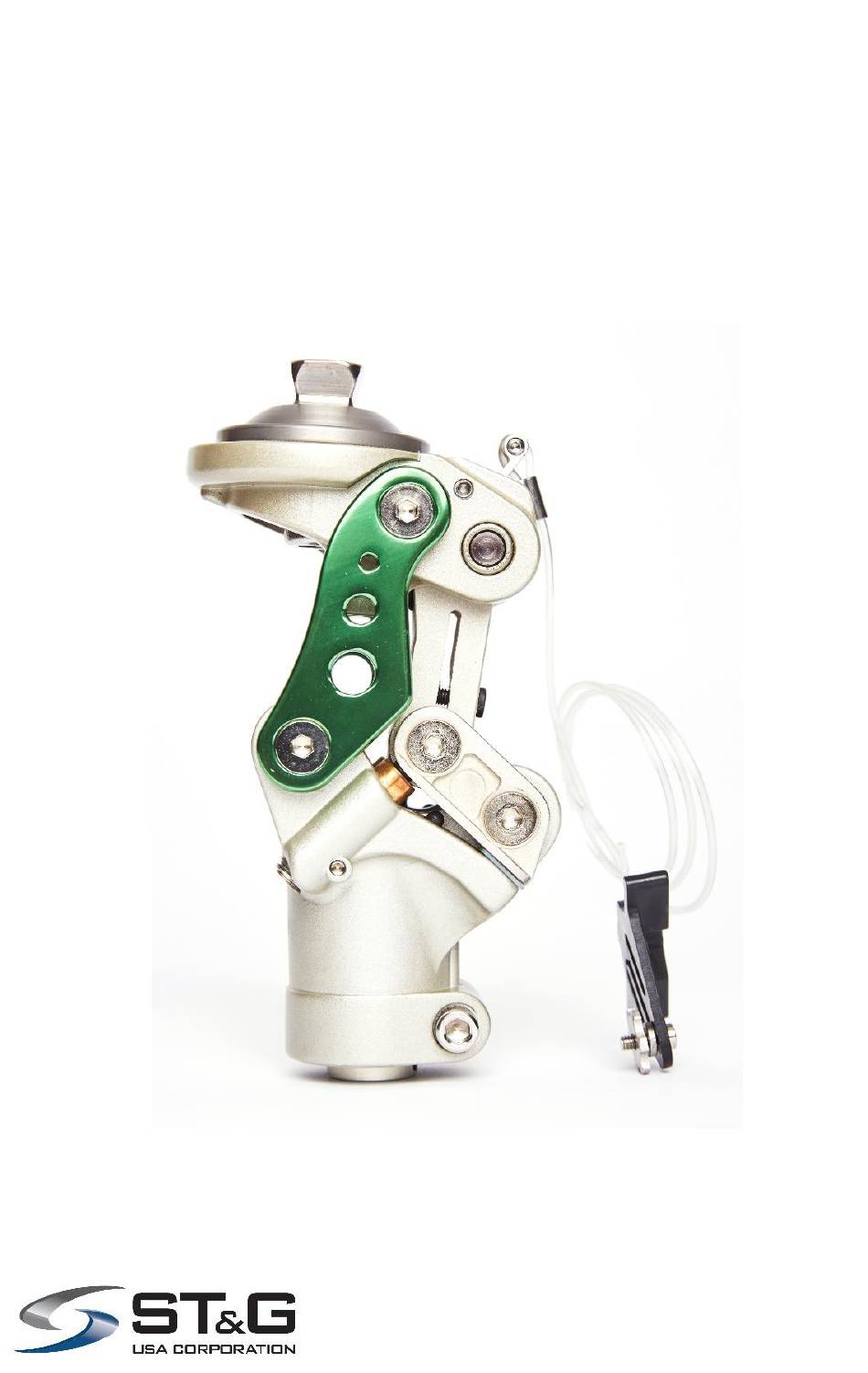

- Page 1 Instructions for L1324 AP / AL Stance Flexion 5 Bar Mechanical Manual Locking Knee ST&G USA Corp. Phone: (714) 524-0663 2691 Saturn St. Fax: (714) 364-8113 Brea, CA 92821 www.stngco.com...
-
Page 2: Description And Purpose
1 Description and purpose Prosthetist instructions. L1324 AP / AL knee is for lower limb prosthesis. Recommended for K1 up to K2. Weight limit for a user is up to 125kg / 275lbs Ability to lock knee in full extension as part of rehabilitation process. - Page 3 2. Construction Principal Parts Frame Aluminum Alloy, Brass, Stainless Steel, Steel Knee head Aluminum Alloy, Stainless Steel Knee control Various materials principally Aluminum Alloy, Stainless Steel, Poly Urethane Copper 1) The First Axis 2) The Second Axis 3) The Third Axis 4) The Fifth Axis 5) The Fourth Axis 6) Knee Head...
-
Page 4: Safety Information
3 Function The stance flexion control angle up to 12 degree for mimicking normal knee flexion from heel strike to foot flat of a gait cycle Pyramid and Knee Disarticulation mounting options 30mm Distal Tube Clamp Adjustable spring extension assist ... -
Page 5: Maintenance
5 Maintenance Maintenance must be carried out by qualified personnel. Bi-Annual inspection is recommended. Check for visual defects that may affect proper function. A loaner system is available should servicing be required. The wearer should be advised: Any changes in performance of this device must be reported to the Clinician / Practitioner. -
Page 6: Alignment And Set-Up
7 Alignment and Set-Up Users be aware of potential finger trap hazard Note: 4-bar knees inherently are very stable due to the geometry built into each design. This is commonly referred to as the Instant Knee Center (IKC). The IKC point when doing bench alignment, will fall behind the traditional TKA line that we will reference. - Page 7 b) Ideally, the pylon connecting the knee and foot should end up vertical. Of course, there may be a variance due to the foot alignment recommendations. In this case, the maximum anterior tilt of the pylon should not to exceed 4 degrees, and it may be necessary to utilize offset adapters like the 1222T off set tube clamp c) The weight line should pass through the centerline of the knee in the Coronal or M/L plane (Fig.
- Page 8 8 Knee Adjustment 8.1 Stance Flexion Adjustment NOTE: Stance Flexion set screws have been eliminated. The threaded holes remain, but will not contain a screw. Stance flexion adjustment screws are located on the anterior body of the knee and can be adjusted with a 5mm wrench. Turning both screws clockwise decreases the 5th axis motion, reducing the stance flexion angle.
- Page 9 8.3 Pyramid Head Position Adjusting Loosen screw with 2.5mm hex wrench. With 8mm hex wrench, loosen Pyramid bolt Rotate to desired orientation and retighten bolt. Note: Mark/indicate pyramid orientation. Remove pyramid bolt and apply thread locker, and torque bolt 18Nm. Tighten set screw to help prevent rotation. 8.4 Lock Disable Mechanism With the lock lever in the “Unlock”...
- Page 10 Attachment of Lanyard Handle Star Nut: The Star Nut needs to be laminated into the socket. Depending on the nut supplied, the hole should be burnished through, and then: If the Star Nut is not threaded, drill out with 3.3mm drill bit and tap with 4mm tap. If the Star Nut is threaded, chase threaded nut to clean thread with 4mm tap.
- Page 11 Apply Masking tape over the whole area to enable a smooth and relatively flat blended in surface – if the rivet sticks through the tape, that is ok. You want to be sure that the Star Nut is completely covered so it stays in place when the hole is either chased, or drilled and tapped.
- Page 12 For Unlocked gait Deviations GAIT DEVIATIONS AND ADJUSTMENTS: Excessive Heel Rise: During walking, first try adjusting the knee friction adjustment by turning it up to slow knee flexion initiation during swing. It might be necessary to very slightly increase knee extension assist spring tension by 1/8 turn increments. Increasing extension assist spring tension alone, will not reduce excessive heel rise tendencies.
-
Page 13: Knee Maintenance
9. Knee Maintenance 9.1 Changing Various bumpers: For the knee head leveling bumper, use 2mm wrench driver to loosen the bumper set screw by turning anti- clockwise. Note: Indicate position of the screw prior to removal of the bumper. Push out the bumper by turning the 5mm hex screw clockwise. - Page 14 9.2.2 Changing Stance Flexion Bumper Use 4mm driver to loosen the screws of fourth and fifth axes to take out the side bars of stance flexion unit. Please refer to the picture below – (1324 Knee used for reference only) Pull out opposite side bar along with fourth and fifth axes.
-
Page 15: Technical Specification
9 Technical Specification Operating & Storage Temperature Range: -10˚C to 50˚C ( 14˚F to 122˚F) Weight (Pyramid / Lotus): 847g / 861g Recommended Activity: K1, K2 Maximum User Weight: 125kg (275lbs) Maximum flexion angle: 135 degrees Proximal Alignment attachment: Rotatable Male Pyramid Lotus Adapter Distal Alignment attachment: Tube Clamp... -
Page 16: Warranty
10 Warranty Warranted for 2 years from the date of invoice by ST&G. The user should be aware that changes or modifications not approved will void the warranty. 11 Liability The manufacturer recommends using the device only under the specified conditions and for the intended purposes. - Page 17 ST&G USA Corporation www.stngco.com e-mail: info@stngco.com 2691 Saturn Street, Brea, CA 92821, USA Tel: 1-714-524-0663 Fax: 1-714-364-8113 Rev. B (02-05-18) L1324IFU...
