Mercia Garden Products 05DTOVPN0305DD-V Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 05DTOVPN0305DD-V and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 05DTOVPN0305DD-V

Summary of Contents for Mercia Garden Products 05DTOVPN0305DD-V

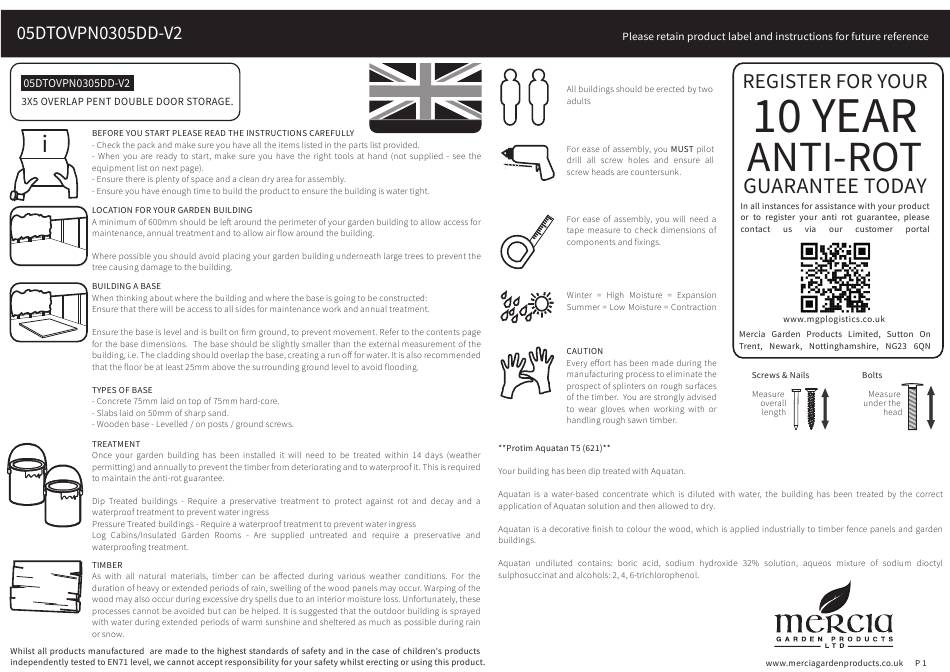

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.

  • Page 4: Missing Parts

    05DTOVPN0305DD-V2 End View Overall Dimensions: Door Strip - 7x45x1264mm QTY 2 Width = 1429mm S745-1264mm Depth = 955mm End View Height = 1419mm Base Dimensions: Large Fascia - 7x60x1429mm QTY 1 Width = 1395mm S760-1429mm Depth = 910mm End View Small Fascia - 7x60x945mm QTY 2 S760-945mm End View...
  • Page 5 IMPORTANT: Pre-drill before xing screws. Step 2 Pre Assembly Parts Needed - No. 4 QTY 1 Before assembling remove the transportation blocks from the bottom of each panel. - No. 3 QTY 1 Take care removing the blocks as to not damage the panels. Tap with a at headed Place the plain panel (No.
  • Page 6 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed- No.12 QTY 4 No.7 QTY 2 Locate the front panel (No. 1) in Locate two T Hinges (No. 12) onto each Door between the gables.
  • Page 7 Step 8 Step 10 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 6 QTY 1 Parts Needed - No. 15 Qty 1 Place the roof sheet (No. 6) on top of Cut the felt (No. 15) into one sheet measuring: the building and x into place with 1530mm (L) x 1000mm (W).
  • Page 8 Step 11 Step 13 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 10 QTY 2 Parts Needed - No. 13 QTY 2 - No. 9 QTY 1 - No. 14 QTY 1 Locate the turn button (No. 13) to Attach the large (No.
  • Page 9 Step 14 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 10 for a full guide and instructions. Apply treatment.
  • Page 10 ANY QUESTIONS? Scan code contact us via our customer portal.
