Mercia Garden Products 01DTSHAX0406SDFW-V1 Manual

Hide thumbs Also See for 01DTSHAX0406SDFW-V1:

Advertisement

Quick Links

Download this manual
x2
2mm Drill bit

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTSHAX0406SDFW-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTSHAX0406SDFW-V1

Summary of Contents for Mercia Garden Products 01DTSHAX0406SDFW-V1

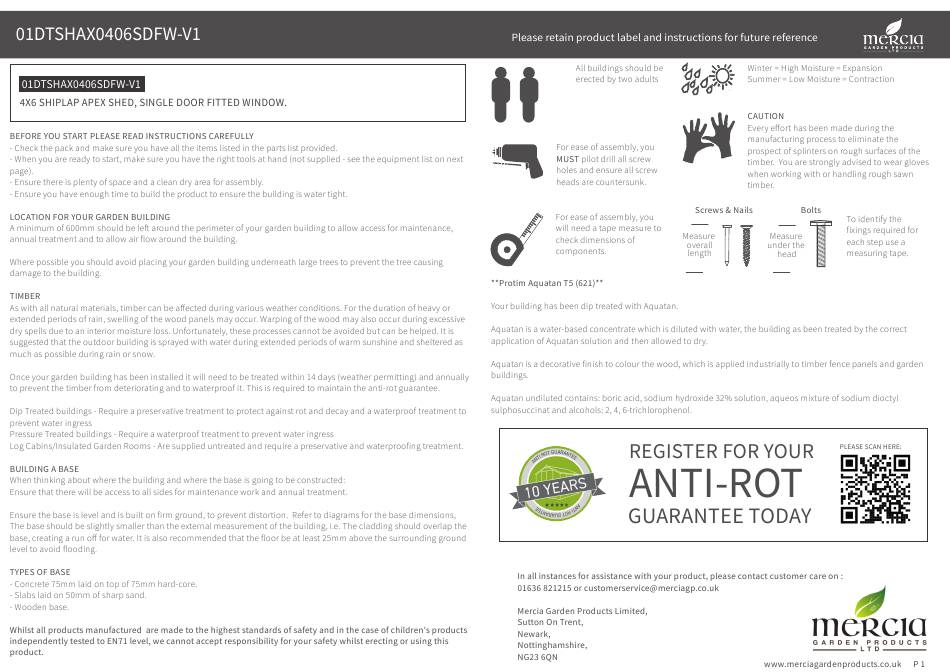

  • Page 1 2mm Drill bit...
  • Page 3 Before assembly Ridge Bar - 28x28x1137mm QTY 1 please make sure you have a FS2828-1137mm suitable base ready to erect your building Door Block - 27x44x160mm QTY 1 F2744-160mm Cover Strip - 40x12x1570mm QTY 4 S1240-1570mm MADE IN GREAT BRITAIN Overall Dimensions: Base Dimensions: Fascia - 12x80x1045mm QTY 4...

  • Page 4: Pre-Assembly

    Step 1 **This building can be constructed with an Apex Greenhouse. Please see the Greenhouse IMPORTANT: Pre-drill before xing screws. instructions for construction.** Parts Needed- No.1 QTY 1 - No.4 QTY 1 - No.13 QTY 3 Place the Door (No. 4) into the Door Gable (No.
  • Page 5 Step 5 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.7 QTY 1 Parts Needed- No.2 QTY 1 - No.14 QTY 2 - No.3 QTY 1 Fix the Corner Braces (No. 14) to either Place the Plain Gable (No.3) and one of end of the Ridge Bar (No.
  • Page 6 Step 6 Step 7 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.6 QTY 2 Secure the Roof to the panels below Place the Roof Panels (No. 6) on top of the using 16x50mm screws, screwing building, making sure the framing in the through the roof and into the panel roof panels sits...
  • Page 7 Step 10 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts Needed- No.17 QTY 1 Parts Needed- No.9 QTY 4 - No.8 QTY 1 Cut the felt (No.17) into three strips measuring: 1320mm (L) x 1000mm (W) and lay onto the roof in Place a cover strip (No.
  • Page 8 Step 11 IMPORTANT: Pre-drill before xing screws. If you have purchased a Greenhouse, please see Parts Needed- No.15 QTY 1 the Greenhouse instructions for construction. - No.18 QTY 2 Screw the Pad Bolt (No.15) on to the door (No.4) and the retainer to the door gable (No.1) using 10x30mm screws.
