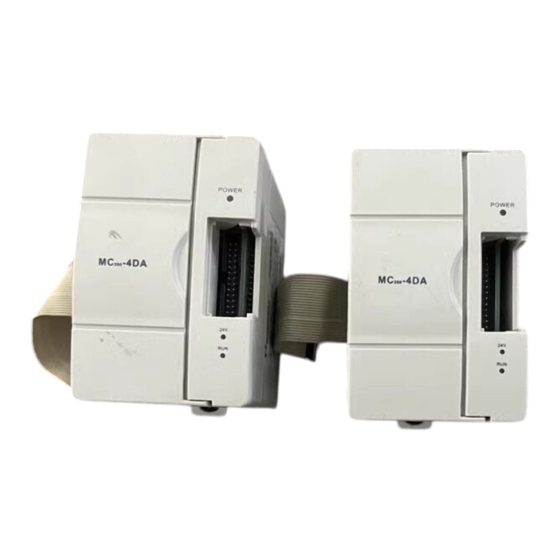

MC200-4DA Analog Quantity Output Module
User Quick Start Manual
Thank you for using MC200 series PLC. Before using the product,
please carefully read this manual so as to better understand it, fully use it,
and ensure safety. This quick start manual is to offer you a quick guide to the
design, installation, connection and maintenance of MC200 series PLC,
convenient for on-site reference.
This manual is for the following MC200 series members:
MC200-4DA
Analog Quantity Output Module
Version:V1.2
Revision Date:2010-01-14
BOM Code:R29090021
For detailed product information, please refer to MC200 Series PLC
User Manual , X-Builder Programming Software User Manual , and MC200/
MC100 Series PLC Programming Reference Manual . For ordering the above
user manuals, contact your Megmeet distributor or sales office.

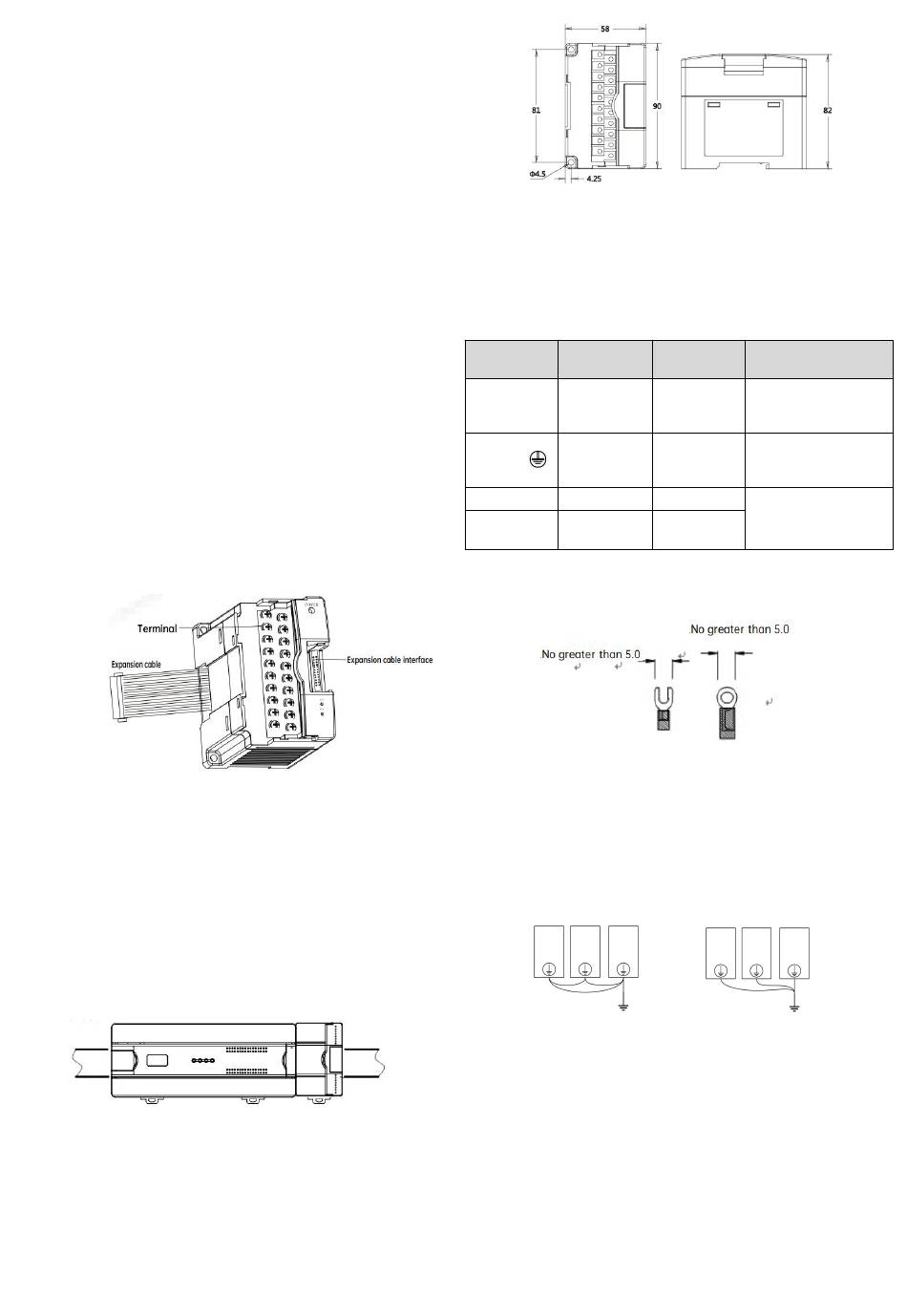

1. Appearance and Part Names
Fig. 1-1 Appearance and part name
2. Installation Description
2.1 Installation method
DIN rail mounting
Generally, you can mount the PLC onto a 35mm-wide rail (DIN). Open
the DIN snap-fit at the bottom of the module and lock the bottom of the
module onto the DIN rail; Rotate module close to the DIN guide rail and close
the DIN snap-fit with a double-checking.
Screw fixing
Fixing the PLC with screws can stand greater shock than DIN rail
mounting. M3 screws can be chosen to fix the PLC onto the backboard of the
electric cabinet through the mounting holes on PLC enclosure, as the
following figure.
Fig. 2-2 Screw installation diagram
2.2 Cable connection and specification
It is recommended to use stranded copper cables and prefabricate
insulated plugs to ensure connection quality. The following table lists the
sectional areas and models of the recommended cables.
Recommended
Cable
NO.
AC power line
AWG12/AWG18
(L、N)
AWG12
Ground line
Input signal (X)
AWG18/AWG20
Output signal
AWG18/AWG20
(Y)
Fix the prepared cable head onto the PLC terminals with screws
correctly. Fastening torque: 0.5~0.8Nm.
◆For the safety (to prevent electric shock and fire accidents) and lower
noise, the ground terminal of the controller should be connected in
accordance with the requirements from national electrical regulations, and
the ground resistance should be less than 100 Ω . Single point grounding
should be used when wiring multiple controllers, and the ground wire cannot
form a loop. As shown in the diagram below:
×
Note for wiring:
1. It is recommended to use a shielded twisted-pair cable for analog
input. The cable should be far away from power cable or other cables that
may generate electrical power interference.
2. If there is interference in the external electrical wiring and the input
signal fluctuates, you can connect a smoothing capacitor (0.1μF ~ 0.47 μF
/25V).
3. If the current channel uses the current input mode, short-circuit the
voltage input terminal and the current input terminal.
Terminal and heat shrink
Cross-Section
tubing
H1.5/14 prefabricate
1.0—2.0mm
2
insulated tubing terminal, or
Wire end tinning treatment
H2.0/14 prefabricate
2.0mm
2
insulated tubing terminal, or
Wire end tinning treatment
0.8—1.0mm
2
UT1-3 or OT1-3 cold-pressed
terminal, Φ3 or Φ4 heat
0.8—1.0mm
2
shrink tubing

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Megmeet MC200 Series

  • Page 1 MC200-4DA Analog Quantity Output Module User Quick Start Manual Thank you for using MC200 series PLC. Before using the product, please carefully read this manual so as to better understand it, fully use it, and ensure safety. This quick start manual is to offer you a quick guide to the design, installation, connection and maintenance of MC200 series PLC, Fig.
  • Page 2: Technical Specification

    4. The analog power supply can use the auxiliary output 24Vdc power 4. Terminal Introduction Table 4-1 describes the definitions of MC200-4DA terminals. supply of the main module, or other required power supply. 5. Grounding terminal PG of the module is well grounded. Remark Description Remark...
  • Page 3: Application Example

    6. Application Example Example: The MC200-4DA module address is 1 (for the addressing of expansion modules, refer to the MC200 Series PLC User Manual ). Set the CH1 and CH2 to voltage output (-10V~10V), CH3 to current output (0mA~20mA) and CH4 to current output (4mA~20mA).
  • Page 4: Buffer Memory (Bfm)

    7. Buffer Memory (BFM) Contents Remark Initialization Default: 0 MC200-4DA exchanges data with the main module through BFM. The Setting change enable 1 (yes), 0 (no); default: 1 main module uses TO command to write data into the BFM to configure #4094 Module software release H1000 MC200-4DA, and uses FROM command to read AD conversion result and...
  • Page 5: Routine Inspection

    9. Inspection Upon Fault Table 7-2 Status information of BFM#34 BFM#34 bit status ON (1) OFF (0) In case of abnormality, check the following items: b0: error b1 or b2 is ON No error ● The status of the POWER indicator *b1: channel characteristics Channel characteristics Channel characteristics...
  • Page 6 Notice 1. The warranty range is confined to the PLC only. 2. Warranty period is 18 months, within which period Megmeet conducts free maintenance and repairing to the PLC that has any fault or damage under the normal operation conditions.
