ASSEMBLY INSTRUCTIONS
Quadro Loop
Boardroom table

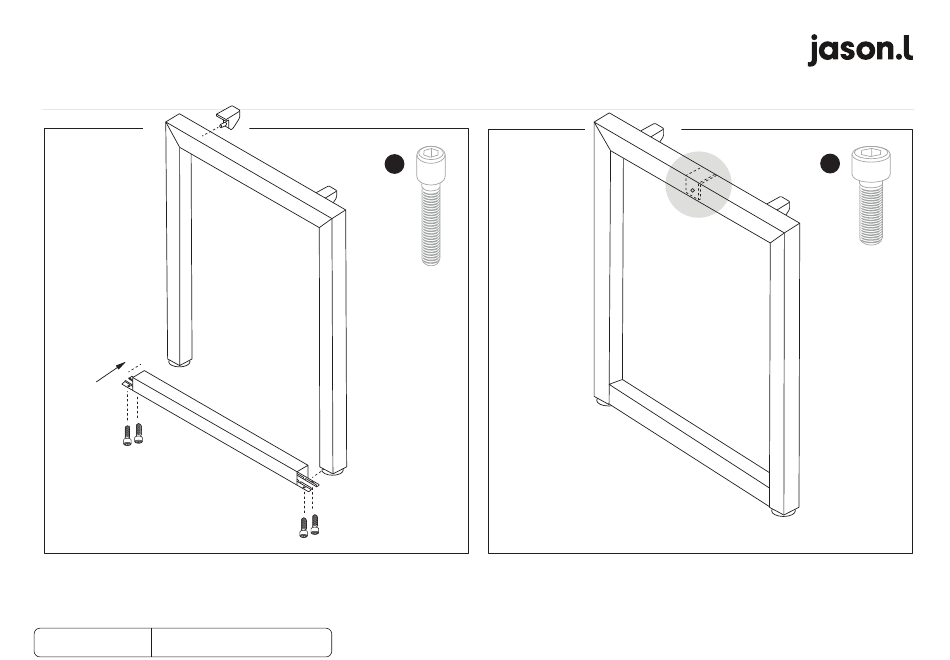

STEP 01
Using Allen Key provided, attach 2 plastic brackets per leg (E) (as per
picture above) using M6x20MM (H) Socket head screw. Connect Loop
Legs (C) to Bottom of Quadro Legs (B) by using 4 bolts per leg.
Need help!
Call us on
H
1300 527 665
STEP 02
Using Allen Key provided, attach M8x20MM Socket head (G)- screw
socket half way into leg for both legs (B)
G
www.jasonl.com.au
3 of 6
