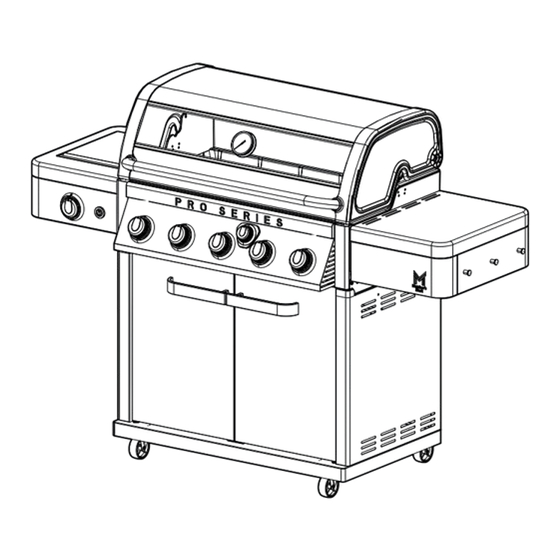

PRO SERIES
5-BURNER NATURAL GAS GRILL WITH
THERMOSTATIC CONTROL
Assembly Instructions & User Manual
Model G62305
STOP
Do not return this product to the store. If you need help or require parts, call the Customer Care Hotline:
1-833-454-0864
This manual must remain with the product at all times.
FOR OUTDOOR USE ONLY.
Manual Revision #: 09.14.2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO G62305 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Member's Mark PRO G62305

Summary of Contents for Member's Mark PRO G62305

  • Page 1 PRO SERIES 5-BURNER NATURAL GAS GRILL WITH THERMOSTATIC CONTROL Assembly Instructions & User Manual Model G62305 STOP Do not return this product to the store. If you need help or require parts, call the Customer Care Hotline: 1-833-454-0864 This manual must remain with the product at all times. FOR OUTDOOR USE ONLY.
  • Page 2 IMPORTANT SAFETY WARNINGS THIS MANUAL MUST REMAIN WITH THIS PRODUCT AT ALL TIMES CAUTION DANGER Read and follow all safety statements, 1. If you smell gas: assembly instructions, use and care directions a. Shut off gas to the appliance. before attempting to assemble and cook. b.

  • Page 3: Table Of Contents

    MODEL G62305 TABLE OF CONTENT INSTALLATION / ADDITIONAL WARNINGS NATURAL GAS WARNINGS NATURAL GAS HOOK-UPS: Connecting and disconnecting your grill to the natural gas Leak test procedure Pre-start check list LIGHTING INSTRUCTIONS START GRILLING PREVENTION MAINTENANCE STORING YOUR GRILL TROUBLESHOOTING ASSEMBLY INSTRUCTIONS WARRANTY AND SERVICE DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Installation / Additional Warnings

    MODEL G62305 INSTALLATION Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.

  • Page 5: Natural Gas Warnings

    • This Member's Mark Pro-Series Natural Gas Grill comes equipped with a 10' Natural Gas hose with a quick connect socket connection, designed for natural gas and certified for outdoor use. This allows you to attach your grill to your residential gas line.

  • Page 6: Natural Gas Hook-Ups

    MODEL G62305 NATURAL GAS HOOK-UP’S ATTENTION In order to complete installation of your Natural Gas Grill a 1/2” or 3/8” adapter may be required to connect your grill’s Natural Gas hose to your home gas supply. Contact your Natural Gas supplier to purchase the necessary part. WARNING For all new, at-home, natural gas connections, please contact a certified gas technician to install your natural gas grill.

  • Page 7: Leak Test Procedure

    MODEL G62305 LEAK TEST PROCEDURE WHEN TO PERFORM A LEAK TEST: • After assembling your grill and before lighting for the first time, even if purchased fully assembled. • Every time any of the natural gas components are disconnected or replaced. •...

  • Page 8: Pre-Start Check List

    MODEL G62305 PRE-START CHECK LIST DANGER Property damage, bodily harm, severe burns, and death could result from failure to follow these safety steps. These steps should be performed after the grill has been assembled and prior to each use. DO NOT operate this grill until you have read and understand ALL of the warnings and instructions in this manual.

  • Page 9: Lighting Instructions

    MODEL G62305 LIGHTING INSTRUCTIONS LIGHTING THE MAIN BURNERS: BBQ MODE All burners will function in BBQ Mode. The thermostatic control knob must be set to BBQ. Open the lid before attempting to light the burners. 2. Make sure all control knobs and the gas shut-off valve are “OFF.” Lighting Instruction Video Scan this QR code.
  • Page 10 MODEL G62305 LIGHTING INSTRUCTIONS LIGHTING THE MAIN BURNERS: THERMOSTATIC CONTROL Open the lid before attempting to light the burners. 2. Make sure all control knobs and the gas shut-off valve are "OFF." 3. SLOWLY turn the gas shut-off valve counter-clockwise to open. Wait 30 seconds for the pressure to stabilize. 4.
  • Page 11 MODEL G62305 LIGHTING INSTRUCTIONS WHEN SWITCHING FROM THERMOSTATIC CONTROL TO BBQ MODE ATTENTION Burner #2 and burner #4 include a thermocouple and safety shut-off valve that will restrict the use of both burners when the thermostatic control knob has been turned on. Push in and turn the thermostatic control knob, clockwise to BBQ mode.
  • Page 12 MODEL G62305 LIGHTING INSTRUCTIONS LIGHTING THE SIDE BURNER/SEAR BURNER (IF APPLICABLE) Open lid before lighting side burner. 2. Make sure control knob is “OFF”. 3. With the gas shut-off valve open, push and turn control knob to “HI”. Press igniter for 3-5 seconds.
  • Page 13 MODEL G62305 LIGHTING INSTRUCTIONS USING THE SIDE BURNER • The side burner can be used to prepare side dishes such as beans, potatoes, corn, or to warm sauces. • The burner valve can be adjusted from high to low depending upon your cooking demands. WARNING •...

  • Page 14: Start Grilling

    MODEL G62305 START GRILLING WARNING: Read and follow all warnings and instructions contained in the preceding sections of this manual. • DO NOT cover cooking grates or other components with aluminum foil, as this blocks ventilation and damage to grill or result in personal injury.
  • Page 15 MODEL G62305 START GRILLING TIPS FOR TEMPERATURE MAINTENANCE AND COOKING TIMES When using the Thermostatic Control system, the temperatures inside the grill are constantly monitored and burner flames adjusted to maintain set temperature. However, to maintain stable cooking temperatures and retain heat inside your grill, do the following: 1.
  • Page 16 MODEL G62305 START GRILLING GRILL COOKING TIPS: WARNING TO ENSURE THAT IT IS SAFE TO EAT, FOOD MUST BE COOKED TO THE MINIMUM INTERNAL TEMPERATURES LISTED IN THE TABLE BELOW. USDA SAFE MINIMUM INTERNAL TEMPERATURES Fish 145° F (63° C) Pork 160°...

  • Page 17: Prevention

    MODEL G62305 PREVENTION CONTROLLING FLARE-UPS/GREASE FIRES: • Flare-ups are a common occurrence when cooking meats on a gas grill. Use caution when opening lid, as sudden flare-ups may occur. Excessive flare-ups can overcook your food and create a dangerous situation for you and your grill. Excessive flare-ups result from the build-up of grease in your grill.
  • Page 18 MODEL G62305 PREVENTION BLOCKED BURNER VENTURI Blockages in the burner venturi caused by spiders, insects or nests can cause a FLASHBACK FIRE. A flashback fire occurs when a blockage in the venturi tubes caused by spiders, insects and nests blocks the flow of gas, forcing it back towards the control panel and control knob.

  • Page 19: Maintenance

    MODEL G62305 MAINTENANCE PROPER CARE & MAINTENANCE ATTENTION: If you are experiencing any of the following performance or safety issues: 1) grill not reaching temperature potential, 2) yellow burner flames, 3) the smell gas, 4) popping noises, 5) delayed burner ignition, 6) uneven heat, 7) flash fires, or 8) grease fires, TURN OFF YOUR GRILL immediately and perform the following maintenance regime.
  • Page 20 MODEL G62305 MAINTENANCE CLEANING THE BURNERS Keeping burners free of blockages including spiders, insects, nests and other debris that can block the burner ports is essential for safe operation. 1. Use a clean grill brush to clean the outside of the burner. 2.

  • Page 21: Storing Your Grill

    MODEL G62305 MAINTENANCE CLEANING THE EXTERIOR PAINTED, PORCELAIN ENAMEL SURFACES (IF APPLICABLE) 1. Clean painted and porcelain-coated surfaces with warm soapy water. 2. After wiping down all surfaces, rinse thoroughly with water. 3. Dry with a soft microfiber cloth. DO NOT USE ANY CHEMICAL CLEANERS ON PAINTED SURFACES AS THEY COULD STRIP THE PAINT AND PERMANENTLY DAMAGE THE SURFACE, LEAVING IT UNPROTECTED.

  • Page 22: Troubleshooting

    MODEL G62305 TROUBLE SHOOTING RESOLVING IGNITION ISSUES, QUICK CHECK: Press the ignition button located on the left shelf fascia (see image A). You should hear a continuous clicking sound when the button is pressed. If you hear no sound, 1) replace the battery (see image B), 2) check that all wires are firmly pushed in (see image C).
  • Page 23 MODEL G62305 TROUBLE SHOOTING PROBLEM IDENTIFYING THE CAUSE: Installation issues. Consult with the gas fitter who performed installation. The gas supply pipe must be sized according to the installation code. Not using the natural gas hose supplied with this grill. Flame blows out High wind condition.
  • Page 24 WARNING: H OT S U R FAC E S WARNING: EXTERIOR SURFACES WILL BECOME VERY HOT. TO PREVENT BURNS, ALWAYS WEAR INSULATED PROTECTIVE GRILL MITTS WHEN WORKING AT THE GRILL. • KEEP AWAY FROM COMBUSTIBLE MATERIALS. • KEEP CHILDREN AND PETS AWAY FROM THIS GAS-FIRED GRILL. •...
  • Page 25 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...

  • Page 26: Assembly Instructions

    MODEL G62305 ASSEMBLY INSTRUCTIONS HARDWARE PACK Description Picture 1/4"-20UNC x18 Screw 1/4"-20UNC x 13 Screw NO.10-24UNC x13 Screw NO.8-32UNC X10 Screw ST4.8X10 Tapping Screw NO.5-40 X 10 Screw ST4.2X20 Tapping Screw Bezel, Knob Knob AA Battery Caster Pin Spacer, Door Handle ST4.2X10 Tapping Screw 5 Washer Connector...
  • Page 27 MODEL G62305 ASSEMBLY INSTRUCTIONS EXPLODED DIAGRAM HARDWARE PACK B19 B17 ASSEMBLY MANUAL 1-833-454-0864...
  • Page 28 MODEL G62305 ASSEMBLY INSTRUCTIONS Description Part No. Description Part No. TOP LID G623-7200-C1 INFRARED SEAR BURNER G623-1600-C1 TOP LID HANDLE G623-0011-C1 ELECTRODE, INFRARED SEAR BURNER G623-0027-C1 TEMPERATURE GAUGE G623-0064-C1 INFRARED SEAR BURNER VALVE BRACKET G614-0073-C1 TEMPERATURE GAUGE BEZEL G532-0006-C1 GREASE TRAY, INFRARED SEAR BURNER G614-0075-C1 TOP LID HARDWARE G545-0025-C1...
  • Page 29 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 30 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 31 MODEL G62305 ASSEMBLY INSTRUCTIONS ATTENTION: Use of a tarp is recommended to avoid damage to parts. ASSEMBLY MANUAL 1-833-454-0864...
  • Page 32 MODEL G62305 ASSEMBLY INSTRUCTIONS ATTENTION: The wire sleeve should remain in place and only the twist tie be removed. Remove the twist tie! Remove the wrap! Remove the twist tie! Remove the wrap! ASSEMBLY MANUAL 1-833-454-0864...
  • Page 33 MODEL G62305 ASSEMBLY INSTRUCTIONS Back view Front view ASSEMBLY MANUAL 1-833-454-0864...
  • Page 34 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 35 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 36 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 37 MODEL G62305 ASSEMBLY INSTRUCTIONS Tighten the screws ASSEMBLY MANUAL 1-833-454-0864...
  • Page 38 MODEL G62305 ASSEMBLY INSTRUCTIONS Tighten the screws ASSEMBLY MANUAL 1-833-454-0864...
  • Page 39 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 40 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 41 MODEL G62305 ASSEMBLY INSTRUCTIONS Tighten the screws ASSEMBLY MANUAL 1-833-454-0864...
  • Page 42 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 43 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 44 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 45 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 46 MODEL G62305 ASSEMBLY INSTRUCTIONS Large - 2 C13 Small - 4   NOTE: Push in Firmly. ASSEMBLY MANUAL 1-833-454-0864...
  • Page 47 MODEL G62305 ASSEMBLY INSTRUCTIONS ASSEMBLY MANUAL 1-833-454-0864...
  • Page 48 MODEL G62305 ASSEMBLY INSTRUCTIONS Back view PERFORM A LEAK TEST. Proceed to page 7, for instructions Leaking Test Video Scan this QR code. ASSEMBLY MANUAL 1-833-454-0864...

  • Page 49: Warranty And Service

    MODEL G62305 ASSEMBLY INSTRUCTIONS WARRANTY AND SERVICE This product is covered by the Sam's Club Member Satisfaction Guarantee. Please visit samsclub.com for more information. BEFORE YOU CALL FOR SERVICE, have the following information available: 1. Serial Number: The serial number is located on the front of this manual and on the rating label located inside your grill cart. 2.
  • Page 50 MODEL G62305 ASSEMBLY INSTRUCTIONS WARRANTY AND SERVICE LIMITATION AND EXCLUSIONS Winners Products has the following limitations to its warranty: 1. This limited warranty is non-transferable and becomes void if used for commercial or rental purposes. Which includes (but not limited to): Restaurants, hotels, resorts, time shares or rental properties.
  • Page 51 MODEL G62305 ASSEMBLY INSTRUCTIONS NOTE ASSEMBLY MANUAL 1-833-454-0864...
