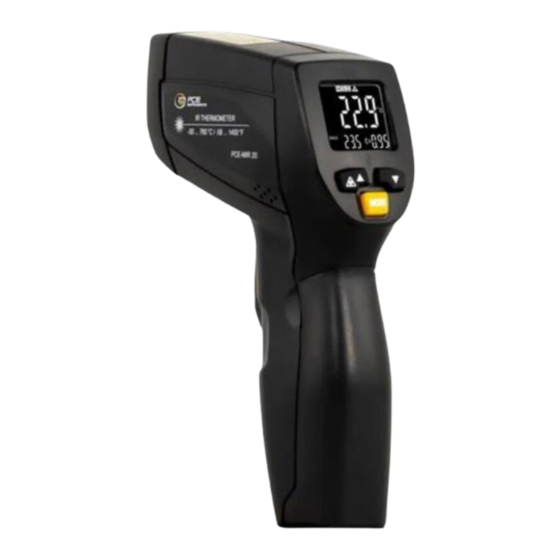

- Page 1 User Manual PCE-MIR 20 Infrared Thermometer User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 22 January 2024 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Limit value setting: lowest measured value - switch alarm on and off ....... 5 Limit value setting: lowest measured value - limit value setting......... 5 Laser pointer ..................6 Replace / insert battery ................ 6 Contact ....................7 10 Disposal ....................7 © PCE Instruments... -
Page 3: Safety Notes
Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
-10 ... 60 °C / 14 ... 140 °F, <80 % RH Dimensions 175 x 75 x 35 mm Weight 114 g (without battery) Delivery scope 1 x PCE-MIR 20 infrared thermometer 1 x transport bag 1 x 9 V block battery 1 x user manual © PCE Instruments... -
Page 5: Device Description
SCAN display: measurement is active Displayed measured value is frozen Laser pointer is active Display when limit value is exceeded Temperature unit Battery status display Set emissivity Display of the highest, lowest, average measured value or difference Measured value © PCE Instruments... -
Page 6: Making A Measurement
(AVG) and difference (DIF). To switch between the maximum, minimum, average and difference values, press and release the MODE key once until the desired function is reached. Note The function is reset with every new measurement. © PCE Instruments... -
Page 7: Settings
Press and release the MODE key. Once the alarm has been activated, the limit value can be set. The temperature value can be set using the arrow keys. Press and release the MODE key to exit the settings. © PCE Instruments... -
Page 8: Laser Pointer
To insert the battery or replace it if necessary, open the battery compartment. Now insert a 9 V block battery. Ensure that the polarity is correct. Note If the battery indicator appears on the display, the battery is discharged and must be replaced to ensure proper function. © PCE Instruments... -
Page 9: Contact
For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments. © PCE Instruments... - Page 10 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mula, 8 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17...
