PCE Americas Inc.
PCE Instruments UK Ltd.
711 Commerce Way
Units 12/13
Suite 8
Southpoint Business Park
Jupiter
Ensign way
FL-33458
Hampshire / Southampton
USA
United Kingdom, SO31 4RF
From outside US: +1
From outside UK: +44
Tel: (561) 320-9162
Tel: (0) 2380 98703 0
Fax: (561) 320-9176
Fax: (0) 2380 98703 9
info@pce-americas.com
info@industrial-needs.com
www.pce-instruments.com/english
www.pce-instruments.com

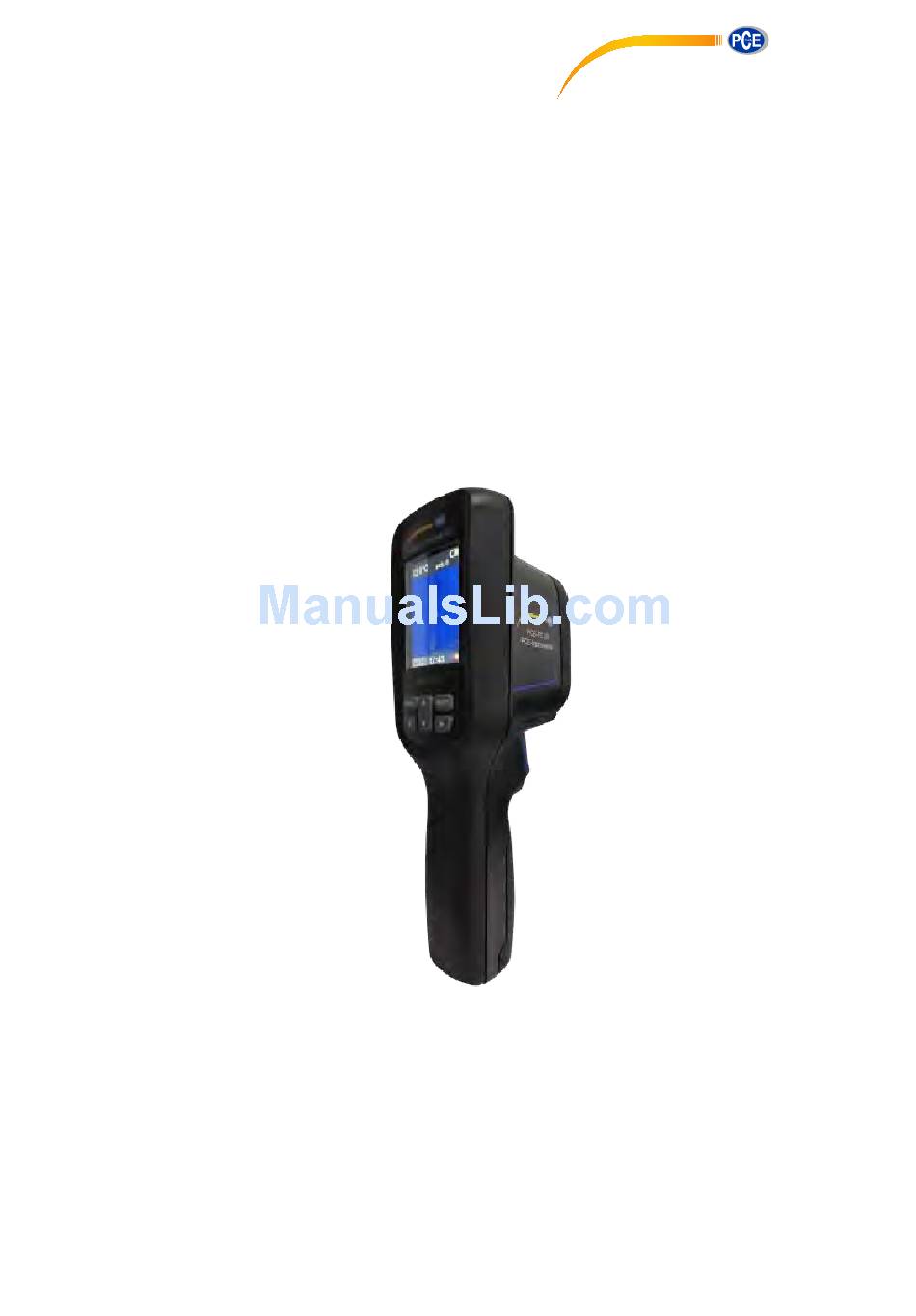

User's Manual

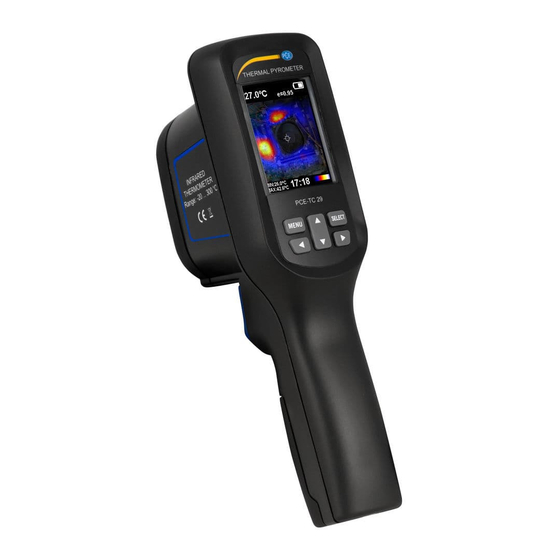

Infrared Thermometer
PCE-TC 29
Please read this user's manual thoroughly before using this unit
and keep it properly for your future reference.
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-TC 29
Summary of Contents for PCE Instruments PCE-TC 29
- Page 1 PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0...
-
Page 2: Table Of Contents
Contents 1、Safety ............. 2 2、Introduction ........... 3 3、Features............3 4、Specification ..........4-5 5、Structure Description ........5 6、Menu Description .......... 6 7、Operation description ....... 7-10 8、Notes ............12 9、Emissivity ............ 13 10、Accessories ..........14 11、Warranty ............ 14 12、Contact……………………………………15 13、Disposal………………………………………….16... -
Page 3: 1、Safety
1.Safety 1) Read all safety information before you use the Product. Carefully read all instructions. Use the Product only as specified, or the protection supplied by the Product can be compromised. 2) Do not use the Product around explosive gas, vapor, or in damp or wet environments. Environment conditions: 1)RH≤90％（Non-Condensation）... -
Page 4: 2、Introduction
2.Introduction The Product is Visual IR Thermometers that combine a center-point temperature measurement with a blended digital image and heat map overlay. The thermal image removes the time necessary for component by- component measurement associated with a traditional spot thermometer (radiometer). -
Page 5: 4、Specification
4.Specification display 2.5″color LCD display IR solution 60×60（3600 pixels） Visible light image 300,000 pixels resolution Field of view 20×20° Thermal sensitivity 0.15℃/0.27℉ Temperature range -20～300℃/-4～572℉ accuracy ±2% or reading±2℃/3.6℉ emissivity Adjustable 0.1～1.0 Image frequency Spectral band 8-14um Focus mode fixed Ironbow, Rainbow, Rainbow High Color palette Contrast, Grayscale (white hot) and... -
Page 6: 5、Structure Description
Memory view Scroll through all saved images and view on-screen Power save Power off after 12 minutes of inactivity Working temperature -5～40℃/23～104℉ Storage temperature -20～55℃/-4～131℉ Relative humidity 10～80%RH Electromagnetic CE EN61326-1:2006 Compatibility Overrange indiction over Power supply 4 AA batteries Battery life weight 310g... -
Page 7: 6、Menu Description
6. Menu description Time setting Image store Background light setting Temperature unit setting Background temperature trimming Capacity of memory card Color palette setting Emissivity setting Hot and cold markers Background temperature setting... -
Page 8: 7、Operation Description
7.Operation instruction Basic function 7.1.1 press“ ”for 5 seconds，it can turn on or turn off the meter. After power on the meter， press“ ”for 1 second， it enter basic function setting， Only five options show on the display at one time，press“ ”scroll through the display menu .press“... - Page 9 Backlight setting After entering menu options，press“ ”to choose backlight option, press“ ”to enter backlight adjustment mode, press“ ”to adjust the brightness, after the adjustments are made, press“ ”to exit the edit mode. Brightness is default 50%. LED brightness Press image capture key for 5 seconds, LED brightness turn on，coordinating with visible camera work.
- Page 10 Grayscale palettes. Grayscale(black Grayscale(white hot) hot) Rainbow high contrast Ironbow Reflected Background Temperature The background temperature can be set between 0°C ~36 °C(32～96.8℉). Compensation for reflected background temperature is set in the Background tab. Very hot objects or very cold objects can affect the apparent temperature and measurement accuracy of the target or object, especially when surface emissivity is low.
- Page 11 Image Blending Image blending makes it easier to understand infrared heat maps through the use of an aligned visible image and infrared heat map. The Product captures a visible image with each infrared heat map to exactly show the target area and more effectively share it with others.
- Page 12 7.10 Image Capture and Save In measuring mode，press image capture key, the screen will show “store photos yes no”. Press“ ”to save image，press“ ”to cancel the image you capture. If “NO SD” appear in left bottom of the screen，it indicates no SD card is in the slot, if FULL appear in left bottom of the screen, it indicates SD card is full.
-
Page 13: 8、Notes
7.12 Emissivity ”to enter menu mode ， press“ ”to choose emissivity module ， Press“ press“ ”to enter emissivity adjust interface，press“ ” to adjust emissivity values. After the adjustment are made, press“ ”to exit. 8. Notes All objects radiate infrared energy. The quantity of energy radiated is based on the actual surface temperature and the surface emissivity of the object. - Page 14 9.Emissivity Thermal Thermal Substance Substance emissivity emissivity Aluminium Glass 0.30 0.90 … 0.95 Asphalt Iron oxides 0.90～0.98 0.78 … 0.82 Concrete Lacquer 0.95 0.80 … 0.95 Leather Plastic 0.95 0.85 … 0.95 Ceramic 0.90～0.95 paper 0.70 … 0.94 Copper Sand 0.50 0.90 Brick...
-
Page 15: 10、Accessories
10.Accessories User’s manual ① canvas bag ② SD card ③ SD card reader ④ 11. Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms. -
Page 16: 12、Contact
12. Contact If you have any questions about our range of products or measuring instruments please contact PCE Instruments. By post: By post: PCE Instruments UK Ltd. PCE Americas Inc. Units 12/13 Southpoint Business Park 711 Commerce Way Ensign Way, Southampton... -
Page 17: 13、Disposal
We either re-use them or give them to a recycling company which disposes of the devices in line with law. For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations. If you have any questions, please contact PCE Instruments.
