ASSEMBLY INSTRUCTIONS

We have designed our furniture with you , the customer in mind . Our clear , easy to follow ,

step by step instructions will guide you through the project from start to finish .

Feel confident that this will be a fun and rewarding project . The final product will be a quality

piece of furniture that will go together smoothly and give years of enjoyment .

Please do not return to the store

STOP

Broken or missing parts?

Need help with assembly?

If you have any questions just call 1-800-468-6447 or email us at

parts@convenience-concepts.com

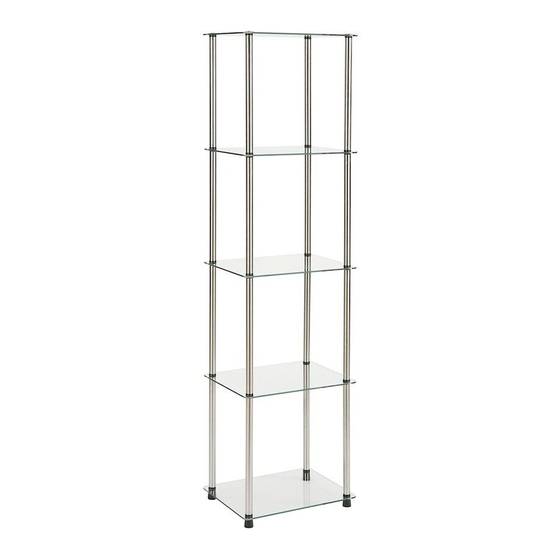

5 TIER GLASS TOWER

157010

Need help?

Do you have a question about the 157010 and is the answer not in the manual?

Page 1 5 TIER GLASS TOWER 157010 ASSEMBLY INSTRUCTIONS We have designed our furniture with you , the customer in mind . Our clear , easy to follow , step by step instructions will guide you through the project from start to finish .
Page 2 Hardware List (B) Shelves x 5 (A) End Caps x 4 (C) Long Metal Poles x 16 (D) Plastic Feet x 4 (F) Eyelet Screw X 2 (E) Cable Tie X 2 Plastic Anchor X 2 Page 2 of 4...
Page 3 Step 1 (1) Place Shelf (B) on top of Plastic Feet (D). (2) Gently screw Metal Poles (C) into Feet (D) using care not to over tighten. Step 2 (1) Place Shelf (B) on top of Metal Poles (C). (2) Gently screw Metal Poles (C) into unit. (3) Repeat parts 1and 2 for third and forth shelf.
Page 4 Step 3 (1) Place Top Shelf (B) onto Poles (C). (2) Screw End Caps (A) into unit (3) Drill holes slightly smaller than anchors (G) into drywall and gently tap anchor s into holes. (4) Screw eyelet Screws (F) into anchors and fasten unit to wall using cable ties (E).
