Kohler ACCLIV 33059T-4 Installation Instructions
Kohler ACCLIV 33059T-4 Installation Instructions

Kohler ACCLIV 33059T-4 Installation Instructions

Single handle lavatory faucet

Advertisement

Quick Links

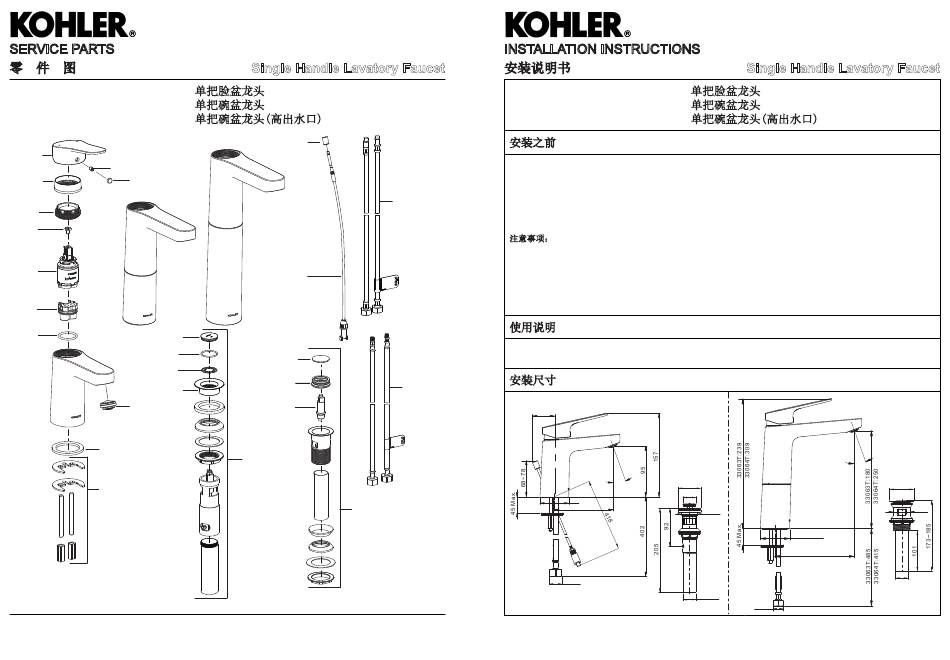

SERVICE PARTS
零 件 图
33059T-4
33063T-4
33064T-4
1414921**
833438
3008523
1414936**
1416729
3012353
1310075
1343771
1239175
1353824**
1353825
1353835
1353827**
1213964
89098
834704
**订购时请说明颜色编号
**Color code must be specified when ordering
1416309-2-A
ACCLIV
Single Handle Lavatory Faucet
单把脸盆龙头
单把碗盆龙头
单把碗盆龙头(高出水口)
33059T:
1349081**
33059T:
1349078
1102888**
1102889
1102892
33059T:
1367427**
33063T/33064T:
1095926**
珂灵
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒
公司保留任何时候不经通知即可改变产品特性、包装
或产品可供类型的权利。
33063T/33064T:
1146748
说明书包括重要的安装、保养及清洁方面的内容,请
把这些资料交给用户阅读。
注意事项:
1. 一定要先彻底冲洗供水管以清除管道中的杂质。
2. 尽可能在安装脸盆之前安装水龙头。
3. 检查供水管有无损坏和漏水。如需要,进行替换
和维修。
4. 遵守当地管路安装条例。
5. 切断供水管路。
使用说明
轻轻提起把手,顺时针旋转把手为热水,逆时针旋
转把手为冷水。
安装尺寸
33059T:
1417230
41~45
54
G1/2˝
4
1416309-2-A
Single Handle Lavatory Faucet
33059T-4
单把脸盆龙头
33063T-4
单把碗盆龙头
33064T-4
单把碗盆龙头(高出水口)
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics,
packaging, or availability at any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush supply pipes thoroughly to remove debris.
2. If possible, install this faucet before installing the
lavatory.
3. Inspect the supply tubing for damage and leakage.
Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn
counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
33059T-4
20º
Ø54
Ø32.5
109
Ø35.5
Ø31.75
G1/2˝
珂灵
ACCLIV
33063T-4 33064T-4
20º
Ø56
Ø42
33063T:54
33064T:55
33063T:147
33064T:149
Ø31.75
1
