Summary of Contents for Kohler 32E

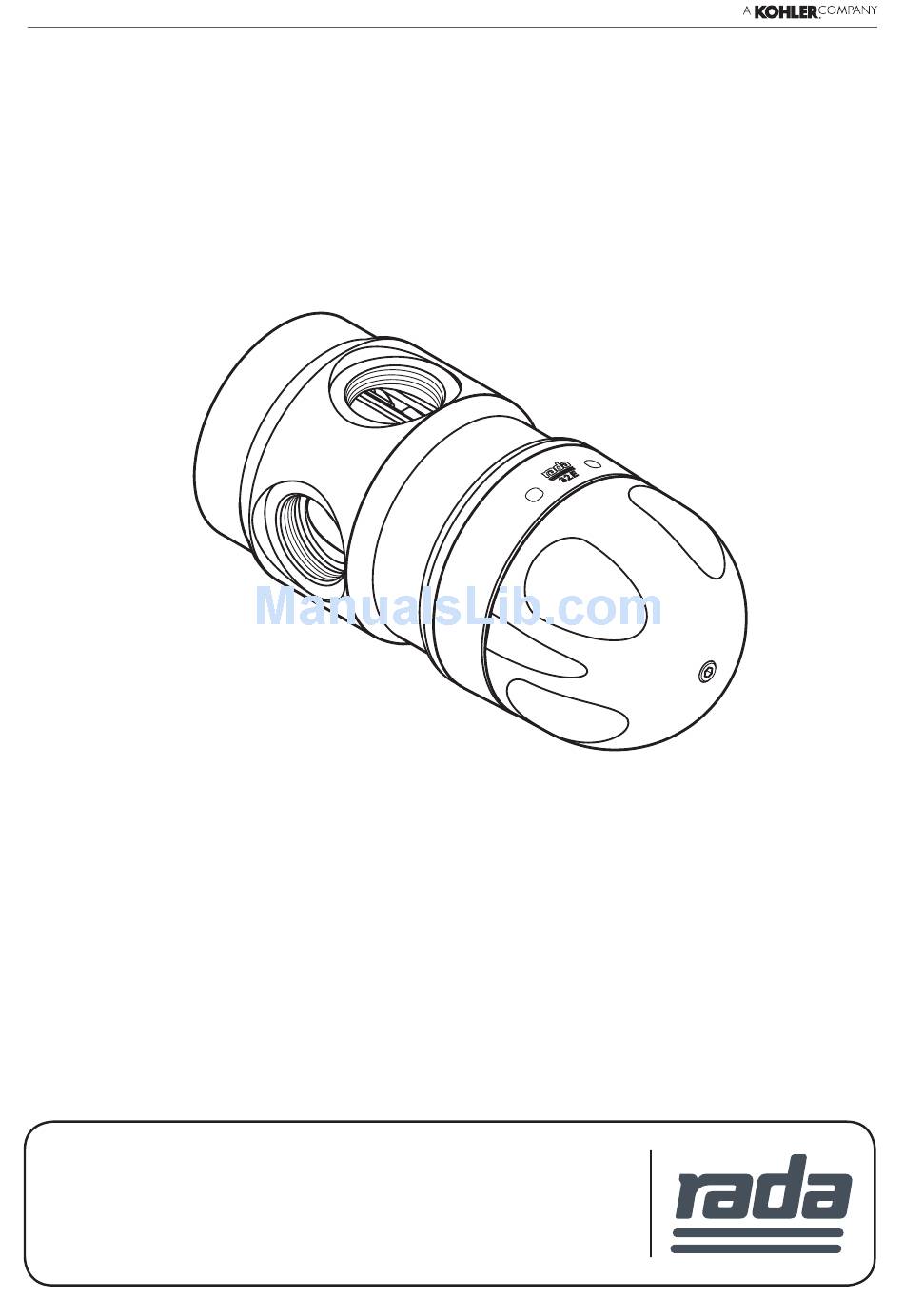

- Page 1 Product Manual Installer: This manual is the property of the customer and must be retained with the product for maintenence and operational purposes. 1290447-W2-B...
- Page 2 1290447-W2-B...
- Page 3 X 1 q X 1 q X 1 q X 2 q X 1 q X 1 q X 1 q X 2 q X 3 q 1290447-W2-B...
- Page 4 32E BSP X 1 q X 1 q X 1 q X 1 q X 3 q 1290447-W2-B...
- Page 5 320 F X 1 q X 1 q X 1 q X 1 q X 3 q 1290447-W2-B...
- Page 6 RADA 320 C Ø83.5 mm 49 mm 256 mm 185 mm 314.5 mm 32E BSP 137 mm RADA 320 OEM Ø83.5 mm 49 mm 185 mm 1290447-W2-B...
- Page 7 320 F RADA 320 CF 118.5 mm Ø83.5 mm 49 mm 185 mm 1290447-W2-B...
- Page 8 No two hazards are exactly the same and each should be evaluated on a case-by-case basis". Point of Use Rada 32E Thermostatic Mixing Valves are suitable for installation at or near a point potential for simultaneous operation. 1290447-W2-B...
-
Page 9: Technical Specifications
For Emergency Eye Wash Stations - For single or multiple fixture installation, the Rada 32E will control accurately at flow rates from 76 to 8 l/min. In flow applications between 76 and 38 l/min, the Rada 32E will pass approximately 50% of original flow setting in hot failure mode. -
Page 10: Safety Warnings
Critical components are Cartridge Assembly pt. no. 1812.007 and inlet service pack 1847.232 or 1847.233 where applicable. Rada 32E Operating Specifications *70°C Maximum Hot Water Supply Temperature Minimum Cold Water Supply Temperature 1°C... - Page 11 Warning! The constant cold water flow design ensures that in the event of a hot water supply failure the Rada 32E will allow cold water to flow to the fixture. In addition, Rada 32E is designed to shutdown the hot water supply in the event of a cold water supply failure.
- Page 12 6.0 mm 3.0 mm 3.0 mm 6.0 mm 6.0 mm 1290447-W2-B...
- Page 13 Install the connections 320 F 32E BSP 1290447-W2-B...
- Page 14 1 min 3.0 mm 1290447-W2-B...
- Page 15 Install the pipework 32E BSP 1290447-W2-B...
- Page 16 320 F 32E shown. The rest of the installation procedure is similar for all variants of the 32 valve. 1290447-W2-B...
- Page 17 The blend temperature obtainable through the mixing valve should be limited to prevent selection of a flushing temperature that is too hot. The Rada 32E is fully performance tested and then pre-set at the factory to a 25°C blend outlet temperature. TEMPERATURE SHOULD NOT BE ADJUSTED.
-
Page 18: Servicing And Maintenance
Operate the fixture(s) at full flow and intentionally “fail” the cold water supply to the Rada 32E. All flow through the fixture should shut off completely within 2 seconds. If flow does not shut off to specification, refer to “Fault Diagnosis”. - Page 19 Maintenance Procedure - Cartridge Replacement Identification Label Fixed Here WARNING! This cartridge is only suitable for use with the 32E Emergency Shower at low blend temperatures 25˚C or below. Do not use in any other product. F17170/1 Kohler Mira Limited, Jan 2017 F17170_1 32E Warning Label.indd 1...
- Page 20 WARNING! This cartridge is only suitable for use with the 32E Emergency Shower at low blend temperatures 25˚C or below. Do not use in any other product. F17170/1 Kohler Mira Limited, Jan 2017 F17170_1 32E Warning Label.indd 1 09/01/2017 09:04:11...
-
Page 21: Spare Parts
Spare Parts 414.80 Identification Label Fixed Here 1812.007 414.92 1847.111 1812.013 1847.242 1847.184 32E - 1847.153 32E BSP - 1847.093 1847.232 1847.236 1847.233 1847.235 Description 1812.007 Cartridge Assembly 414.80 Hub Pack 1847.24 Backplate 1847.242 Knob Pack Compression Fitting - Not Illustrated 523.19... -
Page 22: Fault Diagnosis
Fault Diagnosis Symptom Cause/Action 1. Only Hot or Cold Water From a. Inlet supplied reversed (i.e. hot supply to cold inlet) can be diagnosed by Outlet isolating the inlet supplies and removing the valve cartridge. With cartridge removed, turn the water on at each supply individually and at a very low flow rate (water will run out of the front of the valve body). - Page 23 Notes 1290447-W2-B...
-
Page 24: Customer Service
Please Note! Calls cost 7p per minute plus your phone company’s access charge Fax: 01242 282404 E-mail: rada_technical@mirashowers.com or visit www.radacontrols.com By Post: Rada Controls, Cromwell Road, Cheltenham, Gloucestershire GL52 5EP For Eire Only Telephone: 01 531 9337 Email: CustomerServiceEire@mirashowers.com 1290447-W2-B Kohler Mira Limited, April 2017...
