THANK-YOU FOR CHOOSING KOHLER COMPANY
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation.
If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers are listed on
the final page. Thanks again for choosing Kohler Company.
BEFORE YOU BEGIN
Read the installation guide carefully and install the product accordingly.
The product information contained in this publication is correct at the time of printing. Kohler Co. reserves the right to
implement changes to this guide, product characteristics, packaging and availability at any time without further notice.
Do not use corrosive cleaners or solvents in or on the tank. This may damage the tank. Mild detergent can be used.
Do not use any spare parts which are not supplied by Kohler. Kohler will not be responsible for any damage due to the
installation of non approved spare parts.
Observe all local plumbing and building codes. Installation shall be in accordance with AS/NZS 3500 and AS/NZS 6400.
WARNING
This product is designed for a water supply pressure range of 20 psi (137kPa) minimum to 72.5psi (500 kPa) maximum.
Any installations where the supply pressure is outside of these limits will not be covered by warranty.
ORDERING INFORMATION
HYDRO-TOWER 300 PNE IWT With Frame 3/4.5 ................................................................................................. 20010A-PNE-NA
PEBBLE Pneumatic In-Wall Tank Faceplate (For Separate Purchase) ...................................................................20341T-PNE-NA
SPECIFICATIONS
Liters per flush
Operating temperature
range

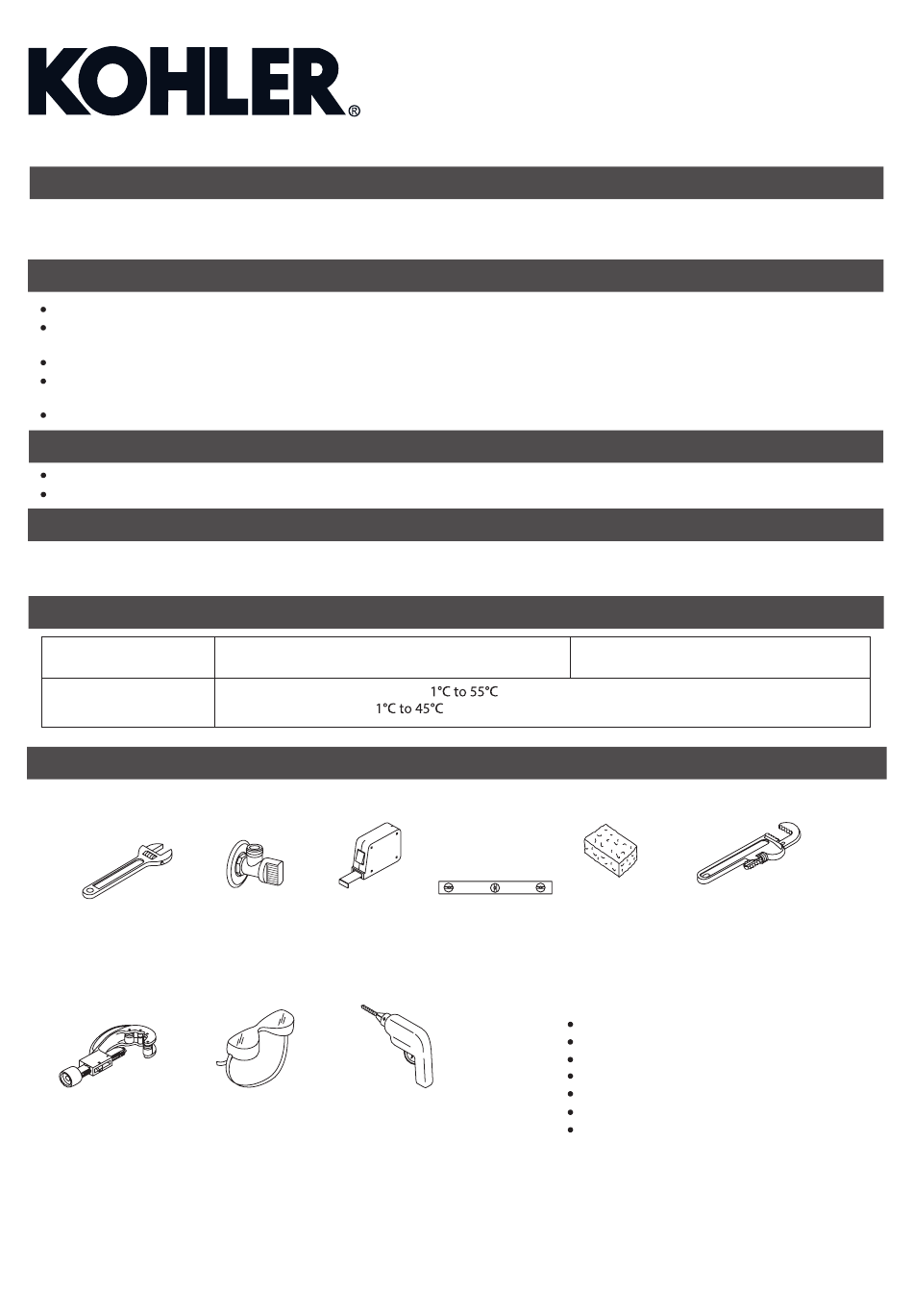

RECOMMENDED TOOLS AND MATERIALS
10'' Adjustable
Wrench
Tubing Cutter
Safety Glasses
1288805-A02-A
20010A-PNE-NA
Environmental temperature:
Water temperature:
Supply
Tape
Shut-off
Measure
Valve
Drill and
assorted bits
HYDRO-TOWER 300
Full flush volume: 4.5L
Half flush volume: 3L
Level
Sponge
Plus:
Connector
Metal File
1/2'' Nut Driver/Socket
Saw
Screwdriver
M8 Coach/TEK Screws x 4
Apprpriate fasteners for masonary
or timber construction.
-1-
INSTALLATION INSTRUCTIONS
PNEUMATIC IN-WALL TANK
WITH FRAME (SLIM)
20010A-PNE-NA
20341T-PNE-CP
Pipe wrench
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler HYDRO-TOWER 300 20010A-PNE-NA
Summary of Contents for Kohler HYDRO-TOWER 300 20010A-PNE-NA
- Page 1 Do not use corrosive cleaners or solvents in or on the tank. This may damage the tank. Mild detergent can be used. Do not use any spare parts which are not supplied by Kohler. Kohler will not be responsible for any damage due to the installation of non approved spare parts.
- Page 2 ROUGH-IN 20010A-PNE-NA installed with 20341T-PNE-CP Note: Set the final cistern height to achieve the required pan height. Air hose Ø90 45~95 Finished Floor UNIT mm A1) INSTALLATION FOR IN-WALL TANK WITH FRAME A) The In-wall tank with frame (20010A-PNE-NA) should be used with wall hung toilets. Note: Minimum cavity (stud pocket) dimensions for installation of the in-wall tank, 555mm wide, 90mm deep.
- Page 3 4. Loosen the nut securing the adjustable bracket and extend to the required height.Tighten the nut. 5. Fit the toilet fixing bolts in the required position to suite the pan fixing holes (180mm or 230mm) refer to toilet installation instruction. If no fixing Pan fixing kit is supplied with the pan, use the fixing kit bolts...
-
Page 4: S-Trap Installation
S-trap installation Tank frame 1. Loosen the screw on waste pipe support bracket if required. 2. Then insert S-trap waste pipe into the waste pipe support bracket. 3. Adjust the pipe position and tighten the waste pipe support bracket screw to secure S-trap the discharge elbow. - Page 5 Prepare and finish the wall Shield IMPORTANT: a. When preparing the wall, the wallboard/tiling cut-out must fit very neatly Access panel around the square cover of flush panel. No large gaps are permitted (tolerance of approx 1mm). b. There may be significant amounts of dust when preparing the wall - ensure to fit dust cover over cistern opening and protect the electrical fittings and pipework.
- Page 6 Pinch plates A3-2 : Remote locking plate installation Locking plate Locking ● 7~20mm thickness is recommended for Pinch plate plate the finished wall and at least 80mm gap Screw Finished 7~20mm Air hose for faceplate. wall recommended ● Use four screws to fix locking plate by four pinch plates to the wall.
- Page 7 10. Place the toilet onto the fixing bolts. (Ensure the toilet is supported at all times.) 11. Fit the rubber gasket, nut and decorative cap onto the fixing screws to secure the toilet in place. Long screw 12. Ensure the toilet is level. Screw cover 48mm-58mm Gasket...
- Page 8 7. Push the clip of the toilet detergent box and lift to remove from cistern. Clip 8. Disconnect the oultet valve actuator arms for the full and reduced flush by pushing towards the centre of the cistern Snap (locked) while applying pressure to both top and bottom of the pivot. Remove the pneumatic actuator assembly by lifting the rear of the frame to release the snap clips.
-
