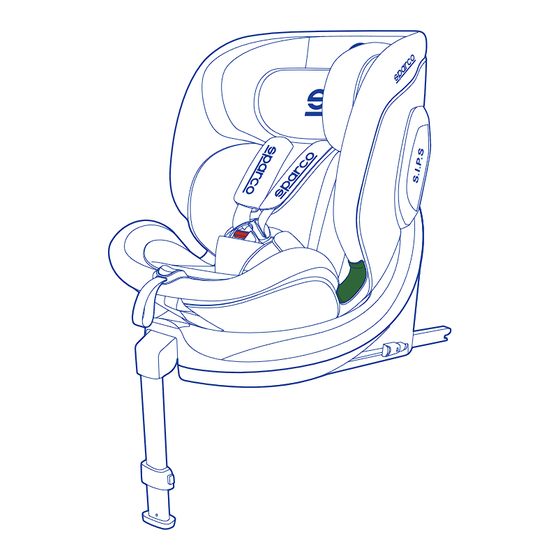

- Page 1 CHILD CAR SEAT SK7000I INSTRUCTION MANUAL 40-150 This product is ECE R129/03 certified. Product use is prohibited in the USA. Check your country’s product compliance regulations prior to use. 202407...
- Page 3 WARNING! Read the instructions carefully before using and keep for future reference. ISOFIX Insertion Aids (optional) ISOFIX Fastening Points (vehicle) Headrest Seat Cover Shoulder Pads Shoulder Straps Harness Buckle Crotch Pad Adjustment Button Recline Handle Crotch Strap 360° Rotation Adjuster Seat “Cradleyou”...
-
Page 4: Adjusting The Seat Angle
ROTATION ADJUSTING THE SEAT ANGLE First Level Second Level Third Level Fourth Level 40 105CM ≤18KG FACING FORWARDS... - Page 5 Fifth Level Sixth Level Eighth Level Seventh Level ≤ FACING BACKWARDS PUTTING THE CHILD IN...
- Page 6 PUTTING THE CHILD IN...
- Page 7 STORE 5-POINT HARNESS...
- Page 8 isoFIX AND SUPPORT LEG CLICK...
- Page 9 isoFIX AND SUPPORT LEG USING CHILD SAFETY SEAT 40 87CM 40 87CM...
- Page 10 USING CHILD SAFETY SEAT CLICK...
- Page 11 CLEAN...
- Page 12 RISK of minor personal injury WARNING! RISK of material damage CAUTION! Useful notes TIP! The SK7000I is exclusively intended to secure your child in your vehicle. Tested and approved according to ECE R129 Installation method Installation direction Body size ISOFIX+Support Leg Facing backwards 40-105cm;≤18kg...
-
Page 13: Use In The Vehicle
Please refer to the vehicle handbook information about vehicle seats which is certified for the use of children's restraining systems according to ECE R16. During use, be sure to observe any restrictions relating to airbags. SK7000I usage options: Vehicle seating position with ISOFIX Safety seat i-Size NOT i-Size √... - Page 14 WARNING! Do not use facing forwards before the child’s age exceeds 15 months (refer to instruction). 1. ROTATION Pull the 360° rotation adjuster (12) out with your finger, rotate the seat shell. Rotate the seat shell 90° towards the vehicle door. Now you can put your child in or take him/her out easily.
- Page 15 40-105cm: facing backwards installation, use fifth level to eighth level. 3.PUTTING THE CHILD IN Press the strap adjustment button (9) and loosen the shoulder straps (6) of the child seat as much as possible. To open the harness buckle (7) by pressing the red release button (16) then put the child in the safety seat.
- Page 16 4.STORE 5-POINT HARNESS The child’s height is more than 100 cm, the 5-point safety harness should be stored away and the child should be secured with the adult seat belt. Open the harness buckle (7) (refer to 3.2). Remove the seat “cradleyou”...
- Page 17 TIP! The ISOFIX insertion aids facilitate the installation of the child safety seat with the use of the ISOFIX fastening points and prevent damage to the vehicle seat covers. As long as they are not used, remove them and keep them in a safe place.
- Page 18 Move the child safety seat backwards and push the backrest against the vehicle seat. CAUTION: The child safety seat must always be secured when it is in the vehicle, even if no child is being transported. 6.USING THE CHILD SAFETY SEAT 40-105cm:Installed in facing backwards position with ISOFIX(re- fer to 5.2,5.3)and Support Leg(refer to 5.5,5.6).
- Page 19 Pull out the belt from the belt ALR (Automatic Locking Retractor). Diagonal belt through the same side of belt guidance (14) on headrest, then pull the diagonal belt and lap belt together through the other belt guidance (17) on the base. Keep the diagonal belt at the position of belt guidance (14) between the outside of the neck and shoulder (in the middle of point point...
-
Page 20: Care And Maintenance
(B) lies in horizontal position, then harness buckle (7) can take out from slot (A). To re-install harness buckle (7), follow the steps refer (7.2) in reverse order, until the metal plate is hooked into the harness slot. Thread the buckle through the crotch pad (8) on the cover. Make sure the metal plate under slot (C) when you are using. - Page 21 Only use authentic SK7000I seat covers. The seat cover is an integral part of the child safety seat and is key to ensure the trouble-free functionality of the system. Replacement seat covers are available from your dealer. The cover can be removed and washed with a mild detergent on a washing.
-
Page 22: Safety Notes
SAFETY NOTES NOTICE Notice regarding i-Size category Enhanced Child Restraint Systems (40-105cm) This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle user's manual. - Page 23 Make sure any straps holding the ECRS to the vehicle should be tight.Any straps restraining the child should be adjusted to the child's body. Make sure straps should not be twisted, and Support Leg should be firm contact with the vehicle floor. Make sure in 100-150cm body size, the lap vehicle adult seat belt must be worn in such a way as to properly secure the pelvis of the child.
- Page 24 DO NOT use the ECRS if position of the vehicle seat buckle to the main load bearing points on the restraint is unsatisfactory, please contact the manufacturer in doubt about this point. DO NOT use any load bearing points other than those described in the instructions and marked in the ECRS, please contact the manufacturer if in doubt about this point.
- Page 25 P r o d u c e d u n d e r S p a r c o ’ s l i c e n s e b y : CARPA DESIGN EUROPE, S.L. C/ Duque de Calabria, 4 bd, 46005 Valencia SPAIN tel: +34 963 125 049, info@carpa-europe.com w w w .
