- Page 1 CHILD CAR SEAT SK6000I INSTRUCTION MANUAL 40-135 202201...
-
Page 2: Table Of Contents
DIRECTORY TO DEAR USER PRODUCT OVERVIEW SAFETY WARNING USAGE 3.1 Install position of the child seat in vehicle 3.2 Adjust the headrest 3.3 Checking the shoulder strap height 3.4 Usage of buckle 3.5 Adjust the length of harness 3.6 Removable and hidden objects 3.7 The method to store shoulder straps with chest pad and buckle 12 3.8 Adjust the ISOFIX attachments 3.9 Usage of the support leg... -
Page 3: To Dear User
TO DEAR USER Congratulations on your purchase of the child restraint system. Please read this instruction manual carefully before use. If you have any questions concerning the use of this child restraint system, please do not hesitate to contact with us. IMPORTANT DO NOT use forward facing before the child’s age exceeds 15 months. -
Page 4: Product Overview

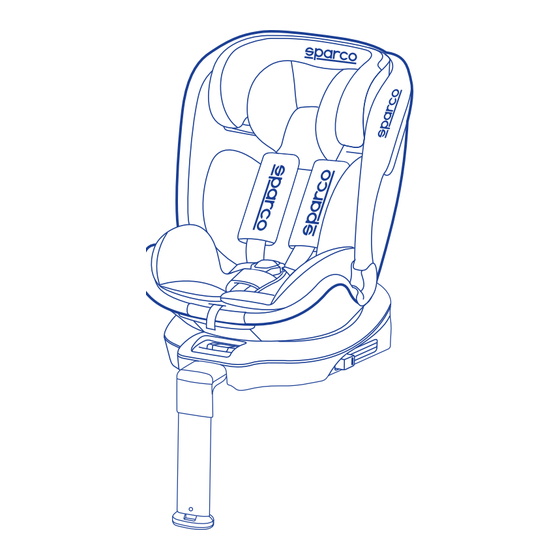

PRODUCT OVERVIEW i-Size ECRS（40-105cm ）Notice: This is an i-Size Enhanced Child Restraint System.It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer. - Page 5 PRODUCT OVERVIEW Headrest The guide groove of the headrest Shoulder pads Comfortable cushion Buckle Crotch pad The guide groove of the body Body Angle adjuster Harness adjuster strap Support leg unlock button Rotation adjuster Base Handle of headrest ISOFIX release button ISOFIX attachment Support leg...
-
Page 6: Safety Warning
SAFETY WARNING This product can be rearward-facing used for children with a stature of 40-105cm (Weight: 0-18kg, about 0-4 years old), using ISOFIX+Support leg to fix the child restraint system. This product can also be forward-facing used by 5-point safety system for children with a stature of 83-105cm (Weight：... - Page 7 SAFETY WARNING Any straps restraining the child should be adjusted to the child’s body; Straps should not be twisted; Ensure that any lap strap is worn low down, so that the pelvis is firmly engaged, shall be stressed; The device should be replaced when it has been subjust to violent stresses in an accident;...
-
Page 8: Usage
USAGE 3.1 Install position of the child seat in vehicle Only suitable if the approved vehicles are fitted with 3 point safety-belt, approved to UN/ECE Regulation No.16 or other equivalent standards. Not to use rearward-facing in seating positions where an active frontal airbag is installed. -
Page 9: Adjust The Headrest
USAGE 3.2 Adjust the headrest Picture 1 As shown in picture 1, pull the adjusting ring to adjust the headrest up and down, and hold it to the correct position. The headrest has 7 gears which can be adjusted up or down according to the child's height. -
Page 10: Usage Of Buckle
USAGE 3.4 Usage of buckle buckle (sketch map) Step1:Get the left and the right pieces of buckle together. Step2:Insert the two pieces into the slot of the buckle .At the same time, hearing "click" means the buckle gets stuck, pull the pieces of the buckle and check whether the buckle is locked correctly. -
Page 11: Removable And Hidden Objects
USAGE Picture 2:Loosen the harness. The harness can be slackened by pressing the adjuster(under the seat cover)on the front of the seat. Press down the adjuster as you grip the two harness with your another hand.Pull the harness towards you to loosen the harness. Picture 2 3.6 Removable and hidden objects cushion... -
Page 12: The Method To Store Shoulder Straps With Chest Pad And Buckle
USAGE 3.7 The method to store shoulder straps with chest pad and buckle The shoulder straps and shoulder pads Step 1:Open the buckle and the cloth cover of seat back; Step 2: Store the shoulder straps with shoulder padon both sides of the seat. -
Page 13: Adjust The Isofix Attachments
USAGE 3.8 Adjust the ISOFIX attachments ISOFIX release button ISOFIX locking button The ISOFIX attachments can be adjusted for many positions to fit the di erent positions of ISOFIX low anchorages expending from car seat. Press down the release button to adjust ISOFIX attachment of both sides to the longest. -
Page 14: Usage Of The Support Leg
USAGE 3.9 Usage of the support leg When child stature in 40-105cm, the support leg is in the usage state Take out the support leg from the lower cover of the base, which keep about 90°to the base. Press and hold the support leg lock button, while holding the support leg and pull it out to correct position. -
Page 15: The Method Of Rotate Seat
USAGE 3.10 The method of rotate seat Pull out the rotation adjuster with one hand and rotate the safety seat with the other hand, both left and right directions can be rotated; Rotation adjuster When you hear a "click" sound, it is indicated that the gear is in place. -
Page 16: Usage Of Reclining System
USAGE 3.11 Usage of reclining system Pull out the angle adjuster to adjust the seat front and rear. Bady Angle adjuster Upright gear - 1st gear Recline gear - 2nd gear Recline gear - 3rd gear Recline gear - 4th gear The car seat can recline in 4 di erent positions, as shown in the above picture. -
Page 17: Installation
INSTALLATION 4.1 Installed rearward-facing Stature: 40-105cm Usage: ISOFIX+Support leg DO NOT use forward facing before the child’s age exceeds 15 months. First, pull out the support leg of the base (see 3.9); Second, pull out the ISOFIX attachment (see 3.8); Third, place the child safety seat on the car seat;... - Page 18 INSTALLATION Rotate the seat to the position of the car door, then put the child in the safety seat, adjust the shoulder straps and lock the buckle (see 3.3~3.5); Finally, fix the seat in rearward.
-
Page 19: Installed Forward-Facing
INSTALLATION 4.2 Installed forward-facing Stature: 83-105cm Usage: ISOFIX+Support leg First, pull out the support leg of the base (see 3.9); Second, pull out the ISOFIX attachment (see 3.8); Third, place the child safety seat on the car seat; Finally, put the child in the safety seat, adjust the shoulder straps and lock the buckle (see 3.3~3.5). -
Page 20: Installed Forward-Facing
INSTALLATION 4.3 Installed forward-facing Stature: 105-135cm Usage①: Fixed with ISOFIX + adult three-point seat belt. Put away the support leg (see 3.9) Pull out the Fix attachment (see 3.8) Place the child on the child restraint system. Adjust the headrest height to ensure that the headrest is at the child's shoulder height and fixed well;... - Page 21 INSTALLATION Stature: 105-135cm Usage②: Fixed with adult three-point seat belt. Put away the support leg (see 3.9) Stature 105-135cm: the above items need to be hidden Shoulder belt Lap belt After belt fixed, the seat buckle and belt guide hook can not be placed in this position.
-
Page 22: Maintenance And Cleaing
MAINTENANCE AND CLEAING 5.1 Daily maintenance In daily use, check periodically the child seat. The child seat should be replaced after an accident. Please keep this child seat in dry and ventilated place to avoid damp moldy. If the child seat becomes dusty,clean the seat belt and the plastic pieces by swiping them with a damp sponge and let it dry under ambiance. -
Page 23: Washing Instruction
MAINTENANCE AND CLEAING 5.2 Washing instruction Never use any solvant, chemical detergent or lubricant on any part of your child seat. 30℃ Hand wash,water Do not iron Do not Dryclean, any Do not temperature bleach tumble dry solvent except trichloroethylene. below 30℃... -
Page 24: The Main Technical Parameters
THE MAIN TECHNICAL PARAMETERS 620mm 443mm 565mm Distance from front to back of the seat: 565mm Distance form left to right of the seat: 443mm Height of the seat: 620mm Weight of the seat: 11 ± 0.5kg...
