Sparco F1000Ki G123 Instruction Manual

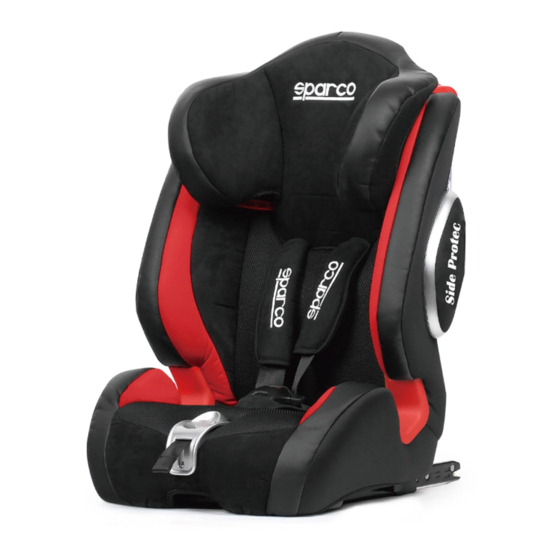

Child car seat for groups 1+2+3
Hide thumbs
Table of Contents

Advertisement

Quick Links

GB
CHILD CAR SEAT FOR GROUPS 1+2+3
DK
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1000Ki G123 and is the answer not in the manual?

Questions and answers

Related Manuals for Sparco F1000Ki G123

Summary of Contents for Sparco F1000Ki G123

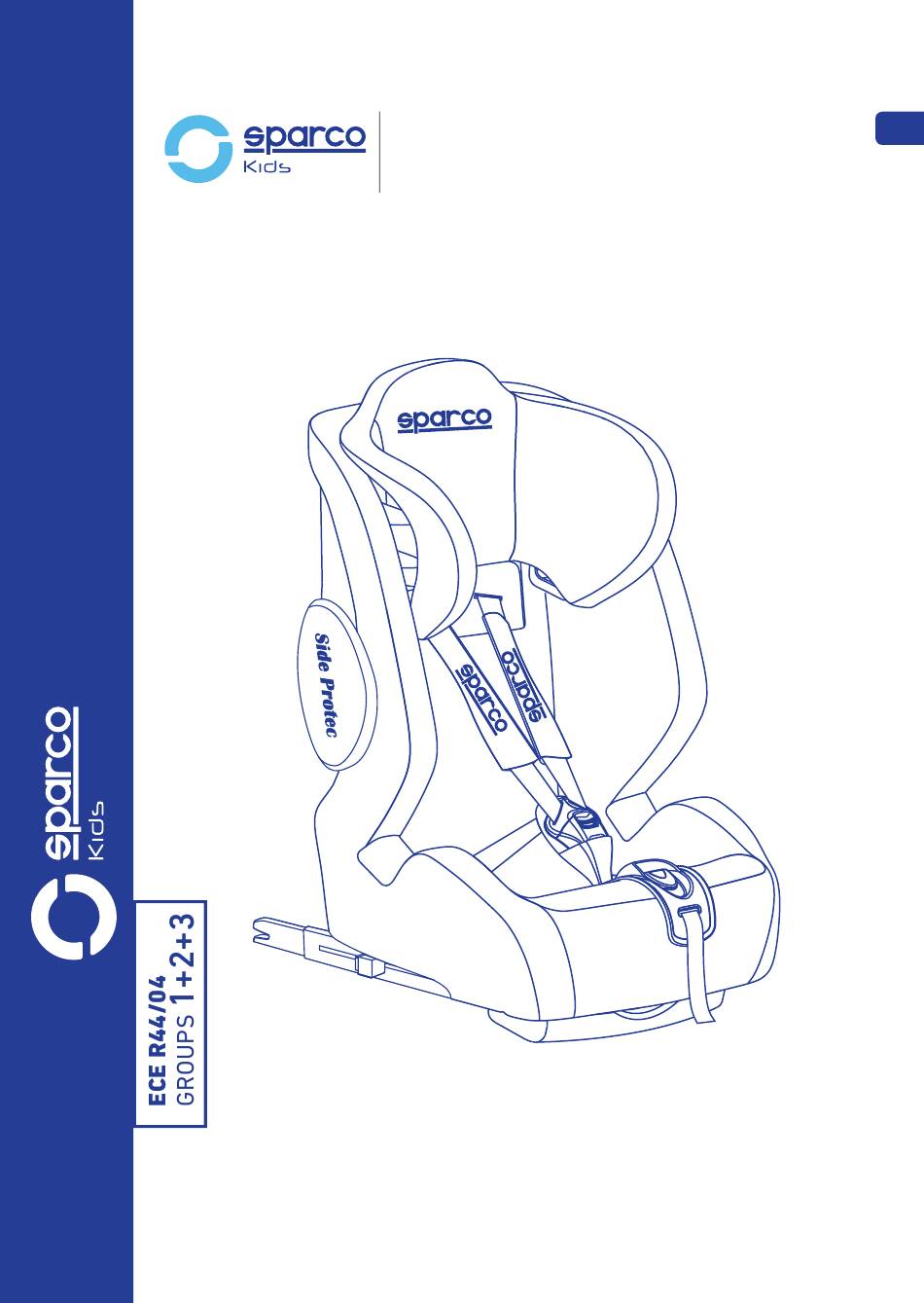

  • Page 1 CHILD CAR SEAT FOR GROUPS 1+2+3 INSTRUCTION MANUAL...
  • Page 2 1+2+3 Child Car Seat for Groups Thank you for your purchasing our child car seat. Please contact our Customer Service if you have comments on the child car seat, wish to replace certain accessories, or seek help. Please note that the child car seat is only suitable for fitting on a car seat compliant with ECE R16 or equivalent standards with a three-point seat belt with an emergency locking retractor.
  • Page 3 Precautions: W A R N I N G ! Do not fit the child car seat on a car seat in front of which an airbag is installed, since the airbag may harm the child upon impact. It is advisable to use the child car seat on a rear car seat only, even if your local traffic regulations allow fitting on such a front seat.
  • Page 4 W A R N I N G ! Never use a child car seat without a backrest, since it cannot provide maximum protection during a collision. W A R N I N G ! Toxic cleaning solutions may lead to illness. Do not bleach, iron, machine-wash, or dry the child car seat covers with a roller-drier, as these methods will damage the child car seat covers and require a replacement..
  • Page 5 General Safety Information Keep this Instruction Manual together with the child car seat, so you can readily access it in the future. Noncompliance with these instructions may affect your child’s safety. After the child car seat has been placed and fitted, under normal driving conditions, there should be no compressed part under the movable seat or car door or between the two.
  • Page 6 Using your SPARCO child car seat Understand how to properly fit the child car seat before using Become familiar with the features and functions of the child car seat to ensure a proper fit.
  • Page 7 EU Standard ECE R44 04 Group Weight Orientation Fixing of child Group 0-10 Backward Child seat belt 0-10 kg facing months (5 points) Group Backward Child seat belt 0-18 0-13kg facing (5 points) months Group Forward Child seat belt 9 months – 9-18kg facing (5 points)
  • Page 8 Headrest Shoulder Belt Guide Harness Slots Harness Strap Shoulder Pads Harness Buckle Buckle Pads Adjustment Device Harness Adjustment Strap Headrest Adjustment Handle Guide slot Top tether release button Cover Top tether strap Red waist Top tether hook belt guide Snap button ISOFIX Attachment ISOFIX release button...
  • Page 9 Securing your baby 1.1 How to adjust the belts, headrest and seat positions IMPORTANT The correct belt height of the shoulder belts is attained when the belt disappears into the shell slightly above the shoulder of the child. Make sure that the shoulder belts fit properly over the shoulders of the child.
  • Page 10 Securing your baby 1.2 Securing your baby using the harness Loosen the harness straps by pressing the release button and pulling the harness straps as far as you can. Note! Do not pull the shoulder pads. Open harness buckle, then place the harness straps to the sides of the car seat.

  • Page 11: Tightening The Harness

    Securing your baby 1.3 Tightening the harness CAUTION Pull the straps end straight towards you, not upwards or downwards. Please pay attention to the strap end. Whilst traveling (especially outside the car) it should always be attached to the cover. 1.4 Checklist to ensure that your baby is buckle up correctly.

  • Page 12: Installation In The Vehicle

    Installation in the vehicle 2. Installation in the vehicle Please do not leave your child unattended in the child safety seat in the vehicle. For the protection of all vehicle occupants. In the case of an emergency stop or an accident unsecured persons or objects may cause injury to other vehicle occupants.
  • Page 13 ISOFIX and Top tether 2.1 Installation of Group I for the children whose weight between 9-18kg with ISOFIX and top tether. IMPORTANT First please check if there are 2 ISOFIX anchorages in the perpendicular intersection of the vehicle seat back and seat cushion, and the user ready tether anchorage behind the vehicle seat.
  • Page 14 ISOFIX and Top tether 2.2 Installation of Group I for the children whose weight between 9-18kg with ISOFIX and top tether. Pull out the top tether and press the tether strap release button to extend the strap until it is long enough to hook the user-ready tether anchorage behind.
  • Page 15 Group I Car Belt Installation 2.3 Group I Car Belt Installation （For Children weight between 9-18KG） click click Pull the car belt through guide slot and insert belt buckle into front side cover hole(picture 1), then across seat back and took out from the other side of cover hole (picture 2) , finally buckle up until heard“click”sound.
  • Page 16 Group II/III Car Belt Installation 2.4 Installation of Group II/III and it is for the children whose weight between 15-36kg. Before the installation, please take away the Harness system of baby car seat. Note: The Harness strap, Harness buckle, Buckle pads& Shoulder pads should be stored away safely for future use ( see 3.1 Removing the 5 point harness system and cover ).
  • Page 17 Care instructions 3.1 Removing the 5 point harness system and cover Press adjusting a device and pull harness strap towards as far as you can, details see (1.2) Open the cover snap button at the bottom of seat back as shown right picture.
  • Page 18 Care instructions 3.2 Refitting the 5 point harness system and cover After washing, place the cover on the shell. Pass both sides of harness strap through strap slots bottom of seat. Then, lead straps through buckle metal connector Pass buckle clip through buckle pads and put clip into bottom...
  • Page 19 Care instructions 3.3 Cleaning Please be sure to use only original seat covers, as the seat cover is important to the proper functioning of the system. Replacement seat covers are available from your retailer and or at branches. The child seat must not be used without the seat cover. The cover can be removed and washed with a mild detergent using the washing machine's cycle for delicate items (30°C).
  • Page 20 CAUTIONS 1. This is a "Universal" child restraint. It is approved to Regulation No. 44, 04 series of amendments, for general use in vehicles and it will fit most, but not all, car seats. 2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle handbook that the vehicle is capable of accepting a "Universal"...
