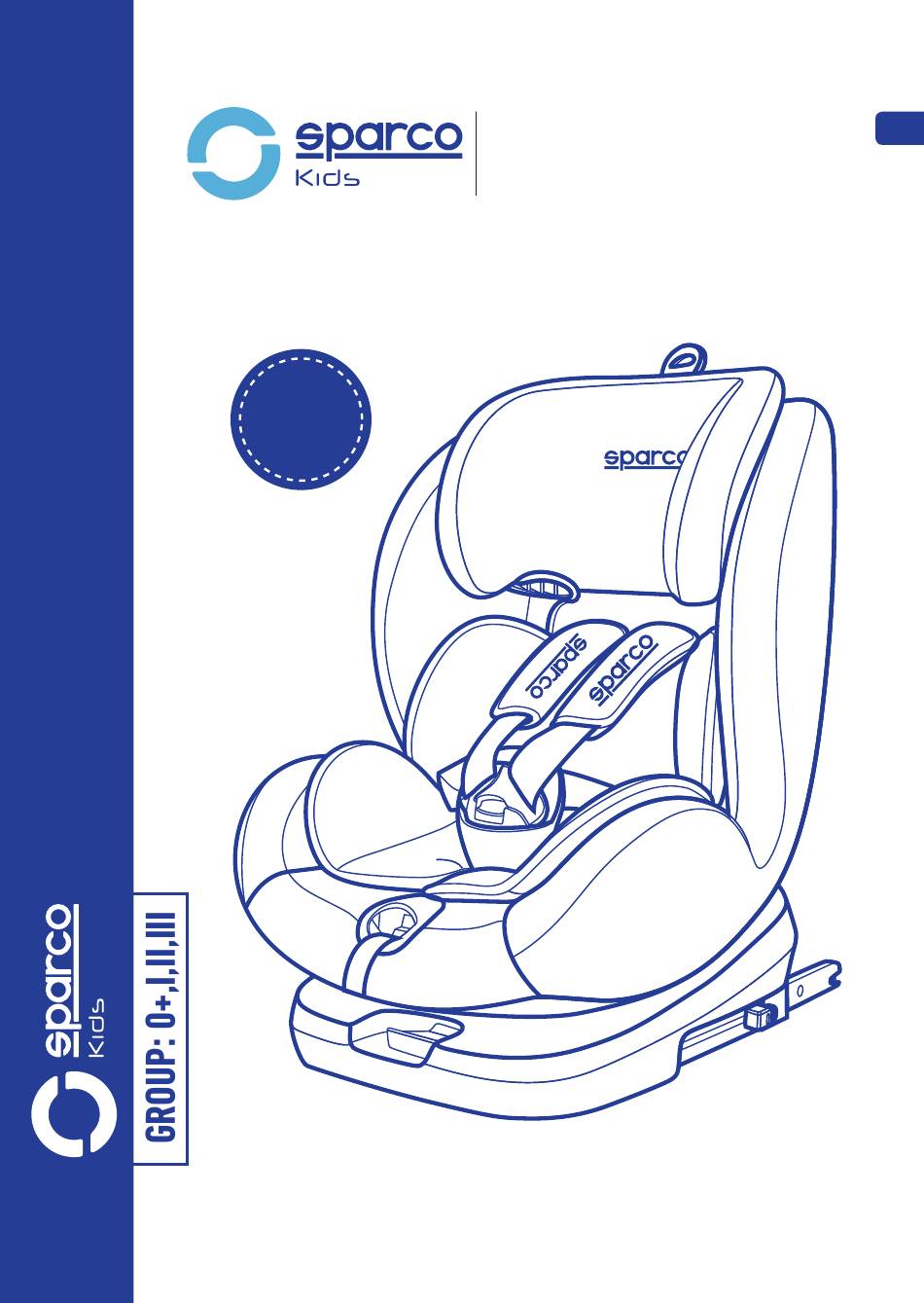

- Page 1 CHILD CAR SEAT SK600I INSTRUCTION MANUAL 0-36 202003...
-
Page 2: Table Of Contents
DIRECTORY WARNING Use 5 point safety buckle OVERVIEW Buckle usage VEHICLE APPLICATION Loosen the buckle INSTALLATION Adjust shoulder straps Rearward facing seat Adjust the headrest height Forward facing seat Adjust the angel of car seat Release 5 point seat belt Seat direction adjustment Use FIX+ car seat belts COVER FIT... -
Page 3: Warning
DIRECTORY • It will fit vehicles with positions approved as ISOFIX positions (as detailed in the vehicle handbook), depending on the category of the child seat and of the fixture. • The mass group and the ISOFIX size class for which this device is intended is: Group 0+ 0-15kg and ISOFIX size class D/Group I 9-18kg and ISOFIX size class B1. -
Page 4: Overview
OVERVIEW head adjustment Headrest Should pad Safety Backrest buckle Booster Adjust belt Angle adjustment Top Tether ISOFIX Connector ISOFIX handle... -
Page 5: Vehicle Application
WEHICLE APPLICATION Correct fitting/suitable Incorrect fitting/ not suitable Conventional use in cars equipped with ISOFIX connector. Warning: Under no circumstances should any child car seat be used on front passen- ger seat with an active airbag. Check the vehicle handbook to identify suitable ISOFIX seating positions. -
Page 6: Installation
INSTALLATION 3.1 Use ISOFIX+Top tether.Rearward facing seat 0-13KG GROUP: 0+ WEIGHT PULL Press the rotation button and turn the seat 90°into rearward mode Adjust the angle to the maximum state PUSH Grasp the chid seat with both hands and slide the two locking arms firmly into the insert guides until the lockilg arms engage with a clicking noise on both side. - Page 7 INSTALLATION Insert into the ISOFIX Correct installation Incorrect installation connector . Put the Top Tether into the connector, and tight up the Top Tether. (When it's shown GREEN color in Top Tether indictor, it is ok.) There are three fixed points for selection.
-
Page 8: Forward Facing Seat
INSTALLATION CLICK Open the harness buckle (press red button). Press the adjusting button and at the same time pull both shoulder straps forwards. Do not pull on the shoulder pads. Have your child sit down in the child seat. Guide the two buckle latches together and engage them before putting them into the haness buckle this should make a clicking noise. - Page 9 INSTALLATION PUSH Grasp the chid seat with both hands and slide the two locking arms firmly into the insert guides until the lockilg arms engage with a clicking noise on both side. The green ISOFIX Indicator must now be visible on both sides. Push the child seat with a substantial amount al force as far back as it will go.
- Page 10 INSTALLATION There are three fixed points for selection. CLICK Open the harness buckle (press red button). Press the adjusting button and at the same time pull both shoulder straps forwards. Do not pull on the shoulder pads. Have your child sit down in the child seat. Guide the two buckle latches together and engage them before putting them into the haness buckle this should make a clicking noise.
-
Page 11: Release 5 Point Seat Belt
INSTALLATION 3.3 Release 5 point seat belt Adjust the angle to the first position Press the adjusting button and at the same time pull both shoulder straps forwards. Do not pull on the shoulder pads Open the zipper on the back of the seat. Separate the seat belt and shoulder strap from the seat belt yoke According to the picture,remove 5 point safety belt... -
Page 12: Use Fix+ Car Seat Belts
INSTALLATION 3.4 Use FIX+ car seat belts.Install child safety seats 15-36KG GROUP: II,III WEIGHT Grasp the chid seat with both hands and slide the two locking arms firmly into the insert guides until the lockilg arms engage with a clicking naise on both side. The green ISOFIX Indicator must now be visible on both sides. -
Page 13: Use 5 Point Safety Buckle
USE 5 POINT SAFETY BUCKLE 4.1 Buckle usage Combinate the left Insert it into safety When heard buckle "click", it is and right of tongues. done. 4.2 Loosen the buckle Press the red button on the buckle to loose it. 4.3 Adjust shoulder straps Tighten shoulder straps Press the adjusting button... -
Page 14: Adjust The Headrest Height
ADJUST THE HEADREST HEIGHT Pull the adjusting ring of the headrest upwards. Move the headrest to the correct shoulder strap height and check that it is properly engaged by lightly sliding the head rest downwards ADJUST THE ANGLE OF CAR SEAT You can change the recline position while the child is installed in the cer seat... -
Page 15: Cover Fit
COVER FIT Open the zipper on the back,loose the harness strap and pull strap out o the strap yoke. Pull two harness straps out o cover slot, then separate strap with buckle metal connector. After above steps, draw whole strap out from the bottom of seat. - Page 16 COVER FIT After washing,place the cover on seat. Pass both sides of harness strap through strap slots at the bottom of seat. Then,lead straps through buckle metal connector(As picture shows). Pass buckle clip through buckle pads and put clip into bottom slot, then rotate it to shown position in right picture.
-
Page 17: Washing
WASHING Important: The cover is a safety feature, never use the child seat without it. Don’t put your child’s safety at risk by using other makes of replacement cover,could stop the child seat form protecting your child as well as it should. Washing instruction: The cover is removable and washable at 30C line dry only. - Page 18 Produced and distributed under Sparco’s licence by: marketing@carpadesign.net-www.carpadesign.net w w w . s p a r c o - k i d s . c o m...
