Summary of Contents for Sparco ECE R129/03

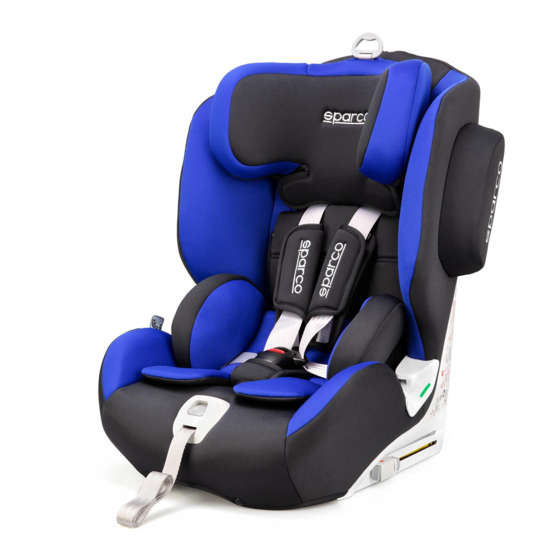

- Page 1 CHILD CAR SEAT INSTRUCTION MANUAL 76-150...
-
Page 2: Table Of Contents
User Manual We are pleased that our child car seat may accompany your child safely through a new stage of his or her life. In order to protect your child correctly, This baby car seat must always be used and installed as described in these instructions. If you have any other questions regarding its using, please contact us. -
Page 3: Important Notice
1.Important Notice 1.This child car seat is suitable for child’s stature 76cm-105cm/≤18kg i-Size-universa ISOFIX 、100cm-135cm i-Size booster seat 、135cm-150cm Specific Vehicle booster seat. 2.Please get the operation manual from the the net bag, which is inside the back cover of the child seat, and read carefully. 3.Please read carefully before installation , serious injury will occur if installed incorrectly.Manufacturer won't take responsi- bility for any risks in this case. - Page 4 12.The children are not left in their car seat unattended. 13.Keep the child seat away from the corrosive. 14.Always keep the child car seat secured in the vehicle even when it is unoccupied, children are not left in their child car seat unattended.
- Page 5 26.For an "Child Car seat", the user shall also be referred to the vehicle manufacturer's handbook. 27.The child restraint may not fit in all approved vehicles when used in one of these positions. "IMPORTANT - DO NOT USE BEFORE THE CHILD'S AGE EXCEEDS 15 months.
-
Page 6: Features
2. Features... - Page 7 ITEM NAME ITEM NAME ITEM NAME ITEM NAME Headrest Shoulder Shoulder pad Headrest adjustment handle belt guide Shoulder straps Harness buckle Buckle pad Inner cushion Harness Adjustment strap Belly belt guide SSP fixing groove adjusting button ISOFIX 2nd ISOFIX ISOFIX lock button release button attachment...
-
Page 8: The Attention For Car Using
3. The attention for car using Danger! Do not use the child car seat in the passenger seat with an active airbag. (The airbag may cause vital injure to the child) Please read the instruction carefully, so that the child car seat could be used correctly. -
Page 9: The Adjustment And Using Of The Child Car Seat
4.The adjustment and using of the child car seat 4-1 Recline position of adjustment Find the recline adjust- ment flap base and pull it up. when reclined position used way not fit all vehicles. 4-2 Harness adjustment Loosen: Press harness adjusting button and grasp and... -
Page 10: Headrest Adjustment
4-3 Headrest adjustment Up: Pull the headrest adjustment handle to adjust the height. Down: Pull the headrest adjustment handle with one hand, and press the headrest down with another hand. 4-4 Buckle adjustment 1. Put the right and left tongues of the buckle together, and insert to the harness buckle 07, it is locked when CLICK is heard. -
Page 11: Point Harness System Removing
4-5 5 point harness system removing 1. Tear the shoulder pads 04, and separate the shoulder pad connector and remove the shoulder pads. 2. Pull out the inner cushion 05, release the harness buckle 07, pull out buckle pad 08, store the buckle under the upholstery, store the shoulder straps and buckle latches together under the upholstery. -
Page 12: Isofix Installation And Removing
4-6 ISOFIX installation and removing ISOFIX Installation 1. If your vehicle is not equipped with the ISOFIX insert guides as standard. Clip the two ISOFIX insert guides which are includ- ed with the seat with the cut-out facing upwards onto the two ISOFIX attachment point of your vehicle. -
Page 13: Top Tether Using
4-7 Top Tether using 1. Take the top tether from the bottom of the car seat, adjust the Top Tether by pressing the Top Tether adjusting button N, pass the vehicle seat headrest. 2. Fix the top tether hook on the fixing point according to the car manual,then tighten the top tether 18( tighten the Top Tether until... -
Page 14: Removing And Refitting The Upholstery
4-10 Removing and refitting the upholstery Upholstery removing 1. Adjust the headrest to the highest position (refer to 4-3), remove inner cushion 05. 2. Release harness buckle 07, remove shoulder pads and buckle pad 08( refer to 4-5). 3. Remove the headrest pad and upholstery pad carefully. Upholstery fitting 1. -
Page 15: 100Cm-150Cm
Notice： 1. Check the harness belt and vehicle belt, make sure the kid and car seat are correctly and firmly installed. 2. The Top Tether indicator will show ‘green’ when it is tightened. 3. Ensure no cross or twist of the harness system. 4. -
Page 16: Cleaning And Maintenance
6. Cleaning & Maintenance Important tips: The cover is a safety feature. Never use the child seat without it, don’t put your child’s safety at risk by using other replacement cover, they could stop the child seat from protecting your child because other replacement will not perform its function. -
Page 17: Notice
7.Notice Notice This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No. 129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle user's manual. in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer.
