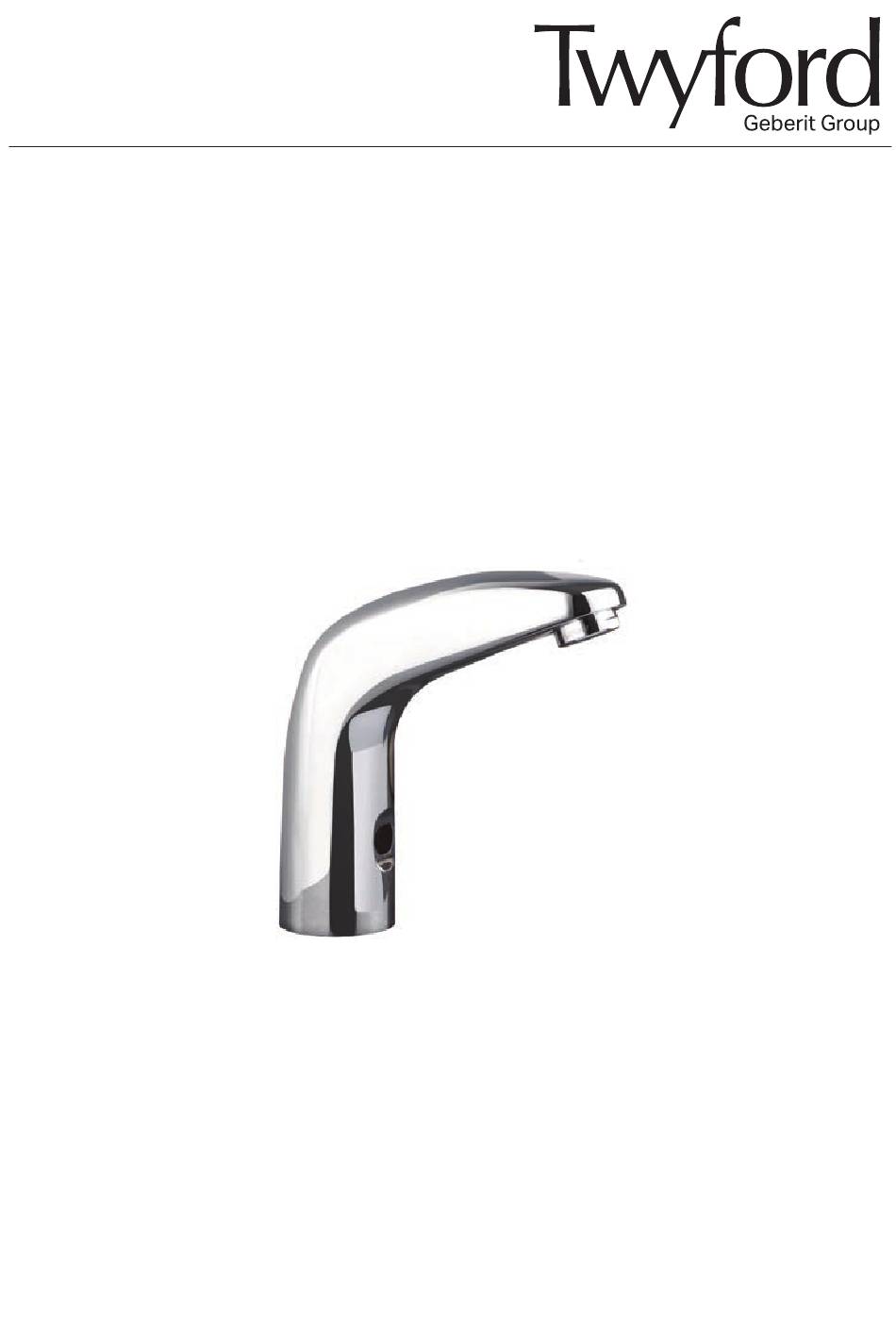

Sola Infra Red Monobloc
SF2610CP & SF2611CP
Installation and Maintenance Instructions
In this procedure document we have endeavoured to make the information
as accurate as possible.
We cannot accept any responsibility should it be found that in any respect
the information is inaccurate or incomplete or becomes so as a result of
further developments or otherwise.
Advertisement
Table of Contents
Related Manuals for Geberit Twyford Sola SF2610CP
Summary of Contents for Geberit Twyford Sola SF2610CP
- Page 1 Sola Infra Red Monobloc SF2610CP & SF2611CP Installation and Maintenance Instructions In this procedure document we have endeavoured to make the information as accurate as possible. We cannot accept any responsibility should it be found that in any respect the information is inaccurate or incomplete or becomes so as a result of further developments or otherwise.
-
Page 2: Check Contents
Introduction This installation guide has been produced for the SF2610CP & SF2611CP Sola infra red basin taps. These instructions cover the installation, operation and maintenance. Please read the enclosed instructions before commencing the installation of this product, please note; We recommend that the installation of any Twyford product is carried out by an approved installer. -
Page 3: Technical Data
Check Contents Transformer Alkaline 4 x 1,5V (AA) 230 V To electricity supply Technical Data Power specification: 6V low voltage system Power source: SF2610CP: 4 x 1.5V AA batteries SF2611CP: 230V transformer Operating water pressure: 1.0 to 8.0 bar (14.5 to 116 psi) With water pressure in excess of 8 bar use with a pressure reducing valve. -
Page 4: Installation
Installation 1. A service valve should be installed in the water supply pipe to the valve should maintenance be required in the future. 2. Turn off the water supply using the service valve (not supplied). 3. Install the tap (1) to the basin using fixing kit (2). 4. -
Page 5: Sensor Range
Sensor Range The sensing range of the tap is preset and should not require adjustment. If however the range needs to be adjusted it can be, using the following procedure; • Unplug the power connector (10) or in the case of the transformer turn off the power supply. -
Page 6: Problem Solving
Problem Solving Problem Cause Solution Check service valve is closed Open service valve Exhausted battery - the LED Replace battery blinks Check the voltage - where needed Disconnect and reconnected the battery Check the connector of the Electrical problems power cable No water flow from tap Check the cable for damage Damaged sensor - assistance... - Page 7 If this product does not function correctly when following conditions: first used, contact Geberit Technical • The product was purchased within the Department on 01926 516800 where our United Kingdom or Republic of Ireland.
- Page 8 Geberit International AG Schachenstrasse Geberit Sales Ltd, Geberit House 77, CH-8645 Jona Edghehill Drive, Warwick, CV34 6NH documentation@geberit.com www.geberit.com 972.225.00.0(00)
