Summary of Contents for Geberit Sigma30

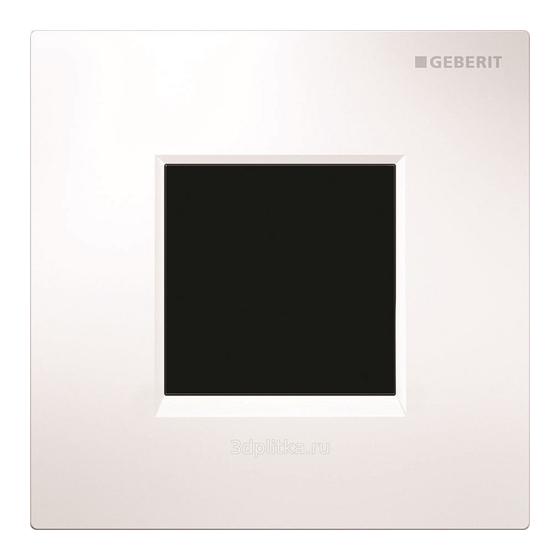

- Page 1 Product description Structure 1 Cover plates with sensor window 2 Sensor electronics 3 Mounting frame 4 Locking bolt 5 Battery box 6 Power supply unit B1255-001 © 08-2015 966.920.00.0 (00)
-
Page 2: Technical Data
Technical data Mains operation Battery operation Interval flush factory setting 24 h 24 h Interval flush adjustment range 1–168 h 1–168 h Flow rate at 1 bar with/without flow limiter 0.3/0.24 l/s 0.3/0.24 l/s Maximum test pressure water 16 bar 16 bar 1600 kPa 1600 kPa... -
Page 3: Operation
Operation Actuating the flush The electronic flush actuation takes place by means of infrared user detection. The user detection range starts approx. 50 cm in front of the sensor window. After a minimum detection time of 7 seconds, a flush is actuated when the user leaves the detection range. -
Page 4: Maintenance Interval
Do not dispose of batteries in Activate cleaning mode with the Geberit domestic waste. Service Handy or the Geberit Clean Handy. To clean the urinal ceramic and the cover Connect the cables and install the plate, suppress the flush actuation for a few battery box. -
Page 5: Disposal Of Waste Electrical And Electronic Equipment
Within 5 seconds, hold your hand waste. Old equipment should be returned immediately in front of the flush directly to Geberit, where it will be disposed control. The new flush time of appropriately. corresponds to the amount of time...
