STR-K7100
Note : This set can be disassemble according to the following sequence.
SET
2-1.
CASE
(Page 8)
2-2.
BACK PANEL SECTION
(Page 9)
2-3.
FRONT PANEL SECTION
(Page 9)
Note : Follow the disassembly procedure in the numerical order given.

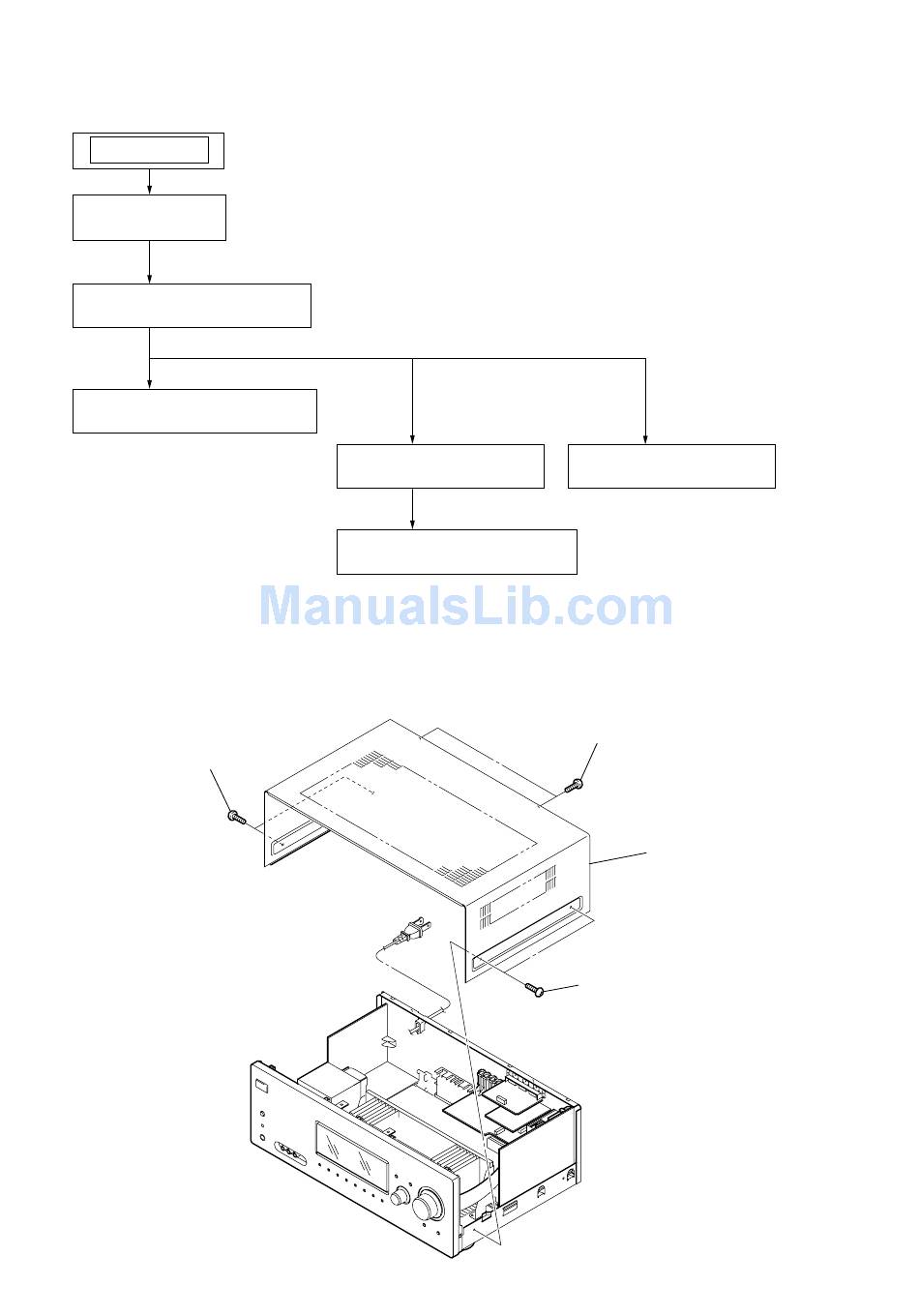

2-1. CASE
2 two screws
(case 3 TP2)
8
SECTION 2
DISASSEMBLY
2-4.
DIGITAL BOARD
(Page 10)
2-5.
MAIN BOARD SECTION
(Page 10)
2-6.
STANDBY BOARD
(Page 11)
3 two screws
(+BVTP 3 × 8)
4 case
1 two screws
(case 3 TP2)
