NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

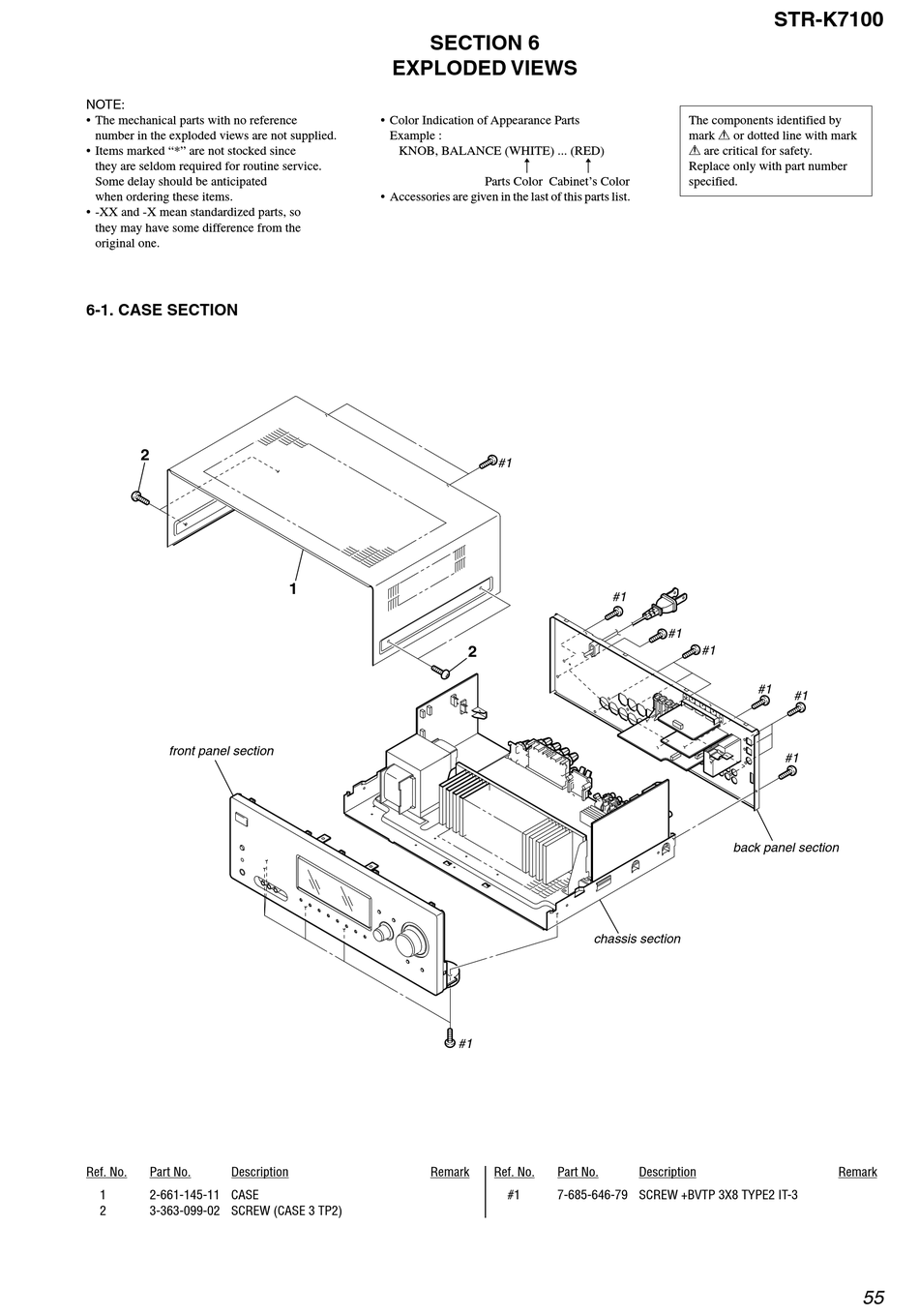

6-1. CASE SECTION

2
front panel section
Ref. No. Part No. Description
1 2-661-145-11 CASE
2 3-363-099-02 SCREW (CASE 3 TP2)
SECTION 6

EXPLODED VIEWS

• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
• Accessories are given in the last of this parts list.
1
#1
Remark
R R
Parts Color Cabinet's Color
#1
#1
2
chassis section
Ref. No. Part No. Description
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
STR-K7100
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#1
#1
#1
#1
#1
back panel section
Remark
55
