DVN-1000/2000/2010 Series Panel Installation & Service Quick Guide
Warnings and Disclaimers
Ensure that all electrical work meets or exceeds all local or national
electrical codes.
Provide the required power to the display as listed on the product
labels, specifications, or site-specific Riser Diagram. The conductor size
may vary based on the length of the power run.
Consider implementing a separate circuit for the display using an
isolation transformer or dedicated transformer.
Daktronics assumes no liability for any issues caused by line voltage
fluctuations or other improper power conditions.
Basics
Display Accessories

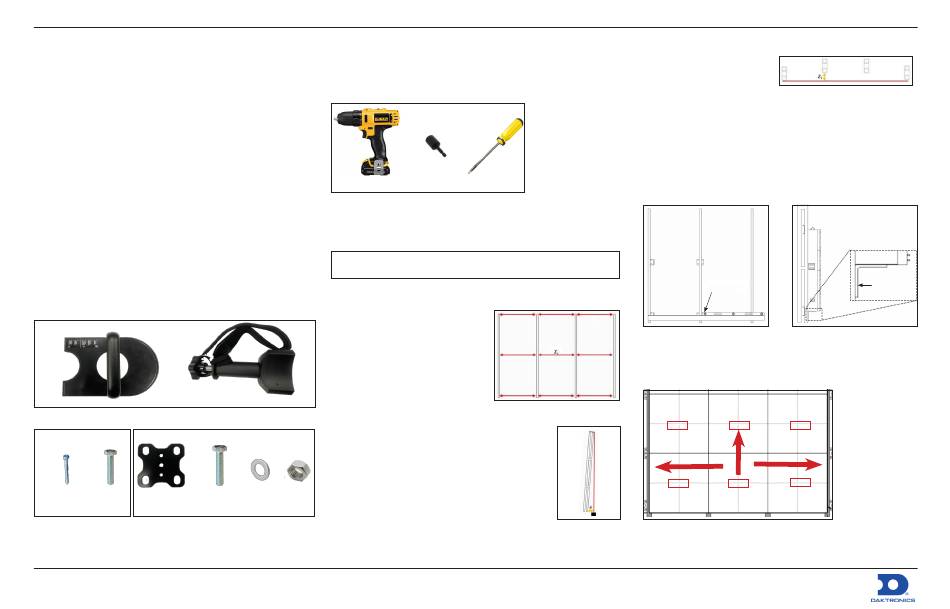

Daktronics provides the following standard display accessories. Refer to
Figure 1, Figure 2, and Figure 3.
Magnetic Removal Tool
ST6.3x65 Self-tapping Screw (Front-Install)
M10x35 socket head bolt (Front-Install)
6mm Clip angle (Rear-Install)
M10x70 socket head bolt (Rear-Install)
M10 washer (Rear-Install)
M10 nut (Rear-Install)
Figure 1: Magnetic Removal Tool.
Self-tapping
Bolt
Clip angle
Screw
Figure 2: Front-Install Tools
Figure 3: Rear-Install Tools
DD5217194
Rev 02
7 February 2024
Customer provides the following tools for installation and service. Refer to
Figure 4
Cordless drill
Drill socket
Phillips Head Screwdriver
Cordless
Drill
Figure 4: Customer-Provided Tools
Mechanical Installation
Mounting Structure
Note: Images in this section are for illustrative purposes only. Content may
be enlarged for better comprehension.
Ensure the supporting structure for the display is plumb, horizontally level,
and square before installing the display panels.
1. Inspect the level of the vertical
sections by taking measurements
of the horizontal intervals between
vertical columns (X
three equally-spaced horizontal
measurements. Refer to Figure 5.
If the difference between any two X
measurements exceeds 5 mm, adjust
the structure or plan ahead for panel
adjustments while installing the
display panels.
2. Ensure the structure is plumb by
placing a sufficiently-long level attached to the top
panel of the frame. Refer to Figure 6.
If the δ value at the bottom of the structure exceeds
1 mm for each 1 m of the frame's height, adjust
the structure or plan ahead for panel adjustments
while installing display panels. For example, a 10 m
Bolt
Washer
Nut
high structure would have a normally allowable δ
measurement of 10 mm.
Drill
Phillips Head
Socket
Screwdriver
). Use at least
i
i
Figure 5: Verify Vertically Level
(Front View)
Figure 6: Verify
Plumb (Side View)
201 Daktronics Drive
Brookings, SD 57006-5128
www.daktronics.com/support
800.325.8766
3. Inspect if the structure is curved by placing a horizontal reference in the
vertical bar that has the furthest Z displacement when compared to
the other bars. Refer to Figure 7.
If the difference between any
two Z
measurements exceeds 5
i
mm, adjust the structure or plan
Figure 7: Flatness Verification (Top
ahead for panel adjustments
View)
while installing the display panels.
Panel Installation
1. Take the display panels out of the crate and check the integrity of the
panels. Check for any obvious damage from transport.
2. Use a C-clamp to attach an angled metal section with a total length
of two panels or more to the bottom of the metal structure to support
the first row. Ensure the metal support piece is horizontally level and
vertically plumb. Refer to Figure 8 and Figure 9.
Verify
horizontally
level
Figure 8: Angle Attached for First-
Figure 9: Angle Attached to
Row Alignment
Structure
3. Bring the panel into position. Install the bottom-center panel (Section
202 in "Figure 10: Recommended Section Installation Order" on page
1) first unless otherwise specified. Next, work outwards then upwards.
101
102
103
202
203
201
Figure 10: Recommended Section Installation Order
Page 1 of 7
Attach with
C-clamp to
structure
