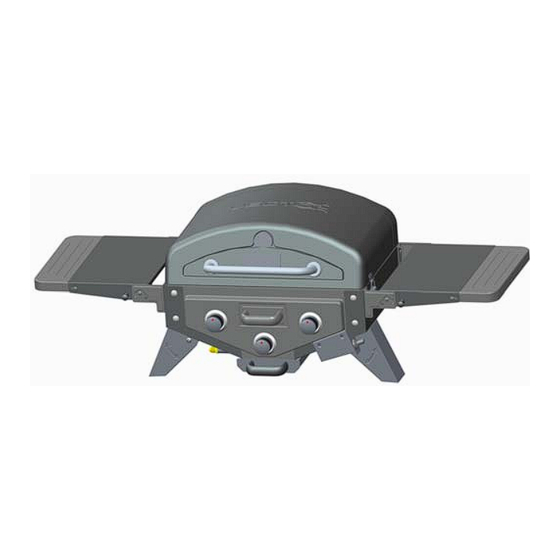

Smoke Hollow VT280RDS
Owner's Manual
Shop genuine replacement parts for Smoke Hollow
VT280RDS
Find Your Smoke Hollow Grill Parts - Select From 115 Models
-------- Manual continues below --------

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT280RDS and is the answer not in the manual?

Questions and answers

Related Manuals for Smoke hollow VT280RDS

Summary of Contents for Smoke hollow VT280RDS

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Smoke Hollow VT280RDS Owner's Manual Shop genuine replacement parts for Smoke Hollow VT280RDS Find Your Smoke Hollow Grill Parts - Select From 115 Models -------- Manual continues below --------...
  • Page 2 Tabletop Gas Grill VT280RDS Conforms to ANSI Std Z21.89-2013 Outdoor cooking specialty gas appliance DANGER 1. Never operate this appliance unat- tended. 2. Never operate this appliance within 10 ft (3.0 m) of any structure, com- bustible material or other gas cylin- der.

  • Page 3: California Proposition

    WARNING WARNING The combustion of Propane gas can For Outdoor Use Only yield the formation of chemical com- (outside of any type of enclosure) pounds known in the state of Califor- nia，U.S.A., to cause birth defects， cancer，and other serious health mat- WARNING ters.
  • Page 4 Read all safeguards and assembly instruc- In order to properly assemble your grill, tions before assembling and operating you will only need two tools: your grill. Phillips head screwdriver ● Pliers or adjustable wrench ● Before assembling your new grill, unpack (tools not included) all the parts from the box.
  • Page 5 SAFETY WARNINGS 1. The installation of this grill must conform to local codes, or in the absence of local codes, with either the National Fuel Gas Code, ANSI Z223.1 / NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B 149.2, or The Standard for recreational Vehicles, ANSI 119.2 / NFPA, and CSA Z240 RV Series, Recreational Vehicle Code, as Acceptable.
  • Page 6 READ ALL SAFEGUARDS AND INSTRUCTIONS THOROUGHLY! YOUR SAFETY IS VERY IMPORTANT – FAILURE TO FOLLOW PROPER PROCEDURES AND SAFEGUARDS MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. DANGER DANGER Do not move the unit while it is being used. The GRILL is for outdoor use only! ●...
  • Page 7 VT280RDS Parts List Note: For assistance, including missing or damaged parts, call toll free - 866-475-5180 from 8:30 am - 4:30 pm Central Time, Monday - Friday Hardware Pack Quantity Description M6x12 Combo Truss Head Bolts, Black Nickel Plated M5x17 Shoulder Bolts, Black Nickel Plated...
  • Page 8 VT280RDS Parts List Item No. Quantity Description Part No. Side Shelf Left Bracket VT280RDS-01 Side Shelf VT280RDS-02 Side Shelf Right Bracket VT280RDS-03 Warming Rack VT280RDS-04 Heat Indicator VT280RDS-05 Lid Handle VT280RDS-06 Lid Decorative Plate VT280RDS-07 Cooking Grid VT280RDS-08 Wood Chip Box Tent...
  • Page 9 Assembly Note: Carefully cut the tape holding the carton together. Cut the carton so that it can lay flat on the ground to provide a clean surface for assembling your Grill. Remove the packing materials and all the parts from inside the Cabinet. After unpacking all the parts, check to make sure you HAVE all the parts.
  • Page 10 Assembly Step 3: Attach the Heat Indicator Step 3 Locate: Heat Indicator Procedure: Remove the nut from the Heat Indica- tor first, then attach the Heat Indicator to the Grill Lid using the nut as shown in Fig. 3. Fig. 3 Step 4: Attach the Lid Decorative Plate and Step 4 Lid Handle...
  • Page 11 Assembly Step 6: Attach the Wood Chip Box Rails Step 6 Locate: Wood Chip Box Left & Right Rails, (4) M5x10 bolts Fig. 6A Procedure: Push the Wood Chip Box Left Rail into the rectan- gular hole in the Front Panel of the Firebox as shown in Fig.
  • Page 12 Assembly Step 7: Attach the Wood Chip Box Assembly Step 7 Locate: Wood Chip Box, Wood Chip Box Front Fig. 7A Panel Assembly, Wood Chip Box Lid, Wood Chip Box Handle, Wood Chip Box Lock, Wood Chip Box Tent, (2) M6x12 bolts, (2) M5x10 bolts and (2) M5 nuts Procedure: Attach the Wood Chip Box Handle and Wood...
  • Page 13 Assembly Step 8: Attach the Heat Tents Step 8 Locate: (2) Heat Tents Fig. 8A Procedure: Install (1) Heat Tent by inserting the tabs through the slots on the Rear Bracket on the Firebox as shown in Fig. 8A. Insert the other end of the Heat Tent with the slots into Front Bracket on the Firebox as shown in Fig.
  • Page 14 Assembly Step 10: Place the Cooking Grid Step 10 Locate: (2) Cooking Grids Procedure: Place (2) Cooking Grids into the Fire- box as shown in Fig. 10. Fig. 10 Step 11: Attach the Side Shelf Brackets Step 11 Locate: (1) Side Shelf Left Bracket, (1) Side Shelf Right Bracket and (4) M6x12 bolts Procedure: Attach (1) Side Shelf Left Bracket and (1) Side Shelf Right Bracket to the right side of the...
  • Page 15 Step 14 Completed Grill Assembly of your grill is now complete. To order a cover for your grill, please visit: www.thesmokercompany.com FOR YOUR SAFETY, FOLLOW ALL SAFEGUARDS AND INSTRUCTIONS...
  • Page 16 OPERATING INSTRUCTIONS Connecting the LP gas cylinder to the grill The LP Gas Cylinder must be a 20 pound cylinder and have a Type 1 Cylinder Valve Outlet ● Connector. Handle the Cylinder with care - do not drop it. ●...
  • Page 17 OPERATING INSTRUCTIONS Adding Wood (Optional) To add wood before cooking, simply fill the wood chip box with your choice of flavoring hard- wood chips. The amount and type of wood you use is entirely up to you. One full box is typically enough for 30 minutes of smoking.

  • Page 18: Care And Cleaning

    OPERATING INSTRUCTIONS CARE AND CLEANING ! WARNING ! Do not do any cleaning or maintenance on any grill parts until all parts are cool! Be sure ● that the valve on the LP Gas Cylinder is closed and in the OFF position After every cooking session, you may run the gas grill on HIGH to burn off any food resi- ●...
  • Page 19 5400 Doniphan Drive Neosho, MO 64850 www.olp-inc.com ©2015 Outdoor Leisure Products, Inc. Smoke Hollow ® and the Smoke Hollow ® logo are trademarks of Outdoor Leisure Products, Inc. and are not to be used without express permission by Outdoor Leisure Products, Inc.
