- Page 1 ATESS ATS-S User Manual SHENZHEN ATESS POWER TECHNOLOGY CO.,LTD GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen +86 755 2998 8492 info@atesspower.com www.atesspower.com Revised date: 2023-11-08...
-
Page 2: Table Of Contents
ATS-S 2.4 Operation personnel 2.5 Important note Commissioning 6.1 Inspection Product Description 3.1 ATS-S 3.2 Circuit diagram of ATS-S 3.3 Layout of the main components 3.4 Product information Routine maintenance 7.1 Regular maintenance 7.2 Waste disposal Transportation and storage 4.1 Transportation... -
Page 3: About This Manual
The operator should be fully familiar with the local standards of the project. This manual applies to ATESS ATS-S , it contains: Safety instruction Attention that needs to be paid when operating and maintaining ATESS ATS-S 1.3. How to use this Manual model. -
Page 4: Safety Instructions
DANGER indicates a hazard with a high level of risk which, if not avoided, will result in death or serious injury. The protection level of ATS-S is IP65, which is designed for indoor installation. Please refer to chapter 5 for installation instruction. -
Page 5: Product Description

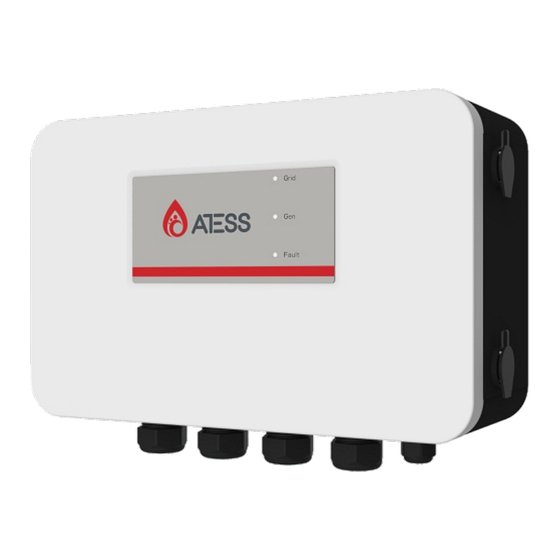

Product description Indicator ATS-S adopts intelligent design. The current power status of it can be known through three indicator lights on the door pan 3.1 ATS-S ATS-S produced by ATESS is designed to work with ATESS HPS hybrid inverter. It mainly enables HPS system to connect with diesel generator and power grid at the same time. -
Page 6: Product Information
Caution ATESS ATS-S50 can only be stored when it is stopped and all the doors are closed in a dry room to protect the internal circuits against dust and moisture. 3.4.2. Packing information... -
Page 7: Installation Condition And Requirements
In front of the installation place of ATS-S, a space of 1.5m or more shall be bearing the load of ATS-S. Its load bearing ability shall be concerned throughout ensured, the back 0.6m or more, the top 0.6m or more to ensure easy installation,... -
Page 8: Tools And Spare Parts Required For Whole Machine Installation
It is necessary to always pay attention to the position of the center of gravity of ATS-S. Note 3: Please read carefully the labeled parameters to select an appropriate Take necessary auxiliary measures to ensure the safety of transportation personnel;... -
Page 9: Electrical Installation
All connections with this equipment shall be done under non- The output voltage of the AC side of ATS-S is 400V, the wiring method of AC side voltage state. and grid side is as follows:... -
Page 10: Communication
4Ω. All wiring into the channel at the bottom of ATS-S to be all the wiring is completed, the connection port must be sealed with dust cotton, to prevent dust from entering the inside of ATS-S. -
Page 11: Inspection
Routine maintenance Commissioning 6.1 Inspection before operation Before ATS-S is put into operation, its installation shall be inspected. At least two 7.1 Regular maintenance staff do the inspection according to the items listed below to ensure the 7.1.1 Maintenan ce and repair correctness of the installation. -
Page 12: Waste Disposal
Weight(kg) 7.2 Waste disposal Communication interface CANA/485 ATS-S will not cause environmental pollution, since the all the components meet the requirements of environmental protection. According to environmental HPS relay 160A protection requirements, user shall dispose ATS-S in accordance with the relevant laws and regulations. -
Page 13: Atess Factory Warranty
During the warranty period, the customer shall show the invoice and date of purchase to the service personnel of ATESS. At the same time, the nameplate mark on the product shall be clear and visible, otherwise, ATESS has the right not to provide warranty service.
