Page 6: Product Description

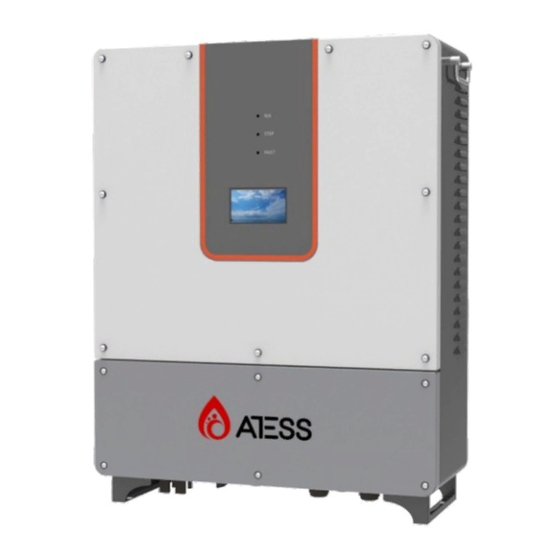

Product description 3.1 Energy Storage system ATESS HPS5000TLS/HPS7500TLS/HPS10000TLS hybrid inverter is designed for energy storage system, it converts DC current generated by battery bank into AC current and feed into the load/grid, also it can take power from solar inverter or grid to charge battery . - Page 7 3.4 The layout of the main parts Indicator 3.4.1 External layout There are 3 LED indicators on the inverter which is used to display the current status of the inverter. Figure 3-4-1-2 LED indicators Description Lit when inverter is in normal operation Lit when inverter is stopped STOP FAULT...
- Page 8 Communication port 3.5 working mode HPS5000TLS/HPS7500TLS/HPS10000TLS is designed with flexible working modes: CANB CANA RS485 LCD-USB RS232 PE L H PE L H PE L H PE L H PE B A CANB CANA RS485 3.5.1. Off-grid mode PE L H...
- Page 9 For example: inverter module failure etc. please (2)Valley price: working logic is the same to the backup priority mode’s. PV and grid contact your local dealer or ATESS directly when inverter enters permanent fault supply priority to battery, the remaining to load.
-
Page 10: Packaging Information
Products installation 3.8 Packaging information 4.1 Installation condition requirements To ensure normal operation of the machine, the installation environment is required as follows: A. The wall for mounting HPS should be solid and able to bear the weight of HPS in Quantity Name Unit... -
Page 11: Installation Environment
4.2 Installation environment 4.3 Space requirement Although HPS is with IP54 protection level, it is not recommended to install it under When installing HPS, reasonable distance should be kept for maintenance and direct sun or direct rain/snow to ensure long term performance, below installation ventilation, please refer to below figure: environment for reference: To avoid inverter life span decrease, it is recommended to install shading shield on... -
Page 12: Mechanical Installation
4.4 Tools and spare parts required for whole machine installation Steps: A: Drill hole according to location of the wall-mounting bracket screw hole, total 6 Tools and spare parts required for installation is as follows: B. Refer to figure 4 for installation of wall-mounting bracket •... - Page 13 4.6lectrical installation Cable (Cu) Cable Diameter Requirements (mm²) Aperture 4.6.1 Input and output requirements HPS5000TLS/HPS7500TLS/HPS10000TLS Model NOTICE Φ5,5N*m input cable with each at least 4 mm2 PV +- Caution, risk of danger Φ5,5N*m cable with each at least 6 mm2 BAT +- •...
-
Page 14: Ac Side Wiring
4.6.4 AC side wiring Step 1: Cut off the distribution circuit breaker at the DC side, and ensure that no voltage on the wire at DC side. Step 2: Confirm the battery positive and negative voltage within range with a CAUTION! multimeter. -
Page 15: Can Communication
4.6.5 Earthing Rs485 communication line uses terminal blocks at both ends, and RS485 communication lines are made by parallel connection of terminals at both ends. The length should not exceed 1000 meters. As shown in Figure 4-7-1-1 Inverter must be earthing well for safety; Please make sure of the connection between PE in power distribution cabinet and PE copper in the inverter good;... -
Page 16: Pilot Operation
Pilot operation Electrical Installation Inspection The chapter will introduce the procedure of pilot operation, including checking battery voltage, input and output connecting, other preparation working. Complete and firm grounding of inverter. 5.1 Relevant requirements Grid voltage matching the rated input voltage of inverter. Correct phase sequence of grid connection, and tightening torque meeting requirements. - Page 17 Warning: CAUTION! • After manually shutting down, you must press the power button on When connecting the load,make sure that the three-phase of the load the LCD, otherwise cannot start automatically. is corresponding to the three-phase of the HPS, otherwise it will cause the motor to reverse.
-
Page 18: Gui Instruction
Maintenance Table 6-1 ATESS HPS-TLS LCD Menu After the LCD is powered on, go directly to the home page of the interface. At this time, wait for the internal initialization of the machine for about 1 minute(If there is no data refresh after more than 2 minutes, the serial communication between the LCD and the control board is faulty). -
Page 19: System Settings
6.2.3 Switch on/off page Language Settings: Select language, currently it only supports Chinese, English (default language is Chinese). You can enter this page by clicking the [Switch on/off] button in any other interface. There are the on button, the off button. Used to select power on or off operation. After selecting, select [Yes] / [No] in the pop-up sub-window to confirm. -
Page 20: Operation Data
6.2.6 Operation data You can enter this page by clicking the [Run Data] button below any other interface. This page mainly displays the current energy storage power generation parameters and real-time data including grid voltage, grid frequency, grid current, DC input voltage, DC input current, chassis temperature and total power generation time, etc. - Page 21 Description Description INT_L1_OverCurr_Fault GFCI_Failure INT_L2_OverCurr_Fault DC1_VoltHigh_Fault AC_NoUtility_Fault DC2_VoltHigh_Fault AC_GridPhaseSeque_Fault DC1_CurrHigh_Fault AC_PLL_Fault DC2_CurrHigh_Fault AC_Volt_Unbalance_Fault DC1_Insulation_Fault AC_Curr_Unbalance_Fault DC2_Insulation_Fault AC_WU_OverVolt_Fault DC1_OCP_Fault AC_WU_UnderVolt_Fault DC2_OCP_Fault AC_VW_OverVolt_Fault INT_DC1_OverVolt_Fault AC_VW_UnderVolt_Fault INT_DC2_OverVolt_Fault AC_UV_OverVolt_Fault INT_DC1_OverCurr_Fault AC_UV_UnderVolt_Fault INT_DC2_OverCurr_Fault AC_OverFreq_Fault IGBT_Module1_Fault AC_UnderFreq_Fault IGBT_Module2_Fault AC_GridCurr_DcHigh_Fault L1_OCP_Fault AC_L1Curr_DcHigh_Fault L2_OCP_Fault...
- Page 22 Description Description AC_L2Curr_DcHigh_Fault Door_Open_Fault AC_GridCurr_High_Fault AC_MainContactor1_Fault AC_L1Curr_High_Fault AC_MainContactor2_Fault AC_L2Curr_High_Fault AC_MainContactor3_Fault AC_Overload_Fault AC_SlaveContactor_Fault AC_Lightload_Fault GFDI_Ground_Fault AC_BackFeed_Fault GFDI_HallSense_Fault LVRT_Fault GFDI_AirSwitch_Fault Module1_OverTemp_Fault GFDI1_Fault Module2_OverTemp_Fault GFDI2_Fault Inductor1_OverTemp_Fault RISO1_Fault Inductor2_OverTemp_Fault RISO2_Fault Transformer_OverTemp_Fault GFCI1_Fault LowTemp_Fault GFCI2_Fault EPO_Stop AC_Fuse1_Fault KeyEmergencyStop AC_Fuse2_Fault LcdEmergencyStop Batt_OverCurr_Fault...
- Page 23 Description 6.3.2 Severe history failure table Description Grid AC overvoltage Batt_OverVolt_Fault Grid AC undervoltage Batt_UnderVolt_Fault Grid frequency overfrequency Batt_UnderVolt_Warning Grid frequency underfrequency DC overvoltage protection Fault_Feedback_Warning AC overvoltage protection Fan_1_Fault_Warning AC current imbalance Fan_2_Fault_Warning Grid voltage imbalance DC ground fault protection Fan_3_Fault_Warning AC side overcurrent protection Low voltage ride through protection...
-
Page 24: Inverter Status
6.3.3 Inverter status Warning: Description Do not use a gas pump to clean the fan, as this may cause damage to the fan. wait Fan cleaning or replacement: check 1. Before cleaning or replacing the fan, please make sure that the DC side and AC Grid mode side of the inverter have been disconnected. -
Page 25: Regular Maintenance
During the warranty period, ATESS products shall promptly present the invoice and date of purchase of the products to ATESS Service personnel during maintenance. At the same time on the product the nameplate logo... - Page 26 Warranty condition ATESS will repair or replace the product free of charge during the warranty period; the faulty machine after replacement shall be owned by ATESS; the customer shall reserve a certain amount of time for ATESS to repair the faulty machine.
