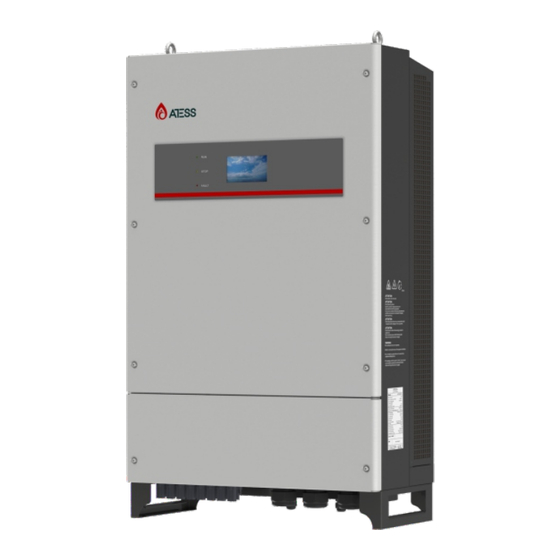

ATESS HPS30000TL User Manual

Hybrid energy system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

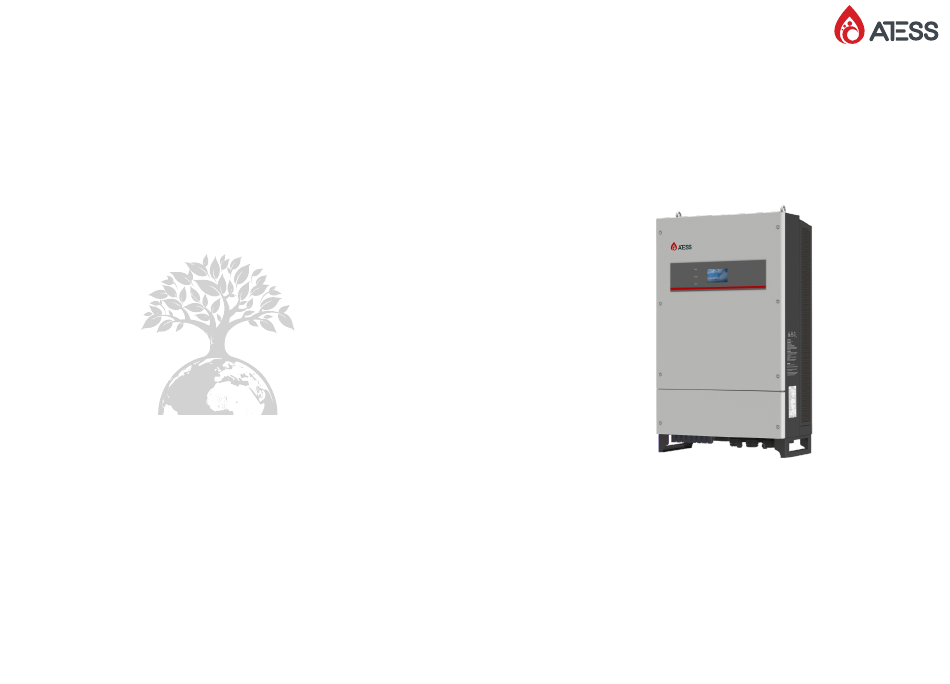

SHENZHEN ATESS POWER TECHNOLOGY CO.,LTD
GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community,
Shiyan Street, Baoan District, Shenzhen
+86 755 2998 8492
T
E
info@atesspower.com
W
www.atesspower.com
Revised date: 2024-01-03
044.ZT0024301
ATESS HPS30000TL/HPS40000TL/HPS50000TL
Hybrid Energy System User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HPS30000TL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATESS HPS30000TL

Summary of Contents for ATESS HPS30000TL

  • Page 1 ATESS HPS30000TL/HPS40000TL/HPS50000TL Hybrid Energy System User Manual SHENZHEN ATESS POWER TECHNOLOGY CO.,LTD GROWATT-ATESS Industrial Park, No.23 Zhulongtian Road, Shuitian Community, Shiyan Street, Baoan District, Shenzhen +86 755 2998 8492 info@atesspower.com www.atesspower.com Revised date: 2024-01-03 044.ZT0024301...

  • Page 2: Table Of Contents

    Contents 4.1 Installation condition 1.1 Contents About this Manual Products Installation requirements 1.2 Symbols explanation 4.2 Installation environment 4.3 Space requirement 4.4 Tools for installation Safety instructions 2.1 Correct installation 4.5 Mechanical installation 2.2 Operator 4.6 Electrical installation 2.3 Inspection and storage 4.7 Communication 2.4 Transportation 4.8 Installation inspection...

  • Page 3: About This Manual

    Safety instruction Caution,risk of electric shock All relative operations must Attention that needs to be paid when operating and maintaining ATESS b e p r o c e e d e d b y t h e HPS30000TL/HPS40000TL/HPS50000TL professional electricians.

  • Page 4: Safety Instructions

    > Warranty service for the inverter does not contain module maintenance. is any defect or damage, immediately notify the transportation company. If necessary, you can seek help from ATESS Customer Service department. > Permission from the local utility company is required before installing the Energy Storage system and only professional personnel are qualified for the operation.

  • Page 5: Installation

    Function and safety parameters discharged. Don't change the parameters of the inverter without authorization from the local utility and ATESS Energy Technology Co., Ltd. Otherwise, it might lead to injury or equipment damage and the warranty of the inverter will be voided.

  • Page 6: Product Description

    Product description 3.1 Energy Storage system 3.3.2 Output parameter ATESS HPS30000TL/HPS40000TL/HPS50000TL hybrid inverter is designed for energy storage system, it converts DC current generated by battery bank into AC Energy storage controller model HPS 30000TL HPS 4000TL HPS 50000TL current and feed into the load/grid, also it can take power from solar inverter or grid to charge battery .

  • Page 7: The Layout Of The Main Parts

    3.4 The layout of the main parts Indicator There are 3 LED indicators on the inverter which is used to display the current 3.4.1 External layout status of the inverter. Figure 3-4-1-2 LED indicators Description Lit when inverter is in normal operation STOP Lit when inverter is stopped FAULT...
  • Page 8 BATTERY GRID LOAD DC/AC breaker ATESS HPS30000TL/HPS40000TL/HPS50000TL doesn’t have AC and DC switches or load switches, customers need to add their own switches, or buy our company to design and produce switch boxes. The AC main switch can be used to disconnect the AC interface of the inverter from the grid.

  • Page 9: Working Mode

    3.5 Working mode ㈡　PV POWER < LOAD POWER ATESS HPS30000TL/HPS40000TL/HPS50000TL is designed with flexible working modes: ①Bat Compensation SOC (Volt) > Bat SOC(Volt) 3.5.1. Off-grid mode DC/DC DC/AC LOAD PV POWER > LOAD POWER DC/DC DC/AC LOAD Battery voltage>Under voltage protection...

  • Page 10: Battery Setting

    For example: inverter module failure etc. please contact your DC/DC DC/AC LOAD local dealer or ATESS directly when inverter enters permanent fault mode, repairmen on site is not allowed without authorization of ATESS. GRID 3.6 Battery setting ㈡　PV POWER <...

  • Page 11: Storage

    > Retain the desiccant in the packaging. the long term. > The ATESS HPS30000TL/HPS40000TL/HPS50000TL can only be stored when it is B. Installation space should be sufficient to cover HPS dimension, HPS dimension stopped and all the doors are closed in a dry room to protect the internal circuits and installation gap please see below photo: against dust and moisture.

  • Page 12: Installation Environment

    4.2 Installation environment 4.3 Space requirement Although HPS is with IP54 protection level, it is not recommended to install it under When installing HPS, reasonable distance should be kept for maintenance and direct sun or direct rain/snow to ensure long term performance, below installation ventilation, please refer to below figure: environment for reference: To avoid inverter life span decrease, it is recommended to install shading shield on...

  • Page 13: Tools For Installation

    4.4 Tools for installation Steps: A:Please drill the hole according to the hole mask. Tools and spare parts required for installation is as follows: B:Please install the expansion bolt as shown. • Hoisting crane, forklift or fork lift truck (with the capacity for bearing the weight of C:Please install the wall hanger as shown in the picture.

  • Page 14: Electrical Installation

    4.6 Electrical installation 4.6.1 Electrical Parallel Wiring Diagrams (Let's take HPS50000TL as an example) Grid: 125A AC breaker BAT: 125A DC breaker Load: 125A AC breaker 1.Wiring diagram of a single HPS50000TL 3.Parallel wiring diagram of a HPS50000TL with batteries connected in parallel 2.Parallel wiring diagram of...
  • Page 15 CAUTION! Caution, risk of danger Model ATESS HPS30000TL/HPS40000TL/HPS50000TL 1. ATESS HPS30000TL/HPS40000TL/HPS50000TL of AC and DC, do not have switches or circuit breakers, customers need to add their own Grid Voltage Limit 360V~440V switches, or buy our company design and production switch box.
  • Page 16 4.6.5 AC side wiring Step 1: Cut off the distribution circuit breaker at the DC side, and ensure that no voltage on the wire at DC side. Step 2: Confirm the battery positive and negative voltage within range with a CAUTION! multimeter.

  • Page 17: Communication

    4.6.6 Earthing Rs485 communication line uses terminal blocks at both ends, and RS485 communication lines are made by parallel connection of terminals at both ends. The length should not exceed 1000 meters. As shown in Figure 4-7-1-1. Inverter must be earthing well for safety; Please make sure of the connection between PE in power distribution cabinet and PE copper in the inverter good;...

  • Page 18: Relevant Requirements

    Pilot operation The chapter will introduce the procedure of pilot operation, including checking battery voltage, input and output connecting, other preparation working. Electrical Installation Inspection 5.1 Relevant requirements Complete and firm grounding of inverter. Grid voltage matching the rated input voltage of inverter. Before pilot operation, the installation conditions of the equipment shall be examined thoroughly, in particular whether voltages at DC and AC ends are Correct phase sequence of grid connection, and tightening torque meeting requirements.

  • Page 19: Power On Steps

    Warning: CAUTION! • After manually shutting down, you must press the power button on When connecting the load,make sure that the three-phase of the load the LCD, otherwise cannot start automatically. is corresponding to the three-phase of the HPS, otherwise it will cause the motor to reverse.

  • Page 20: Introduction To Touch Screen

    Communication station number 6.1 Introduction to touch screen Users can view the operation information of the energy storage controller on the LCD touch screen, as well as set the operating parameters of the energy storage controller. For ease of operation, the following is a distribution diagram of the LCD menu logic structure.
  • Page 21 6.2.2 Power On/Off 6.2.4 System settings Click the [Power on/off] button in any other interface to enter this page. In this page, the Language settings:Select the interface language under this page, currently only two main ones are: boot button, shutdown button. Used to select the power on or off languages, Chinese and English.
  • Page 22 This page is the battery parameter setting page, the battery is an important part of the Grid Power UP Limit: the upper limit value of grid power, the maximum value is 1.2 energy storage control system, and the battery parameters need to be carefully times the rated power.
  • Page 23 Information:The manufacturer, serial number, software and hardware version Max.Bypass Voltage: The upper limit of the grid voltage, beyond which it will be cut into information, and factory date information are displayed under this page, which only off-grid mode, which is set by 110% of the rated value. shows that it cannot be modified.
  • Page 24 Discharge Stop SOC, discharge stop voltage: Only in "load priority" and "peak Float Charge Volt Limit: the voltage value of the battery into the float state, when the period" of economic mode, when the cell voltage or SOC reaches the discharge cut-off battery cell voltage is greater than (float voltage - float charge current limiting point), the voltage or SOC, the battery stops discharging.
  • Page 25 GFDI Ground Select: Reserved. Grid PV Charge Enable: when set to 1, the grid and PV can charge the battery at the same time, preferably supplied by PV, supplemented by the grid when insufficient; When set to 0, the grid and PV cannot charge the battery at the same time. Preferentially supplied by PV, PV will only be charged by the grid when there is no power.
  • Page 26 Calibration settings Forced Charge Enable: Set to 1 when using batteries produced by ATESS, otherwise set to 0. The parameters on this page are important parameters and factory preset parameters, Shinemaster Failure Flag: Reserved. please do not modify them without the consent of relevant personnel. The Company is not responsible for any consequences.

  • Page 27: Lcd Display Information Schedule

    Factory Settings Alarm information: The fault reported by the energy storage inverter is displayed, the fault time is displayed on the left, and the corresponding fault name is displayed on the The parameters on this page are important parameters and factory preset parameters, right.
  • Page 28 Description Description PV1_OverVolt_Fault GFCI_Failure INT_BAT_OverVolt_Fault RISO_Failure INT_PV1_OverCurr_Fault BAT_MainContactor_Failure INT_BAT_OverCurr_Fault AC_BypassOverPower_Failure INT_INV_OverVolt_Fault AC_U_BypassOverPower_Failure INT_INV_OverCurr_Fault AC_V_BypassOverPower_Failure INT_BL_OverCurr_Fault AC_W_BypassOverPower_Failure INT_BUS_OverVolt_Fault BAT_ Reseverd _Failure AC_NoUtility_Fault Reseverd_Failure AC_GridPhaseSeque_Fault PV2_OverVolt_Fault AC_PLL_Fault BL_OCP_Fault AC_Volt_Unbalance_Fault PV_ OCP _Fault AC_Curr_Unbalance_Fault BMS_Communicate_Fault INV_A_OCP_Fault INT_PV2_OverCurr_Fault INV_B_OCP_Fault BMS_Fault INV_C_OCP_Fault BAT_OCP_Fault AC_WU_OverVolt_Fault INT_BUS_unbalance_Fault...
  • Page 29 Description Description AC_WU_UnderVolt_Fault AC_OverTemp_Fault AC_VW_OverVolt_Fault DC_OverTemp_Fault AC_VW_UnderVolt_Fault AC_BypassOverPower_Fault AC_UV_OverVolt_Fault AC_U_BypassOverPower_Fault AC_UV_UnderVolt_Fault AC_V_BypassOverPower_Fault AC_OverFreq_Fault AC_W_BypassOverPower_Fault AC_UnderFreq_Fault EPO_Stop AC_GridCurr_DcHigh_Fault KeyEmergencyStop PV1_CurrHigh_Fault LcdEmergencyStop PV2_CurrHigh_Fault NO_Bat_Fault AC_GridCurr_High_Fault BAT_MainContactor_Fault AC_L1Curr_High_Fault AC_U_Overload_Fault AC_L1CurrDc_High_Fault AC_V_Overload_Fault AC_Overload_Fault AC_W_Overload_Fault AC_Lightload_Fault GFDI_Ground_Fault BAT_OverTemp_Fault AC_Contactor_Fault Smake_alarm_Fault GFDI_AirSwitch_Fault...
  • Page 30 6.3.2 Severe history failure table Description Description PV_Thunder_Fault PV_ Reseverd _Failure AC_Thunder_Fault IGBT_Failure BAT_Thunder_Fault EEPROM_Write_Failure BusVolt_Unbalance_Fault EEPROM_Read_Failure AC_MainContactor_Failure INT_PV3_OverCurr_Fault AC_SlaveContactor_Failure DC_GFDI_Fault GFDI_Failure BMS_Warning GFCI_Failure RISO_Failure Table 6.3.1 General histor y failure table BAT_MainContactor_Failure AC_BypassOverPower_Failure AC_U_BypassOverPower_Failure AC_V_BypassOverPower_Failure AC_W_BypassOverPower_Failure BAT_ Reseverd _Failure Reseverd_Failure Table 6.3.2 Severe histor y failure table...

  • Page 31: Fan Maintenance

    6.3.3 Inverter status Warning: Do not use a gas pump to clean the fan, as this may cause damage to the fan. Description Fan cleaning or replacement: wait 1. Before cleaning or replacing the fan, please make sure that the DC side and AC check side of the inverter have been disconnected.

  • Page 32: Regular Maintenance

    Table 7-2. the contract shall prevail. During the warranty period, ATESS products shall promptly present the invoice and date of purchase of the products to ATESS Service personnel during maintenance. At the same time on the product the nameplate logo should be clearly visible, otherwise it will not be repaired.
  • Page 33 Warranty condition ATESS will repair or replace the product free of charge during the warranty period; the faulty machine after replacement shall be owned by ATESS; the customer shall reserve a certain amount of time for ATESS to repair the faulty machine.
