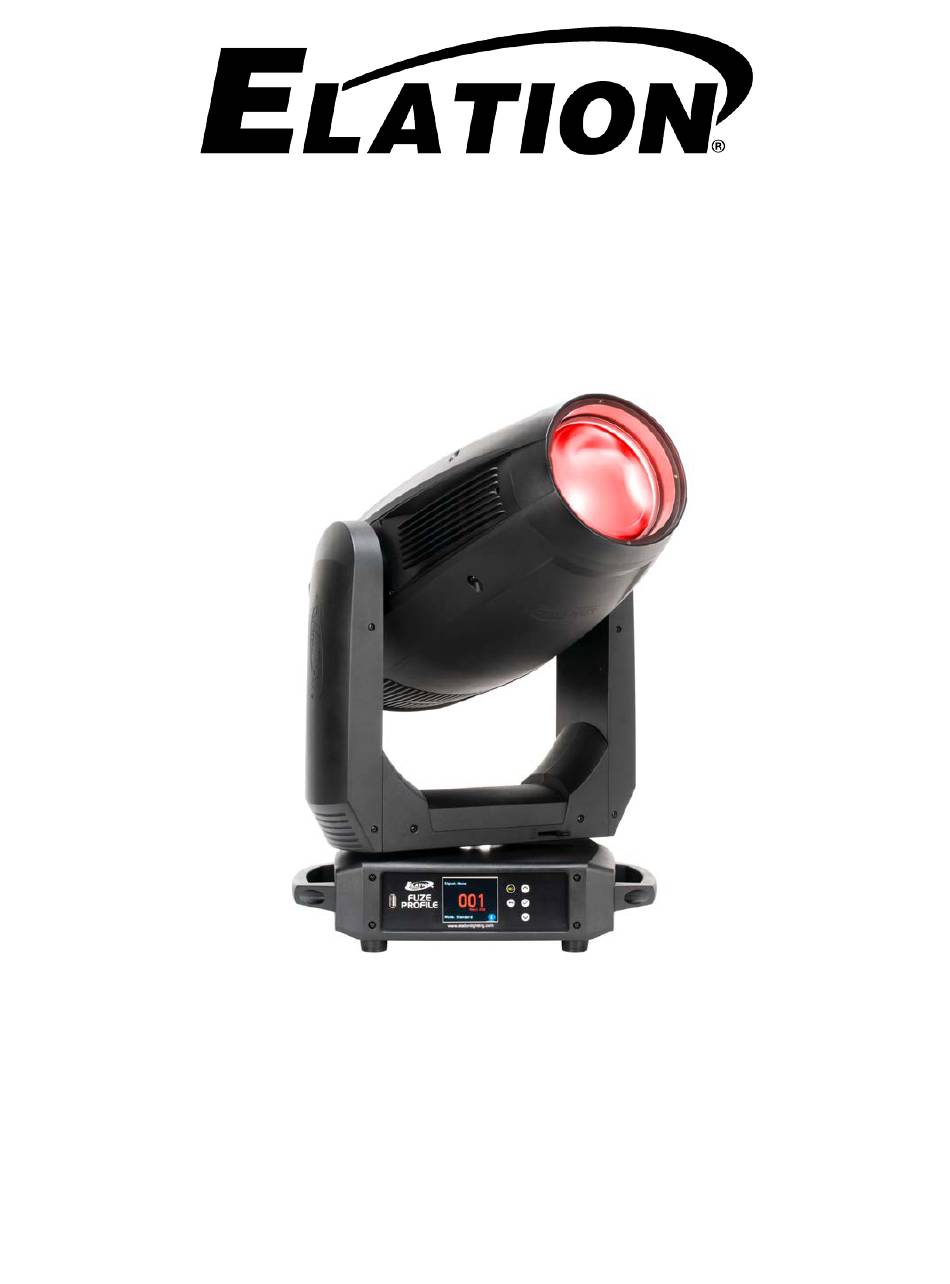

  • Page 1 FUZE PROFILE™ user manual...
  • Page 2 +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 D O C U M E N T V E R S I O N Due to additional product features and/or enhancements, an updated version of this document may be available online.
  • Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Fixture Transport and Handling Maintenance Guidelines Fixture Overview Colors Gobos and Animation Wheels Custom Gobos Gobo Replacement Snoot Installation Installation Guidelines Remote Device Management (RDM) System Menu Color LED Programming Guidelines...
  • Page 4 Snoot Omega Brackets (x2) Locking Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | support@elationlighting.com...
  • Page 5 B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States.
  • Page 6 (double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to ELATION in Los Angeles, CA or an ELATION Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box.
  • Page 7 This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 8 S A F E T Y G U I D E L I N E S • DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. •...
  • Page 9 F I X T U R E T R A N S P O R T A N D H A N D L I N G The device is a large format fixture that contains delicate optics and glass filters. While this product was carefully designed to be roadworthy, it must be handled carefully during transportation.
  • Page 10 Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer.
  • Page 11 F I X T U R E O V E R V I E W Lens Tilt Lock Pan Lock System Menu Display Power In/Out Menu Navigation Buttons Fuze Service Port 5pin DMX In/Out SAFETY CABLE ATTACHMENT POINT ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS DEVICE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS.
  • Page 12 C O L O R S Colors Color Temperature Green Shift Cyan Magenta Full Minus Green to Neutral Yellow 2700K – 8500K Neutral White Green Blue Mint Neutral to Full Plus Green Amber Virtual Gel Swatch Book Colors Pale Yellow Pink Sky Blue Straw...
  • Page 13 G O B O S A N D A N I M A T I O N W H E E L S INTERCHANGEABLE-ROTATING GLASS GOBO WHEEL 1 STATIC-FIXED GLASS GOBO WHEEL 2 ANIMATION WHEEL...
  • Page 14 GOBO MAX I.D. THICKNESS Ø 29.9 mm GOBO MAX O.D. Ø 30.0 mm GOBO HOLDER FUZE PROFILE ROTATING GLASS GOBOS - WHEELS 1 & 2 Gobo O.D. (Max. Outer Diameter) ф29.9mm Gobo I.D. (Max. Image Diameter) ф25.0mm Gobo Holder Diameter ф30.0mm...
  • Page 15 O B G O B O R E P L A C E M E N T Tilt Lock Pan Lock 1. Before removing covers, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a neutral upright position with both PAN and TILT locks engaged. 2.
  • Page 16 G O B O R E P L A C E M E N T 3. Locate the 4-pin GOBO Wheel Module Connector and carefully unplug it from its socket. DO NOT USE FORCE TO REMOVE CONNECTORS! To remove the module, loosen the (2x) slotted screws holding the brackets. 5.
  • Page 17 G O B O R E P L A C E M E N T 6. Carefully place the module on a stable flat surface in an INDOOR DUST FREE location. 7. REPLACING A ROTATING GOBO Locate the specific Rotating GOBO to replace. Carefully gripping the GOBO using your index finger and thumb, gently lift it slightly, and then pull it out and away until it fully clears the GOBO Wheel.
  • Page 18 S N O O T I N S T A L L A T I O N 4-Ø3.5mm [Ø0.14in] Ø148mm [Ø5.83in] snoot Ø136mm [Ø5.35in] 1. Place fixture on the stable flat surface and let cool for 15mins. 2. Align Snoot onto front lens so 4 screw holes on snoot match 4 screw holes on lens. 3.
  • Page 19 I N S T A L L A T I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE.
  • Page 20 I N S T A L L A T I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 21 I N S T A L L A T I O N G U I D E L I N E S FIXTURE MOUNTING POSITION The fixture may be mounted in any position in which the base of the fixture is oriented horizontally. Acceptable positions include standing the fixture upright or hanging the fixture upside-down.
  • Page 22 LEDs. This issue is not specific only to ELATION lighting fixtures, it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can prevent any potential damage from occurring if followed.
  • Page 23 R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.
  • Page 24 S Y S T E M M E N U The fixture includes an easy to navigate system menu. The LCD touch panel display located on the front of the fixture (see image below), provides access to the main system menu and is where all necessary system adjustments are made to the fixture.
  • Page 25 ELATION FUZE PROFILE™ - SYSTEM MENU Supports Software Versions: ≥ 1.09 DMX Address A001 ~ AXXX DMX Settings DMX Channel Mode Standard, Extended, CMY, CMY Extended No DMX Status Hold Last, Blackout, Internal Programs ON / OFF Primary Secondary ON / OFF...
  • Page 26 000-255 Pan Fine 000-255 Manual Tilt 000-255 Control Tilt Fine 000-255 000-255 Control 000-255 Speed 000-255 Program 0 Fade 000-255 Speed 000-255 Program 1 Fade 000-255 Internal Speed 000-255 Program 2 Programs Fade 000-255 Speed 000-255 Program 3 Fade 000-255 Speed 000-255 Program 16...
  • Page 27 C O L O R L E D P R O G R A M M I N G G U I D E L I N E S The fixture utilizes an advanced additive LED light engine that contains Red, Green, Blue, Mint and Amber LED which when combined, provides a brilliant high CRI White.
  • Page 28 F A N M O D E S The Fuze Profile is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera, or Orchestral Halls, it offers various fan operation modes which remove unwanted noise distractions for the audience and performers.
  • Page 29 D M X C H A N N E L F U N C T I O N S A N D V A L U E S FUZE PROFILE™ DMX Channel Values / Functions (59 DMX Channels) Supports Software Versions: ≥ 1.0.9 Features subject to change without any prior written notice.
  • Page 30 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Mint 0-255 0 → 100% Mint Fine 0-255 Fine Mint Control Amber 0-255 0 → 100% Amber Fine 0-255 Fine Amber Control Color Temperature Control 0-23 Disabled 2400K to 8500K (100K Steps) 24 -85 (See Table Page 34) 86-255...
  • Page 31 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Gobo Wheel 1 - Rotating Open 10-19 Gobo 1 20-29 Gobo 2 30-39 Gobo 3 40-49 Gobo 4 50-59 Gobo 5 60-69 Gobo 6 70-89 Gobo 1 Shake Slow to Fast 90-109 Gobo 2 Shake Slow to Fast 110-129 Gobo 3 Shake Slow to Fast...
  • Page 32 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Prism, Prism/Gobo Macros 0-63 Open 64-95 Prism 96-127 Idle 128-135 Prism/Gobo Macro1 136-143 Prism/Gobo Macro2 144-151 Prism/Gobo Macro3 152-159 Prism/Gobo Macro4 160-167 Prism/Gobo Macro5 168-175 Prism/Gobo Macro6 176-183 Prism/Gobo Macro7 184-191 Prism/Gobo Macro8 192-199 Prism/Gobo Macro9 200-207 Prism/Gobo Macro10...
  • Page 33 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Dimmer 0-255 Intensity 0 → 100% Dimmer Fine 0-255 Dimmer Fine Adjustment Dim Modes 0-20 Standard 21-40 Stage 41-60 61-80 Architectural 81-100 Theatre 101-120 Stage 2 Dimmer Delay Time 0.1s 0.2s 0.3s...
  • Page 34 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Animation Wheel Open 8-255 Animation Min to Max Animation Index Rotation 0-127 Animation Indexing 128-189 Animation Rotation CW Fast to Slow 190-193 No Rotation 194-255 Animation Rotation CCW Slow to Fast Blade 1A 0-255 Open to Close...
  • Page 35 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Framing Rotation 0-126 Min (-60 degrees) 127-128 Parallel (0 degrees) 129-255 Max (+60 degrees) Framing Rotation Fine 0-255 Framing Rotation Fine Framing Speed 0-255 Speed Max to Min Framing Macros 8-15 Framing Macro 1 16-23...
  • Page 36 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Pan / Tilt and Color Speed 0-225 Max to Min speed 226-235 Blackout by Movement 236-245 Blackout by All Wheel Changing 246-255 No Function Control 0-19 Color Change Normal 20-29 Color Change to Any position 30-39...
  • Page 37 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Refresh Rate (Hz) 1100 1110 1120 1130 1140 1150 1160 1170 1180 1190 1200 1210 1220 1230 1240 1250 1260 1270 1280 1290 1300 1310 1320 1330 1340 1350 1360 1370 1380...
  • Page 38 MODE / CHANNEL VALUE FUNCTION DEFAULT SNAP Standard Extended CMY Extended Refresh Rate (Hz) 2500 4000 5000 6000 10,000 15,000 20,000 25,000 169-190 Idle 191-195 Hibernation OFF 196-200 Hibernation ON 201-210 Dimmer Curve Linear (default) 211-220 Dimmer Curve Square 221-230 Dimmer Curve Inverse Square 231-240 Dimmer Curve S-Curve Internal Program 1 (Scene 1-8) Internal Program 2 (Scene 9-16)
  • Page 39 COLOR TEMPERATURE VALUE COLOR TEMP (K) VALUE COLOR TEMP (K) 2400 5500 2500 5600 2600 5700 2700 5800 2800 5900 2900 6000 3000 6100 3100 6200 3200 6300 3300 6400 3400 6500 3500 6600 3600 6700 3700 6800 3800 6900 3900 7000 4000...
  • Page 40 V I R T U A L G E L S W A T C H B O O K...
  • Page 41 D I M M E R C U R V E S...
  • Page 42 PLEASE CONTACT ELATION SERVICE FOR ADDITIONAL INFORMATION. An Elation C-Loader can be used to update the fixture to the latest software. Please visit the C-Loader product page at the Elation web site and download the product manual for step by step instructions.
  • Page 43 E R R O R C O D E S Error Codes subject to change without notice. ERROR CODES DESCRIPTION Movement is not located in the default position after the reset. PAN Er These messages will appear after a fixture reset if the magnetic- indexing circuit malfunctions (sensor failed, or magnet is missing) or there is a motor failure (defective motor or a defective motor IC drive on the main PCB).
  • Page 44 S P E C I F I C A T I O N S SOURCE GOBOS 305W 65000K RGBMA LED Engine 1x 6 Rotating / Indexing Interchangeable Glass 30,000 Hour Average LED Life* Gobos *Test lab condition. May vary depending on several factors 1x 7 Fixed Glass Gobos including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off...
  • Page 45 DIMENSIONAL DRAWINGS *drawings not to scale 396mm(15.59in) 408mm(16.06in) 518.2mm(20.4in) 273.5mm(10.77in) 111mm(4.37in) 256mm(10.08in) Specifications and improvements in the design of this unit and this manual are subject to change without notice.
  • Page 46 DIMENSIONAL DRAWINGS – With Snoot Attached *drawings not to scale Specifications and improvements in the design of this unit and this manual are subject to change without notice.
  • Page 47 O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp SIP126 5 ft. (1.5m) IP65 Twist Lock Power Link Cable AC5PDMX5PRO 5 ft.
  • Page 48 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
