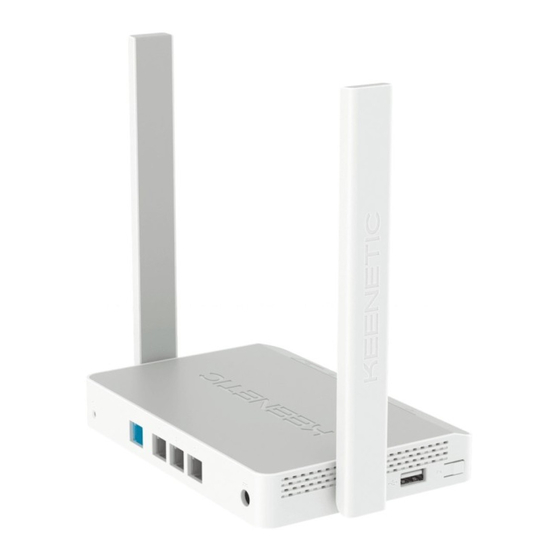

KEENETIC
CARRIER
Quick Start Guide
AC1200 Mesh Wi-Fi 5 Router with
a 4-Port Smart Switch and USB Port
Model: KN-1713
Installing Your Keenetic Carrier
1
Position your Keenetic Carrier (hereinafter 'Keenetic device') within
cable lengths of Ethernet and power outlets. Place your Keenetic device
in an open area for better wireless coverage.
2
Connect your Keenetic device to a power source. Check that both the
Status LED C and Wi-Fi LED D are illuminated and not blinking.
3
Сonnect a mobile device to your Keenetic device via Wi-Fi. The default
Wi-Fi name (SSID) and Wi-Fi password are printed on your Keenetic
device's back label along with a QR code that will automatically connect
your mobile device to the Keenetic device's Wi-Fi when scanned.
Alternatively, сonnect a computer to any gray Ethernet port on
your Keenetic device using the included Ethernet cable.
4
Once connected, an Initial Setup Wizard window will appear on your
mobile device / computer. If the Wizard does not appear, using
a browser go to my.keenetic.net.
Note: If the Initial Setup Wizard doesn't appear, please refer
to the Frequently Asked Questions section below.
5
In the Initial Setup Wizard window that appeared, select the
configuration option.
To create a new network and connect it to the Internet, choose
the appropriate connection type and follow the setup instructions.
To extend an existing network and add this Keenetic device
as a Wi-Fi extender, choose the 'To switch to Wi-Fi Extender Mode'
option and follow the setup instructions.
0 1 2 3
10:00
Welcome to
Your Keenetic
Next
For technical support and other information, please visit
help.keenetic.com
