Belleze Dale 014-HG-41900-HT Manual

Belleze Dale 014-HG-41900-HT Manual

Tv stand with fireplace

Advertisement

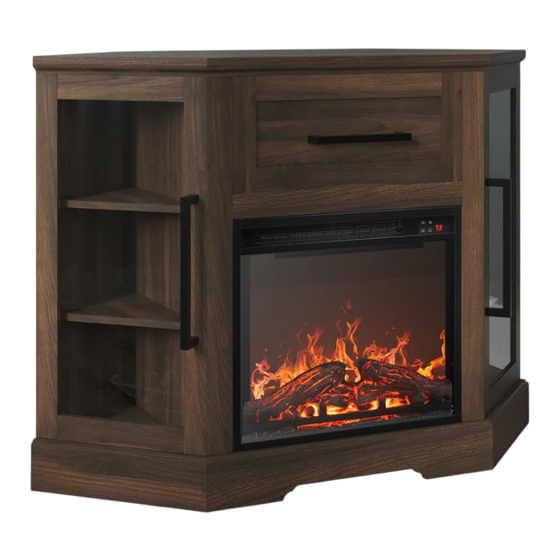

Dale TV Stand with Fireplace
FOLLOW US:
@bellezefurniture
CONTACT INFO:
support@belleze.com
1-800-682-6376
www.belleze.com
ITEM NO. 014-HG-41900-HT
The instruction booklet contains IMPORTANT
safety information. Please read it in full and
keep it for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dale 014-HG-41900-HT and is the answer not in the manual?

Questions and answers

Summary of Contents for Belleze Dale 014-HG-41900-HT

  • Page 1 Dale TV Stand with Fireplace FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41900-HT The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
  • Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 60 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 15 lb Maximum Load 15 lb...
  • Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
  • Page 4: Package Contents

    PACKAGE CONTENTS...
  • Page 5 PACKAGE CONTENTS CODE DESCRIPTION Top Panel Left Panel Left Median Panel Right Median Panel Right Panel Base Center Storage Shelf Panel Fire Mantel Trim Top Panel Fire Mantel Side Trim Panel Back Panel Left Storage Shelf Panel Right Storage Shelf Panel Cabinet Door Drawer Front Panel Drawer Left Panel...
  • Page 6 PACKAGE CONTENTS 31x + 3x 31x + 3x 27x + 2x 24x + 2x 12x + 1x Install all hardware perpendicular to the opening.
  • Page 7 PACKAGE CONTENTS 16x + 1x Install all hardware perpendicular to the opening. v.07132022...
  • Page 8 Required tools for assembly (Not included) Attach cam bolts on the median panels and on the fire mantel side trim panels.
  • Page 9 Insert wood dowels to the median panels. Attach the fire mantel side trim panels to the median panels. v.07132022...
  • Page 10 Attach drawer slide mounting brackets to the median panels.
  • Page 11 Attach cam bolts to the base and the fire mantel top trim panel. Insert wood dowels to the center storage shelf panel, and attach the fire mantel top trim panel to it. v.07132022...
  • Page 12 Attach center storage shelf panel between the two median panels. Assemble the median panels on top of the base.
  • Page 13 Slide in the back panel. Insert wood dowels to the left and right panel. v.07132022...
  • Page 14 Assemble the left and right panel to the base. Attach cam bolts on the under side of the top panel.
  • Page 15 Assemble the top panel on top of the assembly. v.07132022...
  • Page 16 Secure the back panel in place...
  • Page 17 Set the fireplace inside the fire mantel. Set the fireplace from the back of the fire mantel and center it in the opening. For the exact instruction, please refer to the user’s manual provided with the fireplace. NOtE: Do not attempt to install the fireplace from the front of the fire mantel. It will not fit.
  • Page 18 Attach cam bolts on the back side of the drawer front panel.
  • Page 19 Attach drawer slides to the drawer side panels. Assemble the drawer back panel between the drawer side panels. v.07132022...
  • Page 20 Slide in the drawer bottom panel. Assemble the drawer support bar to the drawer assembly.
  • Page 21 Assemble the drawer front panel to the drawer assembly. Attach the drawer handle to the drawer. v.07132022...
  • Page 22 Secure the drawer support bar to the drawer front panel. Attach door hinges on the cabinet doors.
  • Page 23 Attach door handles on the cabinet doors. Slide drawer into the TV stand. Up and down adjustment by loosening the screws on the drawer slide. v.07132022...
  • Page 24 Insert shelf pegs into the TV stand and put on the storage shelf panel.
  • Page 25 Assemble cabinet doors to the TV stand. Up and down In and out adjustment Side to side adjustment adjustment by by loosening the screws using the front loosening the screws on the hinge arm. adjustment screw on on the mounting plate. the hinge.
  • Page 26 Attach anti-strap behind the fire mantel.
  • Page 27 Affix the TV stand to the wall. Furniture must permanently fixed to the wall stud with included anti-tipping device to prevent the furniture from tipping over. • Mark the drill position on the wall with a pencil. • Drill a small hole on the marked position. •...
  • Page 28 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
  • Page 29 ⚠ WARNING For use with televisions weighing 70lbs (31.7kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
  • Page 30 FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •...
  • Page 31 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.07132022...
  • Page 32: Warranty

    WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Encounter any difficulties or missing parts? Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
