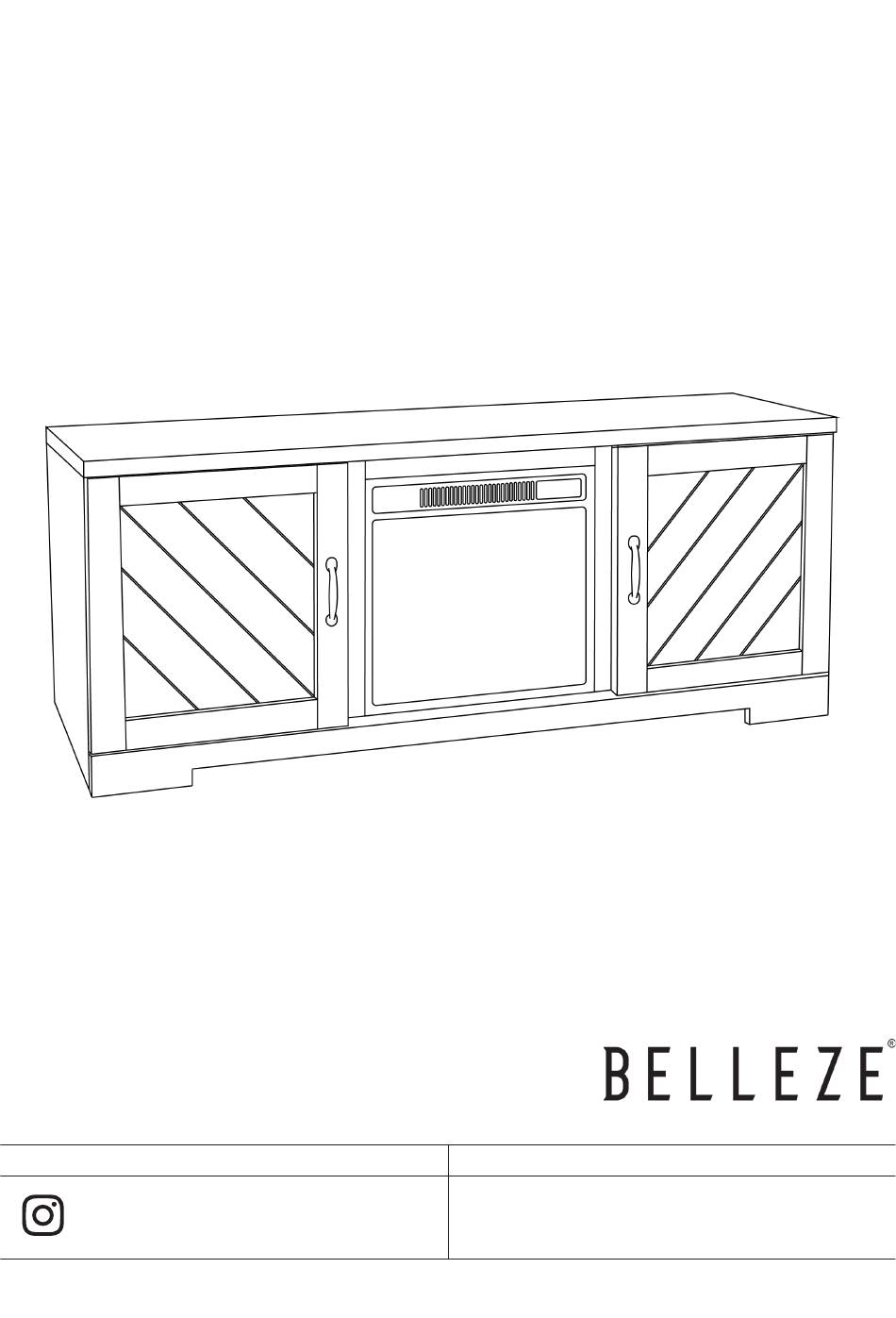

- Page 1 Hilo TV Stand w/ Fireplace FOLLOW US: CONTACT INFO: ITEM NO. 014-HG-41002-HT The instruction booklet contains IMPORTANT support@belleze.com @bellezefurniture safety information. Please read it in full and 1-800-682-6376 keep it for future reference. www.belleze.com...
- Page 2 Scan this QR Code to view our online tutorial Estimated time for assembly: 120 mins Weight limitations are as follows: Maximum Load 70 lb Maximum Load 20 lb...
- Page 3 Assemble the furniture on an empty carton, carpet, or rug to prevent scratches or damage. For safety, please keep pets and children away from the assembly area. Ensure the product is fully assembled before use. If you are missing any hardware or products, do not use it until you have restored the missing parts.
-
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 PACKAGE CONTENT (A) CODE DESCRIPTION Top Panel Bottom Panel bottom front support bottom back support top cross bar left vertical strip right vertical strip back panel PACKAGE CONTENT (B) CODE DESCRIPTION Left Side Panel Right Side Panel Left Devider Right Devider removable shelf Left Door Right Door...
- Page 6 PACKAGE CONTENTS 28x + 2x 28x + 2x 30x + 3x 24x + 2x Install all hardware perpendicular to the opening.
- Page 7 Required tools for assembly (Not included) Attach support legs bracket to the underside of the bottom panel.
- Page 8 Attach cam bolts to the underside of the bottom panel. Attach support legs to the bottom panel.
- Page 9 Attach cam bolts to the front leg. Attach the front and back legs to the bottom panel.
- Page 10 Attach cam bolts to the left and right side panels. Assemble the left and right panels to the base.
- Page 11 Attach cam bolts on top of the bottom panel. Assemble the left and right medial panels on the bottom panel.
- Page 12 Slide the back panels to the grooves in the side and medial panels.
- Page 13 Attach cam bolts to the left and right trim panel. Insert wood dowels to the side of the crossbar, and assemble the crossbar between the trim panels.
- Page 14 Assemble the trim frame in front of the medial panels. Attach cam bolts to the underside of the top panel.
- Page 15 Note: Screws are provided in the heater package. CAUTION The heater has a glass front panel. Careful when handling glass to prevent injury or damage. Set the unit from the back of the fireplace mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws through the drilled holes on the mantel.
- Page 16 Insert wood dowels on top of the side and medial panels.
- Page 17 Assemble the top panel on top of the TV stand.
- Page 18 Secure the back panels in place.
- Page 19 Attach door hinges to the cabinet doors. Attach door handles to the cabinet doors.
- Page 20 Attach cabinet doors to the TV stand. Adjust the position of the cabinet doors. Up and down In and out adjustment Side to side adjustment adjustment by by loosening the screws using the front loosening the screws on the hinge arm. adjustment screw on on the mounting plate.
- Page 21 Insert shelf pegs into the TV stand and put on the storage shelf panel. YOU’RE FINISHED!
- Page 22 Warning Only place items on top of the product if they meet the recommended size and weight limits. Climbing on, stepping on, or placing overweighted objects on the product may cause property damage and/or injuries. Items placed onto this product must be resting on a support surface without hanging over the edges.
- Page 23 WARNING For use with televisions weighing 70lbs (31.8kg) or less. Use with heavier televisions may result in instability, causing tip over resulting in death or serious injury. Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
-
Page 24: Maintenance
FURNITURE CARE AND MAINTENANCE Medium - Density Fiberboard Thank you for your purchase. We want your item to last as long as possible. To ensure the product gives you years of longevity, please follow the recommendations in this care and maintenance guide. MAINTENANCE •... - Page 25 © All copyright of this document belongs to BELLEZE . This document may not be printed, translated, reproduced, or distributed in whole or in part without written permission from BELLEZE. v.05302023...
-
Page 26: Warranty
WARRANTY BELLEZE products come with a 1-year warranty from the date of delivery. Register your product on our website to enjoy our limited lifetime warranty! AFTER-SALE SERVICE Contact us at 1-800-682-6376 or email us at support@belleze.com We will send you replacement.
