Quick Installation Guide

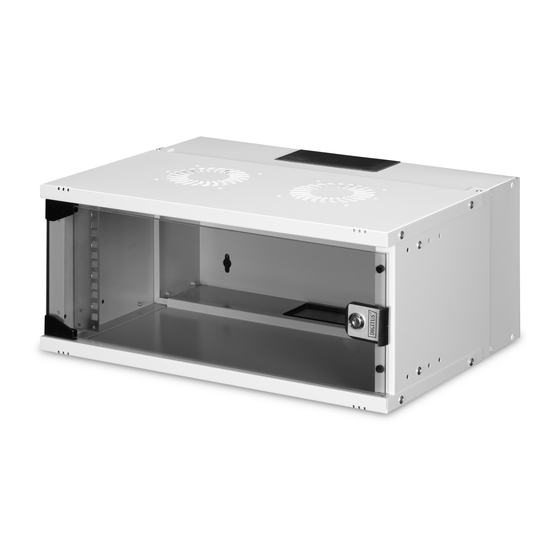

Wall Housing SOHO PRO Series
1
Open the box.
Öffnen Sie den Karton
3
4
DETAIL A
Slide the bottom panel onto the body in the direction of the arrows.
As shown the details, insert the recesses of the bottom panel into the gap of the body.
Schieben Sie die Bodenplatte in Pfeilrichtung auf das Gehäuse.
Führen Sie die Aussparungen der oberen Platte in die Aussparung des Gehäuses ein (siehe Details).
2
Take the Soho cabinet out of the box.
Nehmen Sie den SoHo-Schrank aus dem Karton.
Open the hinged side panels of the body.
Öffnen Sie die aufklappbaren Seitenteile der Karosserie.
B
A
DN-49200, DN-49201, DN-49202,
DN-49203, DN-49204, DN-49205,
DN-49206, DN-49207
DETAIL B INSIDE VIEW
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digitus SOHO PRO Series
Summary of Contents for Digitus SOHO PRO Series
- Page 1 Quick Installation Guide DN-49200, DN-49201, DN-49202, DN-49203, DN-49204, DN-49205, Wall Housing SOHO PRO Series DN-49206, DN-49207 Open the box. Take the Soho cabinet out of the box. Nehmen Sie den SoHo-Schrank aus dem Karton. Öffnen Sie den Karton Open the hinged side panels of the body.
- Page 2 Quick Installation Guide DN-49200, DN-49201, DN-49202, DN-49203, DN-49204, DN-49205, Wall Housing SOHO PRO Series DN-49206, DN-49207 Bottom panel / Bodenplatte DETAIL C screw The quantities in the table below will be applied on the 5th step. Die in der nachstehenden tabelle aufgeführten mengen...
- Page 3 Quick Installation Guide DN-49200, DN-49201, DN-49202, DN-49203, DN-49204, DN-49205, Wall Housing SOHO PRO Series DN-49206, DN-49207 DETAIL E Insert the bottom hinge pin of the glass door into the hinge hole of the bottom panel. Stecken Sie den unteren Scharnierstift der Glastür in das Scharnierloch der Bodenplatte.
- Page 4 Quick Installation Guide DN-49200, DN-49201, DN-49202, DN-49203, DN-49204, DN-49205, Wall Housing SOHO PRO Series DN-49206, DN-49207 DETAIL H Assemble the top panel to the body using 4 screws. Befestigen Sie die obere Platte mit 4 Schrauben am Gehäuse. DETAIL I DETAIL J Place the cabinet on the floor, ensuring that the bottom panel touches the ground.
