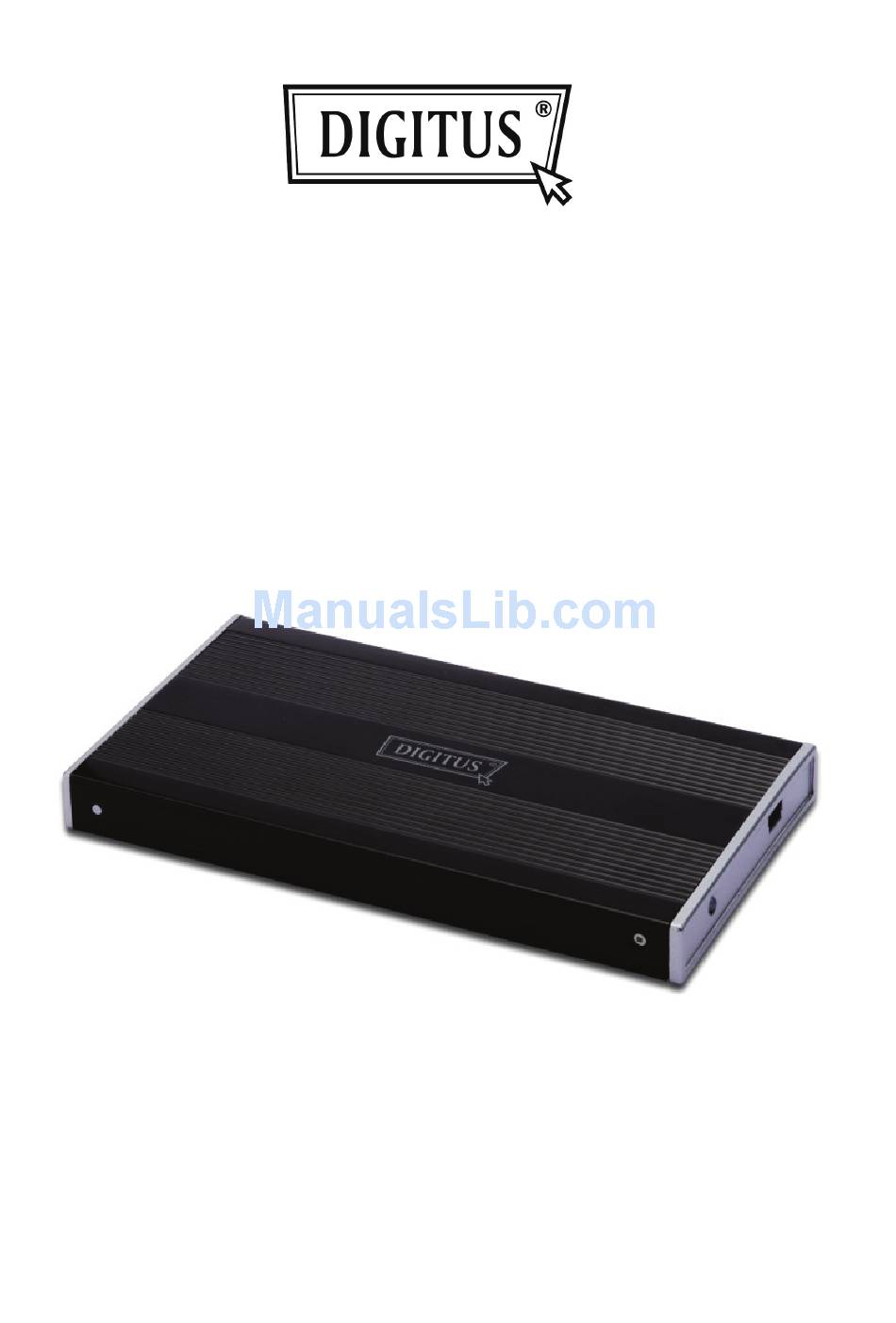

- Page 1 IDE to USB2.0 HDD External Enclosure 2.5 (DA-70550-1) User Manual...
- Page 2 I. Foreword Congratulations on your purchase of our product! We will show you a new storage concept with safety and convenience. It is our pleasure to give you the best solution to expand your HDD`s Capacity and enhance your data`s reliability in PC system or Mac system.
- Page 3 V. Hardware Installation Install a 2.5" IDE HDD into the enclosure 1. Put out the PCB board with back case. 2. Paste the HDD label to the HDD bottom. 3. Attach the 2.5" hard disk drive (HDD) to the 44pin connector of the PCB board 4.
- Page 4 VI. Driver Installation a. Driver setup mode under Windows98SE 1)Start the operating system mentioned above 2)Connect the USB external box(which have installed a HDD) and PC with USB cable 3)System will automatically detect new device and search the suitable driver 4)Insert the CD driver and select [search available driver], and click [Browse] 5)Point and select the relative disk drive such as [G]...
- Page 5 Connect the USB extended power jack: 1. Connect the HDD installed enclosure to your computer's USB/FW port with the USB2.0 multiple/FW cable 2. Connect the red color of USB extended power jack which been mounted on the enclosed USB2.0 multiple cable to your computer's the other USB port DATA USB Connector To External Box...
- Page 6 Disclaimer All the information in this document is subject to change without prior notice The manufacturer makes no representations or any warranties regarding the Contents of this manual. The information contained in this manual is provided for the general use by the customers.
