Wali M004 Installation Manual

INSTALLATION MANUAL

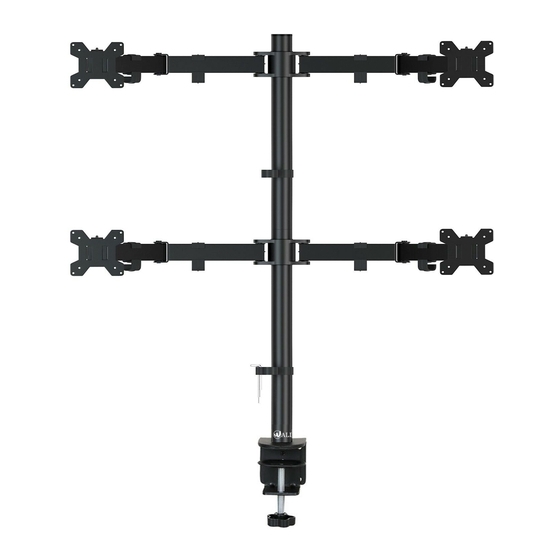

Quad Monitor Desk Mount
M004
Supplied Parts List
Lower Pole Upper Pole C-Clamp
A1 (x1) A2 (x1)
Nut M4x12 Bolt M4x30 Bolt
E (x4) F (x16)
2
Option A : Clamp Installation
1. Connect Lower Pole a and C-Clamp Brace c from the bottom A1 B2
using M5x14 Bolt f and tighten with Allen Key 3mm o . J1 I
A1
J1
I
C-Clamp Brace Support Plate
B1 (x1) B2 (x1) B3 (x1)
M4~M6 Spacer Allen Key
G (x16) H (x16) I (x1)
2. Remove the screw and washer at the top of the M10 Hand Knob N and connect the M10 handle N , C-clamp
screw and washer that were just removed. Select the preferred height according to your desk thickness. Connect C-Clamp
using M8x12 Bolt , and tighten with Allen Key 5mm I . Rotate the hand knob N clockwise to fasten for stability.
J2
J1
B4
B2
