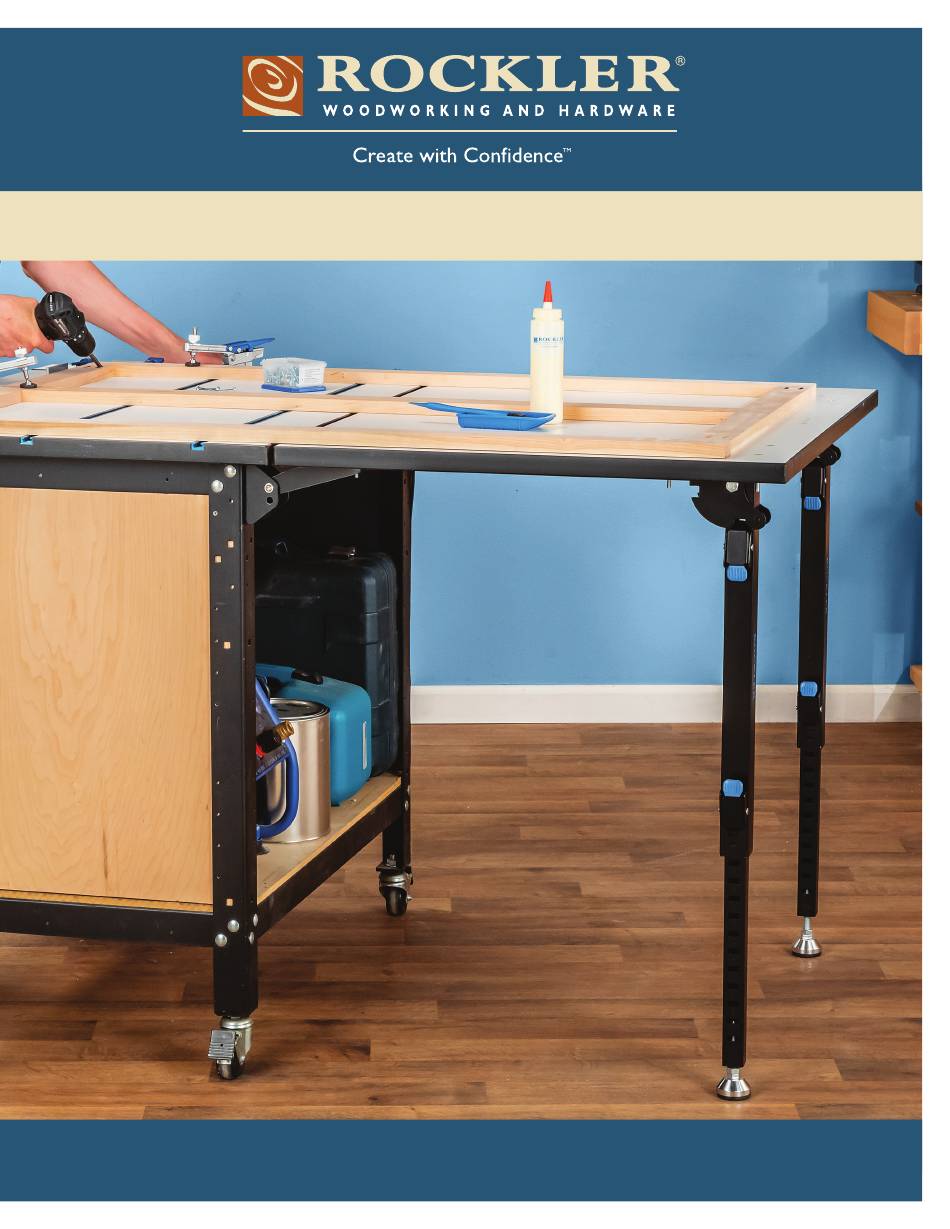

- Page 1 Rock-Steady Folding Top Extension Kit Instructions Effective June 2022 Review full instructions prior to use for important safety information. Always check Rockler.com to confirm that you are using the most recent version of instructions for your product.
-
Page 2: General Safety Warnings
Instructions and safety warnings for your product (see the to ensure that anyone you allow to use this product reads Instructions link on the product page at Rockler.com). and complies with all instructions and safety precautions outlined in this manual prior to use. - Page 3 PRODUCT SPECIFIC SAFETY WARNINGS > The Rock-Steady Folding Top Extension Kit is NOT > To avoid tipping, do NOT overload table; make sure load designed for – nor should it be used for – wall mounting. is centered on table surface. >...
-
Page 4: Parts List
PARTS LIST Quantity Quantity Tabletop Bracket 5/16"-18 Carriage Bolt Stand/Bench Bracket M6 x 50mm Flathead Bolt Plastic Bushing Flat Washer Barrel Bushing M6 Nylon Insert Locknut M6 Flanged Bolt 10 Adjustable Leg Assembly... - Page 5 Keep track of the washers and nuts; you will reuse them to Rockler’s legacy shop stands. attach the bracket/hinge assemblies. To reconfigure each bracket/hinge assembly for Rockler’s 2. Make sure that your bracket/hinge assemblies are legacy shop stands: configured to match your model of shop stand. If they’re 1.
- Page 6 1/16" Gap Mounting to the legs your workbench Mounting to the underside of the top of your workbench Attaching Brackets to Wooden Workbench 1. Make sure that your bracket/hinge assemblies are D. Chuck a countersink in your drill to ease the edges of the configured so that the straight vertical set of square holes holes you just made so that the heads of the M6 x 50mm on the Stand/Bench Brackets (2) is at the top.
- Page 7 E. Chuck a countersink in your drill to ease the edges of the holes on the top of the benchtop so that the heads of the M6 x 50mm Flathead Bolts (7) will sit flush to the surface. F. Attach each bracket/hinge assembly to the workbench leg with three M6 x 50mm Flathead Bolts (7), three Flat Washers (8) and three M6 Nylon Insert Locknuts (9).
- Page 8 7. Flip the tabletop so you can access the top face. Chuck a countersink into your drill to ease the edges of the holes you just made so that the heads of the M6 x 50mm Flathead Bolts (7) used to mount the Tabletop Bracket (1) to the tabletop will sit flush to the surface.
- Page 9 7. To raise the table, follow the same process in reverse. Locknut (9) at each mounting location. Folding the Tabletop for Storage Check Rockler.com for updates. If you have further questions, please contact our Technical Support Department at 1-800-260-9663 1. Remove everything from the extension table.
- Page 10 Page Left Blank Intentionally...
- Page 11 Shop Drawings Leg Mounting Hole Template Scale: 1" = 1"...
- Page 12 53687 Distributed by Rockler Companies, Inc. 1-800-279-4441 Rev 06/22 4365 Willow Dr. Medina, MN 55340 www.rockler.com...
