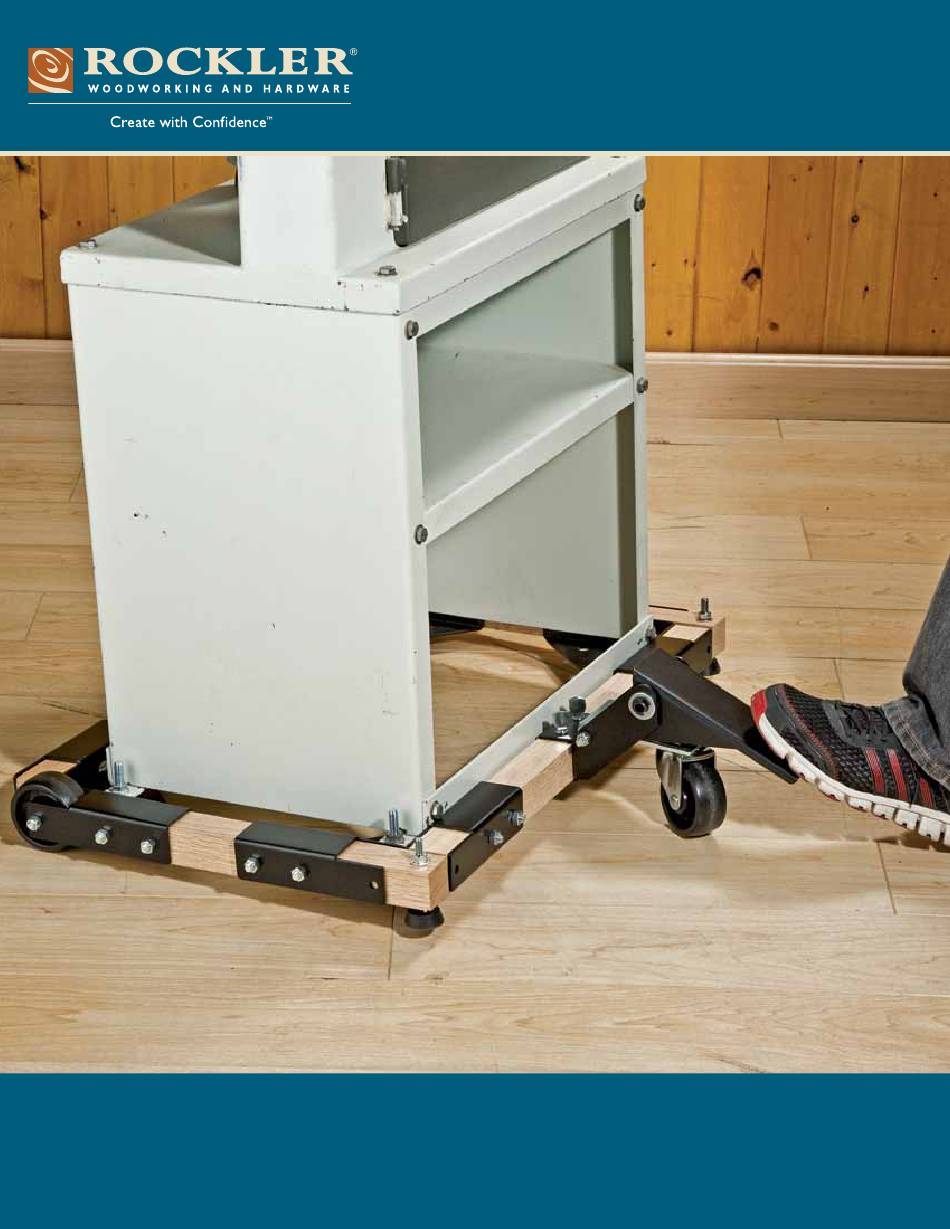

Congratulations on your purchase of the Power Tool Mobile Base! Follow these simple assembly instructions
and you'll be moving your large power tools around easily in no time.
Please read these instructions completely before starting to assemble your Power Tool Mobile Base.
Familiarity with the process will make the steps easier to understand. Please follow all steps carefully.
Power Tool Mobile
Base Instructions
Advertisement
Related Manuals for Rockler Power Tool Mobile Base
Summary of Contents for Rockler Power Tool Mobile Base
- Page 1 Power Tool Mobile Base Instructions Congratulations on your purchase of the Power Tool Mobile Base! Follow these simple assembly instructions and you’ll be moving your large power tools around easily in no time. Please read these instructions completely before starting to assemble your Power Tool Mobile Base.
- Page 2 PARTS list Quantity Quantity 1 Corner Bracket 9 1/2" x 4" Pin 2 Caster Assembly 1 0 5/16" Flat Washer 1 1 5/16"-18 Hex Nut 3 Wheel 4 Foot Lever 1 2 5/16"-18 Lock Nut 5 Pivot Bracket 1 3 5/16"-18 x 2" Carriage Head Screw 6 Leveling Legs 1 4 1/2" Flat Washer 1 5 Retaining Ring 7 5/16"-18 x 4" Hex Head Screw 8 5/16"-18 x 2 1 6 5/16"-18 x 2" Thumb Screw ⁄...
- Page 3 Fig. 1 Fig. 2 Base Assembly 1. Place the Wheels (3) into two Corner Brackets (1) and secure using the 2 ⁄ " Hex Head Screw (8) from inside the Corner Bracket (1) and secure with the 5/16"-18 Lock Nut (12). Fig. 1. Note: When the Corner Brackets (1) are at 90° angles from each other the Wheels (3) should point in the same direction. 2. Determine best placement of Foot Lever (4) and wheels, keeping in mind that the Foot Lever (4) must be attached opposite the wheels. Note: Foot Lever (4) location must not interfere with the machine or cause the machine to be top-heavy Fig. 3 when in the raised position. 3. Measure the footprint of the machine and add 1/2" to the width and length for the wood frame dimensions. 4. Cut two pieces of 1 ⁄ " x 1 ⁄ " hardwood for each measurement to make the frame (Total of 4 pieces). 5. Feed the cut pieces through the metal frame and align them so they are flush with the corners Fig. 2. 6. Mark placement of holes in the Corner Brackets (1) on the wooden pieces. 7. Position the Pivot Bracket (5) halfway on the foot Fig. 4 leveler board and mark hole locations. Fig. 3.
- Page 4 Fig. 9 Attention Rockler Plan User Before starting, please read the plan completely. Check Rockler.com for updates that may not be included on this copy. If you have further questions, please contact our Technical Support Department, 1-800-260-9663 or support@rockler.com Fig. 10...
