Instructions

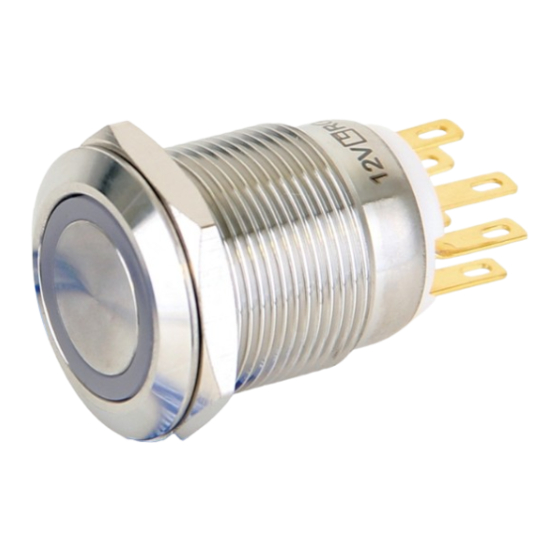

Illuminated Remote
Run Button Kit
Used for remote indication of pump state and to initiate a manual lube operation with a G3
or Electric Grease Jockey pump. For professional use only.
Kit Nos.*:
*All Kits rated IP65
Remote
.
Manual Run Kit
No.
Voltage
571030
12 V
571031
24 V
571032
12 V
571033
24V
Important Safety Instructions
Read all warnings and instructions in this
manual and the G3 Pump or Electric Grease
Jockey instruction manual included with your
unit. Save these instructions.
Parts Included in Kits
Item
No.
Description
1
BUTTON, push
2
CONNECTOR, quick
3
LABEL, run
HARNESS, wiring, M12 to bare
4
wire, Kits 571032, 571033
5
O-RING
Includes M12
Cable
No
No
Yes
Yes
Qty
1
4
1
1
1
3A0528J
EN
Advertisement
Related Manuals for Graco 571030
Summary of Contents for Graco 571030
- Page 1 Electric Grease Jockey pump. For professional use only. Kit Nos.*: *All Kits rated IP65 Remote Manual Run Kit Includes M12 Voltage Cable 571030 12 V 571031 24 V 571032 12 V 571033 Important Safety Instructions Read all warnings and instructions in this...
- Page 2 Instructions 1. Disconnect power source to pump. 2. Drill hole in panel or plate. (See illustration on the right for cutout dimension. Maxi- mum panel thickness is 0.472 in./12.0 mm). 8. Connect wiring harness (4) to button (1). Refer to 3.
- Page 3 Testing Manual Run G3 5-Wire CPC Power Cable 1. Power up G3 and enter Setup Mode by pressing Press remote run button and verify light function both the UP and DOWN ARROW buttons together according to the table (below) and unit has entered the for 3 seconds.
- Page 4 All written and visual data contained in this document reflects the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice. Original instructions. This manual contains English. MM 3A0528...
