MP10 3D Printer
P/N 34437, 34577, 34578
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34437 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice 34437

Summary of Contents for Monoprice 34437

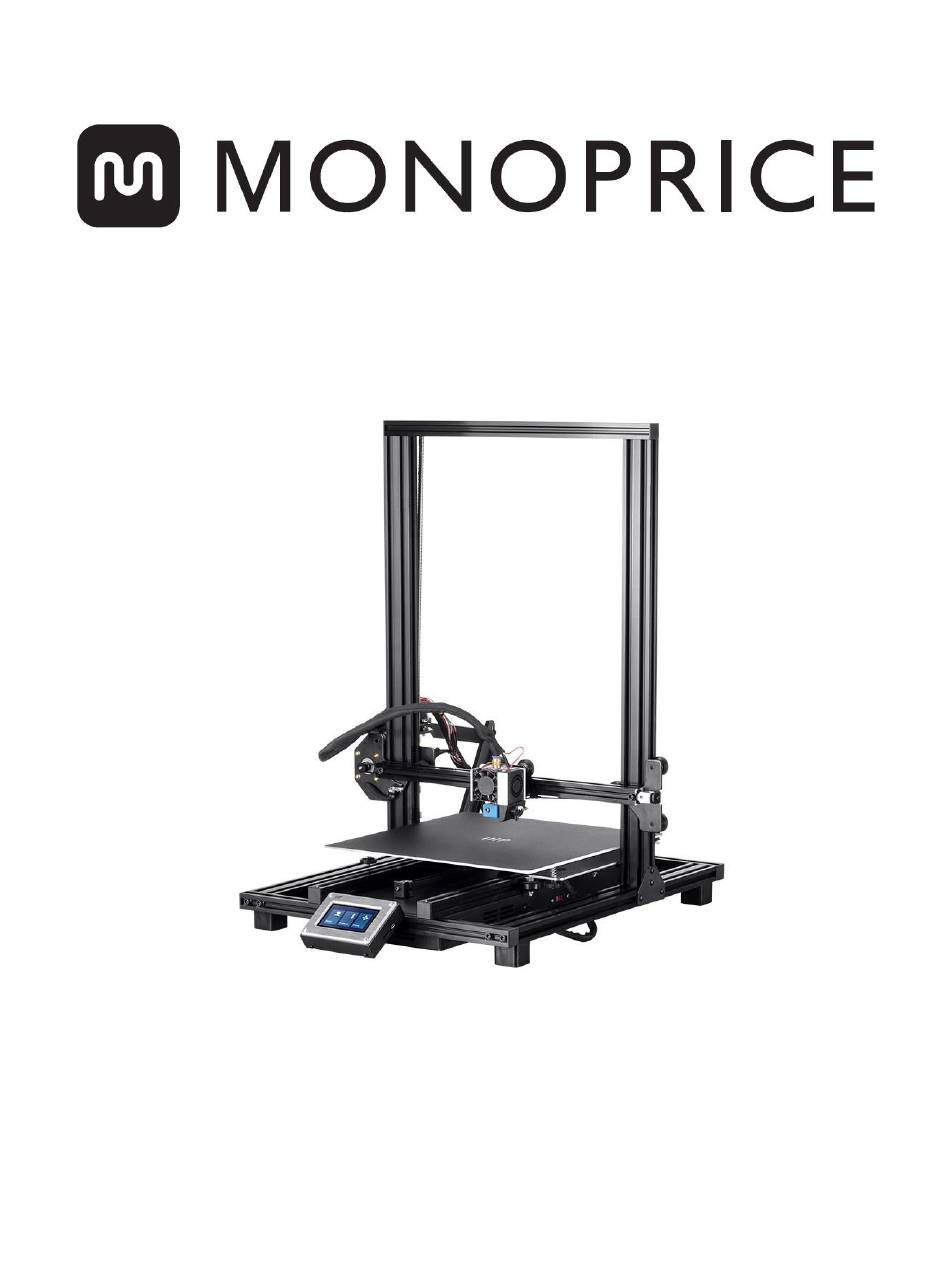

  • Page 1 MP10 3D Printer P/N 34437, 34577, 34578 User's Manual...

  • Page 2: Table Of Contents

    CONTENTS SAFETY WARNINGS AND GUIDELINES ............................3 INTRODUCTION ........................................ 4 FEATURES ..........................................4 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS ....................................5 PRODUCT OVERVIEW ....................................6 INSTALLATION ........................................8 SETUP ............................................9 ASSISTED LEVELING ....................................13 GLOBAL Z OFFSET LIVE LEVEL ................................. 14 OPTIONAL WI-FI SETUP ..................................

  • Page 3: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES  Be careful not to damage the PC paper on the build plate.  Take care to avoid touching hot parts, including heat blocks, extruder nozzle, extruded filament, and the heated build plate.  Do not wear gloves when operating or repairing to avoid entanglement. ...

  • Page 4: Introduction

    INTRODUCTION Thank you for purchasing this 3D printer from Monoprice! This printer features a single extruder, which is capable of printing in PLA, ABS, and other materials. You can print from a Windows® or Mac® PC using a USB connection or can print from 3D model files stored on a memory card, without the need for a PC connection of any kind.

  • Page 5: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com.

  • Page 6: Product Overview

    PRODUCT OVERVIEW 1. Extruder 2. LCD touch screen 3. Micro USB and microSD™ ports 4. Power switch 5. AC power connector...
  • Page 7 6. Filament holder 7. Feed mechanism...

  • Page 8: Installation

    INSTALLATION 1. Use the included 4mm hex wrench and 8x M4x6 screws (4x on each side), to attach the vertical part of the frame to the horizontal part of the frame.

  • Page 9: Setup

    2. Use the included 2.5mm hex wrench and 4x M5x20 screws to secure the vertical frame to the horizontal frame from the bottom. 3. Use the included 2.5mm hex wrench to loosen the screw marked with the red circle. Remove the screw rod, then re-tighten the screw. 4.
  • Page 10 4. Touch the Preheat button on the Main Menu. 5. Touch the Nozzle button, then set the temperature of the nozzle to your target value, which depends on the type of filament you are using. 6. Touch the Bed button, then the temperature to the target temperature for your filament type.
  • Page 11 10. While squeezing the lever on the Feed Mechanism, insert the filament and push it into opening. Keep pushing until you feel resistance as it hits the extruder. Release the lever on the Feed Mechanism. 11. Touch the button in the E column on the Move Menu to feed the filament into the extruder.
  • Page 12 15. After the first layer has been printed, touch the Pause or Cancel button to stop printing. 16. Compare the first layer with the images in the table below to determine whether the build platform needs to be leveled or not. If it does need adjustment, touch the AUTO LEVELING Cancel button, then perform the steps in the section.

  • Page 13: Assisted Leveling

    ASSISTED LEVELING If the gap between the nozzle and the build platform is not correct, use the Auto Level function to adjust the gap. You will want to perform Auto Leveling before using the printer for the first time or after it is moved. Note that the Auto Level function will determine the local offsets for each location on a 5"x5"...

  • Page 14: Global Z Offset Live Level

    4. Once the gap is where you want it, touch the button to save the data and exit the menu. GLOBAL Z OFFSET LIVE LEVEL While printing is in progress, you can adjust the global Z offset. To do this, touch the Tune button on the print screen, then touch the CLOSE button to decrease the gap between the nozzle and the print bed or the FAR button to increase it.
  • Page 15 7. Locate and select the WiFi.gcode file. Once the printer centers the print head, the process has been completed and your printer should connected to your Wi-Fi® network. Notes: 1. You may have difficulty connecting to the Wi-Fi® network if you have a 2.4GHz and 5GHz network with the same SSID.

  • Page 16: Software Installation And Setup

    SOFTWARE INSTALLATION AND SETUP As you've seen, you can print a model directly from a gcode file on a microSD card and ™ this is the preferred method, as it does not require a continuous connection to your computer. You can download gcode files to the microSD card and print them without having to build any model files.
  • Page 17 3. Use the file browser to select an install directory or accept the default directory (recommended). Click the Next button to continue. 4. Ensure that all boxes are checked, then click Install to continue. 5. Click Finish to complete the installation and launch the Cura program.
  • Page 18 6. Click Printer > Printer > Add Printer... 7. Click the Other option, then choose the Monoprice MP10 entry. Click the Add Printer button to continue.

  • Page 19: Repetier-Host

    8. The Machine Settings screen will be displayed. Click the Close button to finish the Cura installation. Repetier-Host You can also install Repetier-Host from the file on the included microSD™ card. The screenshots below show the proper Repetier-Host settings to use for this printer.

  • Page 21: Technical Support

    TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 22: Eu Declaration Of Conformity

    EU Declaration of Conformity Monoprice, Inc. declares the product described within this user guide or manual is in compliance with below applicable directives. The full text of the EU Declaration of Conformity is available at the following internet address: https://www.monoprice.com/product?c_id=107&cp_id=10724&cs_id=1072403&p_id=34437...

  • Page 23: Weee Information

    Electric and Electronic Equipment (WEEE). This document contains important information for users with regards to the proper disposal and recycling of Monoprice products. Consumers are required to comply with this notice for all electronic products bearing the following symbol: For Consumers in the European Union: This EU Directive requires that the product bearing this symbol and or its packaging must not be disposed of with unsorted municipal waste.

  • Page 24: Safety Notice

    Safety Notice WARNING: Do not use this product near water, for example, in a wet basement or near swimming pool or in an area where accidental contact with water or liquid might occurs. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from the surge caused by lightning.
