OneSpace is a Trademark of Comfort Products, Inc.
ASSEMBLY INSTRUCTIONS
MODEL 50-1617CO
SUPPLIER CODE: SPRG

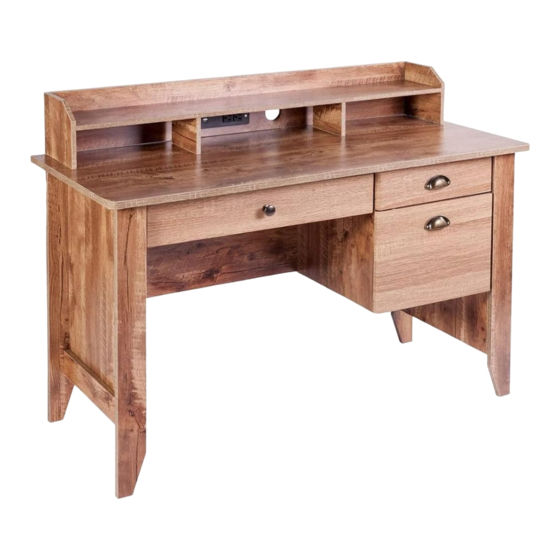

Eleanor Executive Desk w/Hutch, USB & Charger Hub, Classic Oak
CUSTOMER SERVICE
For fastest service on claims, requests for replacment parts,
or questions, please visit our website at:
www.comfortproducts.net/support
e-mail: customerservice@comfortproducts.net
Keep your sales receipt as documentation of your ownership.
Advertisement
Related Manuals for Onespace 50-1617CO
Summary of Contents for Onespace 50-1617CO
- Page 1 ™ OneSpace is a Trademark of Comfort Products, Inc. ASSEMBLY INSTRUCTIONS MODEL 50-1617CO SUPPLIER CODE: SPRG Eleanor Executive Desk w/Hutch, USB & Charger Hub, Classic Oak CUSTOMER SERVICE For fastest service on claims, requests for replacment parts, or questions, please visit our website at: www.comfortproducts.net/support...
-
Page 2: Assembly Overview
ASSEMBLY OVERVIEW Hutch maximum weight capacity = 22 lbs Desktop maximum weight capacity = 132 lbs Drawers maximum weight capacity = 20 lbs 2 of 16... - Page 3 PARTS LIST 1 OF 3 (50-1617CO) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Left Corner 51-1617COA Board, Front 51-1617COB...
- Page 4 PARTS LIST 2 OF 3 (50-1617CO) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Desktop 51-1617CODT 51-1617COJ Hutch Back Hutch Shelf...
- Page 5 PARTS LIST 3 OF 3 (50-1617CO) THE PART NUMBER CAN BE FOUND ON THE SIDE OF THE PART, EITHER STAMPED OR ON A STICKER. ITEMS ARE NOT SHOWN TO SCALE. DESCRIPTION STOCK # QTY. Drawer Bottom A 51-1617COS 51-1617COT Small Drawer, Front Board �...
- Page 6 HARDWARE LIST (50-1617CO) EXTRA HARDWARE INCLUDED FOR YOUR CONVENIENCE. ITEMS ARE NOT SHOWN TO SCALE. HARDWARE KIT STOCK # 51-1617COHA PART DESCRIPTION QT Y. - READ THE INSTRUCTION MANUAL BEFORE ASSEMBLING. Bolt - REMOVE ALL PIECES BEFORE BEGINNING INSTALLATION. - OPEN THE HARDWARE AS NEEDED .
- Page 7 (50-1617CO) Insert twenty Dowels (C) into the boards shown below. Refer to the drawings for which holes in the rollers to use. DX12 7 of 16...
- Page 8 ASSEMBLY INSTRUCTIONS (50-1617CO) STEP 3 Fix eighteen Bolts (A) to the Boards shown below. A x 18 30 Right 30 Left STEP 4 Insert twelve Large Cams (B1) into the Left (2) and Right (6) Boards. Make sure the arrows are pointing toward the holes where the bolts go in.
- Page 9 ASSEMBLY INSTRUCTIONS (50-1617CO) Fix two Bolts (A) to the Back Board (8). Insert two Large Cams (B1) into the...
- Page 10 ASSEMBLY INSTRUCTIONS (50-1617CO) Fix ten Bolts (A) to the underside of the Desktop (11). shown. Align the Bolts in the Desktop (11) with the holes and the Dowels in the lower part of the desk. Lower the Desktop making sure all Bolts and...
- Page 11 ASSEMBLY INSTRUCTIONS (50-1617CO) STEP 9 Fix one Bolt (A) to the center of the Hutch Back (12). Insert the Grommet (J) into the round hole. Insert the USB, Charger Hub (29) into the opening and fasten it with two Screws (D).
- Page 12 ASSEMBLY INSTRUCTIONS (50-1617CO) Fix eight Bolts (A) to the Hutch Right (15) and Left (14) Boards. Insert eight Small Cams (B2) into the Hutch Back (12) and...
- Page 13 ASSEMBLY INSTRUCTIONS (50-1617CO) STEP 13 Fix two Bolts (A) to the Medium Drawer Front (17), four Bolts to the Large Drawer Front (25), and two Bolts to the Small Drawer Front (22). A x 8 STEP 14 Insert one Small Cam (B2) into the...
- Page 14 ASSEMBLY INSTRUCTIONS (50-1617CO) STEP 15 Insert one Small Cam (B2) into the Slide Drawer Bottom B (24) into the Attach a Large Handle (I) to the Drawer Right Board (19) and one grooves. Align the groove in the Drawer Front (22) using two into the Drawer Left Board (18).
- Page 15 ASSEMBLY INSTRUCTIONS (50-1617CO) Flip over the assembled drawer and attach a...
- Page 16 132 pounds, the weight capacity of the drawers is 20 pounds, and the weight capacity of the hutch is 22 pounds. For claims or questions concerning this warranty, please visit: www.comfortproducts.net or email us at: customerservice@comfortproducts.net MODEL: 50-1617CO Comfort Products, Inc. 122 Gayoso Avenue, Suite 101 Memphis, TN 38103 www.comfortproducts.net email: customerservice@comfortproducts.net ™ OneSpace is a Trademark of Comfort Products, Inc. 16 OF 16...
